Installation [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 1

  2. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. INSTALL FUEL INJECTOR SEAL

    Refer to PROCEDURE - Step 1

  5. INSTALL FUEL INJECTOR ASSEMBLY (for Direct Injection)

    Refer to PROCEDURE - Step 2

  6. INSTALL FUEL DELIVERY PIPE RH

    Refer to PROCEDURE - Step 3

  7. INSTALL FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  8. INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  9. TEMPORARILY INSTALL FUEL PUMP ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. TEMPORARILY INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  11. INSTALL FUEL PUMP ASSEMBLY

    Refer to PROCEDURE - Step 3

  12. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  13. INSTALL INTAKE MANIFOLD

    Refer to PROCEDURE - Step 1

  14. INSTALL FUEL INJECTOR ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 1

  15. INSTALL FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  16. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 3

  17. INSTALL WIRE HARNESS CLAMP BRACKET

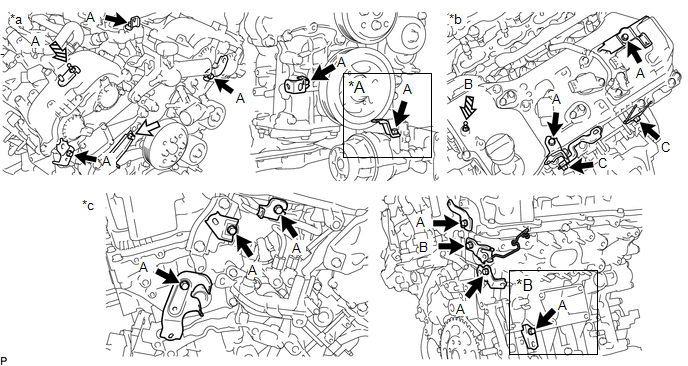

    GTY781911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for 2WD *B for AWD
    *a Front Side *b Upper Side
    *c Rear Side - -
    Bolt Nut
    V-bank Cover Bracket - -
    1. Install the wire harness clamp bracket with the V-bank cover bracket (A).

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Install the V-bank cover bracket (B).

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Install the wire harness clamp bracket with the nut.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    4. for 2WD
      1. Install the 15 wire harness clamp brackets with the 15 bolts.

        Bolt (A)

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        Bolt (B)

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

        Bolt (C)

        Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

    5. for AWD
      1. Install the 15 wire harness clamp brackets with the 15 bolts.

        Bolt (A)

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        Bolt (B)

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

        Bolt (C)

        Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

  18. INSTALL NO. 11 WATER BY-PASS HOSE
    1. Install the No. 11 water by-pass hose to the No. 1 water outlet pipe and slide the clip to secure it.
  19. INSTALL NO. 10 WATER BY-PASS HOSE
    1. Install the No. 10 water by-pass hose to the rear water by-pass joint and slide the clip to secure it.
  20. INSTALL NO. 2 WATER BY-PASS PIPE
    1. Install the No. 2 water by-pass pipe and slide the 2 clips to secure them.
    2. Install the bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  21. INSTALL WATER INLET CAP (for 2WD)
    1. Install the water inlet cap to the water inlet sub-assembly and slide the clip to secure it.
  22. INSTALL WATER BY-PASS HOSE
    1. Install the water by-pass hose to the rear water by-pass joint and slide the clip to secure it.
  23. INSTALL NO. 2 WATER BY-PASS HOSE ASSEMBLY
    1. Install the No. 2 water by-pass hose assembly and slide the 2 clips to secure them.
    2. Engage the 3 clamps.
  24. INSTALL NO. 3 WATER BY-PASS HOSE
    1. Install the No. 3 water by-pass hose and slide the 2 clips to secure them.
  25. INSTALL NO. 2 WATER BY-PASS HOSE
    1. Install the No. 2 water by-pass hose and slide the 2 clips to secure them.
  26. INSTALL NO. 6 WATER BY-PASS HOSE
    1. Install the No. 6 water by-pass hose and slide the 2 clips to secure them.
  27. INSTALL ENGINE WIRE
    1. Install the engine wire to the engine assembly.
  28. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY
    1. Install the V-ribbed belt tensioner assembly with the 2 bolts.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  29. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Install the No. 2 idler pulley sub-assembly with the bolt.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  30. INSTALL NO. 1 COMPRESSOR MOUNTING BRACKET
    1. Install the No. 1 compressor mounting bracket with the 2 bolts.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  31. INSTALL COMPRESSOR AND MAGNETIC CLUTCH

    for 2WD: Refer to PROCEDURE - Step 2 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 09/2022] , or refer to PROCEDURE - Step 3 [09/2022 - ]

    for AWD: Refer to PROCEDURE - Step 5 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 5 [09/2020 - ]

  32. INSTALL GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  33. INSTALL V-RIBBED BELT

    Refer to PROCEDURE - Step 1

  34. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Install the front No. 1 engine mounting bracket LH with the 4 bolts.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

    2. Engage the 2 clamps.
  35. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Install the front No. 1 engine mounting bracket RH with the 4 bolts.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  36. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 7
