Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN COOLANT (for Intercooler)

    See step  1

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1 [04/2013 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - ]

  3. REMOVE FRONT BUMPER ASSEMBLY
  4. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 2 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 2 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - ]

  5. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 4 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - ]

  6. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2019] , or refer to PROCEDURE - Step 5 [09/2019 - 09/2020] , or refer to PROCEDURE - Step 5 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 5 [11/2021 - ]

  7. DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY

    Refer to PROCEDURE - Step 8

  8. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 7 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2019] , or refer to PROCEDURE - Step 6 [09/2019 - 09/2020] , or refer to PROCEDURE - Step 6 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - ]

  9. DISCONNECT ENGINE ROOM MAIN WIRE

    Refer to PROCEDURE - Step 10

  10. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  11. DISCONNECT LIQUID TUBE SUB-ASSEMBLY A

    Refer to PROCEDURE - Step 11 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 10 [10/2016 - 09/2022] , or refer to PROCEDURE - Step 11 [09/2022 - ]

  12. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

    Refer to PROCEDURE - Step 12 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 11 [10/2016 - 09/2022] , or refer to PROCEDURE - Step 12 [09/2022 - ]

  13. DISCONNECT NO. 1 INTERCOOLER COOLING WATER HOSE

    Refer to PROCEDURE - Step 13 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 12 [10/2016 - 09/2022] , or refer to PROCEDURE - Step 13 [09/2022 - ]

  14. DISCONNECT NO. 7 INTERCOOLER COOLING WATER HOSE

    Refer to PROCEDURE - Step 14 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 13 [10/2016 - 09/2022] , or refer to PROCEDURE - Step 14 [09/2022 - ]

  15. REMOVE COOLER CONDENSER ASSEMBLY WITH INTERCOOLER COOLING RADIATOR ASSEMBLY

    Refer to PROCEDURE - Step 15 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 14 [10/2016 - 09/2022] , or refer to PROCEDURE - Step 15 [09/2022 - ]

  16. REMOVE COOLER CONDENSER ASSEMBLY

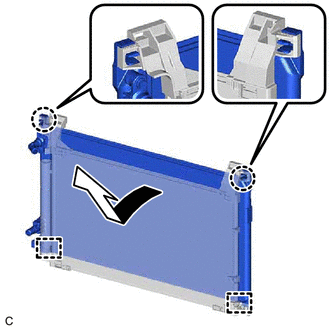

    1. Disengage the 2 claws.
      GTY654570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the cooler condenser assembly from the intercooler cooling radiator assembly as shown in the illustration.
      NOTE:

      Do not damage the cooler condenser assembly or intercooler cooling radiator assembly when removing the cooler condenser assembly.
