Removal [04/2013 - 10/2016]: Procedure

For Standard: Refer to REMOVAL [04/2013 - 10/2016]

For Sport Package: Refer to REMOVAL [04/2013 - 10/2016]

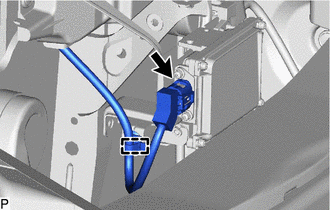

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the clamp.

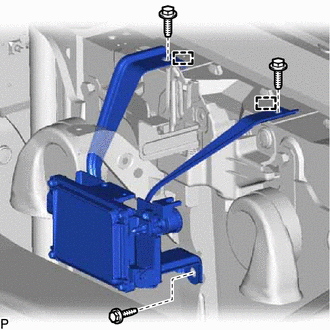

3. Remove the 3 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Disengage the 2 guides to remove the millimeter wave radar sensor assembly.
