Home >> Lexus >> 2016 >> GX 460 Base >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim (Service Information) >> Roof Headlining >> Removal [08/2015 - 08/2016] >> Procedure

Removal [08/2015 - 08/2016]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).

  3. REMOVE REAR NO. 2 SEAT ASSEMBLY

    for Manual Seat:

    (Refer to REMOVAL [08/2015 - ] )

    for Power Seat:

    (Refer to REMOVAL [08/2015 - ] )

  4. REMOVE REAR NO. 1 SEAT ASSEMBLY

    for LH Side:

    (Refer to REMOVAL [08/2015 - 08/2016] )

    for RH Side:

    (Refer to REMOVAL [08/2015 - 08/2016] )

  5. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

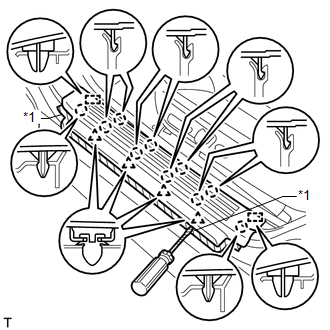

    GTY644880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the door scuff plate assembly LH.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a screwdriver, detach the 4 clips, 10 claws and 2 guides and remove the door scuff plate assembly LH.

      HINT:

      Tape the screwdriver tip before use.

    3. w/ Illumination:

      Disconnect the connector.

  6. REMOVE DOOR SCUFF PLATE ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  7. REMOVE COWL SIDE TRIM BOARD LH
    GTY227336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the clip.
    2. Detach the clip and claw and remove the cowl side trim board LH.
  8. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    GTY275912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the front door opening trim weatherstrip LH.
  10. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

  11. REMOVE FRONT NO. 1 ASSIST GRIP PLUG LH
    GTY259442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other front No. 1 assist grip plug.

    1. Using a screwdriver, detach the 2 claws and remove the front No. 1 assist grip plug LH.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  12. REMOVE FRONT NO. 1 ASSIST GRIP PLUG RH

    HINT:

    Use the same procedure described for the LH side.

  13. REMOVE NO. 1 ASSIST GRIP
    GTY275903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other No. 1 assist grip.

    1. Remove the 2 bolts.
    2. Detach the 2 claws and remove the No. 1 assist grip.
  14. REMOVE FRONT PILLAR GARNISH LH
    GTY286580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 3 guides and remove the front pillar garnish LH.

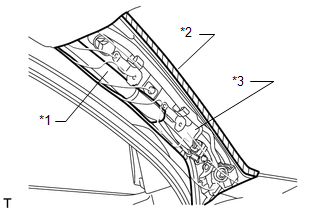

    2. GTY275383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Protect the curtain shield airbag assembly.

      1. Completely cover the curtain shield airbag assembly with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag assembly with a protective cover as soon as the front pillar garnish LH is removed.

        TEXT IN ILLUSTRATION

        *1 Curtain Shield Airbag Assembly
        *2 Adhesive Tape
        *3 Protective Cover
  15. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  16. REMOVE REAR NO. 1 FLOOR STEP COVER

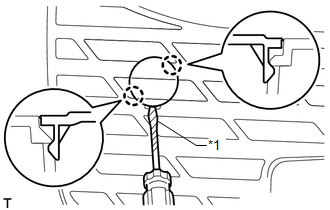

    GTY631067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for all rear No. 1 floor step covers.

    1. Using a screwdriver, detach the 2 claws and remove the rear No. 1 floor step cover.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  17. REMOVE QUARTER SCUFF PLATE LH
    GTY227337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and quarter scuff plate LH.
  18. REMOVE QUARTER SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  19. REMOVE REAR DOOR SCUFF PLATE LH

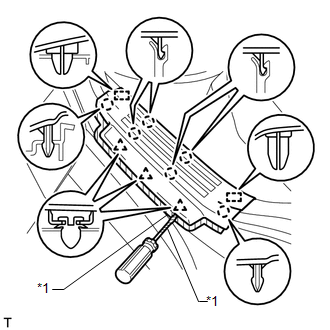

    GTY254288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the rear door scuff plate LH.
    2. Using a screwdriver, detach the 3 clips, 6 claws and 2 guides and remove the rear door scuff plate LH.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  20. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  21. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    GTY275918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the rear door opening trim weatherstrip LH.

      HINT:

      Remove any remaining sealer from the vehicle body.

  22. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

  23. REMOVE OUTER LAP BELT ANCHOR COVER
    GTY227335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other outer lap belt anchor cover.

    1. Detach the 3 claws and remove the outer lap belt anchor cover.
  24. REMOVE LOWER CENTER PILLAR GARNISH LH
    GTY649139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and disconnect the front seat outer belt floor anchor.
    2. GTY680579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 4 claws and 2 clips and remove the lower center pillar garnish LH.

  25. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  26. REMOVE NO. 2 ASSIST GRIP PLUG LH
    GTY633951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other front No. 2 assist grip plug LH.

    1. Using a screwdriver, detach the 2 claws and remove the front No. 2 assist grip plug LH.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  27. REMOVE NO. 2 ASSIST GRIP PLUG RH

    HINT:

    Use the same procedure described for the LH side.

  28. REMOVE NO. 2 ASSIST GRIP
    GTY286577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other No. 2 assist grip.

    1. Remove the 2 bolts.
    2. Detach the 2 claws and remove the No. 2 assist grip.
  29. REMOVE CENTER PILLAR GARNISH LH
    GTY286576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Move the front shoulder belt anchor adjuster to the lowest position.
    2. Remove the bolt.
    3. Detach the 2 clips and 2 guides and remove the center pillar garnish LH.
    4. Pass the front seat outer belt floor anchor through the hole of the center pillar garnish LH.
  30. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  31. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
    1. Remove the tonneau cover assembly.
  32. REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER
    GTY275910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other rear No. 1 seat outer lap belt anchor cover.

    1. Detach the 3 claws and remove the rear No. 1 seat outer lap belt anchor cover.
  33. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
    GTY240898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other No. 1 luggage compartment trim hook.

    1. Remove the luggage compartment trim hook by turning it clockwise.
  34. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover)
    GTY266667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other No. 1 tonneau cover holder cap.

    1. Using a screwdriver, detach the 2 claws and remove the No. 1 tonneau cover holder cap.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  35. REMOVE FRONT DECK SIDE TRIM COVER (w/ Tonneau Cover)
    GTY220675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other front deck side trim cover.

    1. Using a screwdriver, detach the 2 claws and remove the front deck side trim cover.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  36. REMOVE ASSIST GRIP PLUG
    GTY636297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for all assist grip plugs.

    1. Using a screwdriver, detach the 2 claws and remove the assist grip plug.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  37. REMOVE ASSIST GRIP SUB-ASSEMBLY
    GTY275899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other assist grip sub-assemblies.

    1. Remove the 2 bolts and assist grip sub-assembly.
  38. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.
      GTY649193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.
      GTY286579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and 2 screws.
    4. Detach the 3 clips and 8 claws and remove the deck trim side panel LH.
    5. Disconnect each connector.
      GTY624379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.
      GTY347967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.
      GTY274836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and screw.
    4. Detach the 3 clips and 8 claws and remove the deck trim side panel RH.
    5. Disconnect each connector.
      GTY259819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
    GTY275904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Move the rear shoulder belt anchor adjuster to the lowest position.
    2. Detach the 2 clips and 2 guides and remove the front quarter trim panel assembly LH.
    3. Pass the rear No. 1 seat outer belt floor anchor through the hole of the front quarter trim panel assembly LH.
  41. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  42. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY LH
    1. Detach the 7 clips and 2 guides and remove the rear quarter trim panel assembly LH.
      GTY259820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Detach the 4 clips and 2 guides and disconnect the rear No. 2 seat outer belt assembly LH.
      GTY275905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  44. REMOVE ASSIST GRIP SUB-ASSEMBLY
    GTY259887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other assist grip sub-assemblies.

    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Detach the 2 clips and remove the assist grip sub-assembly.
    3. Remove the 2 clips from the vehicle body.
  45. REMOVE REAR ASSIST GRIP ASSEMBLY LH

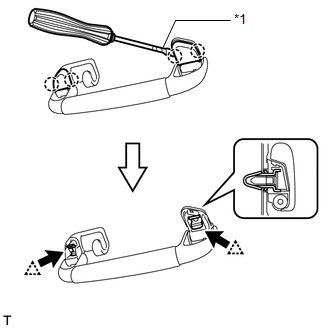

    GTY281368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Detach the 2 clips and remove the assist grip assembly LH.
    3. Remove the 2 clips from the vehicle body.
  46. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  47. REMOVE ASSIST GRIP
    GTY263947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other assist grip.

    1. Using a screwdriver, detach the 4 claws and open the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. GTY275901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and assist grip.

  48. REMOVE VISOR BRACKET COVER
    GTY228375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other visor bracket cover.

    1. Detach the 4 claws and remove the visor bracket cover.
  49. REMOVE VISOR ASSEMBLY LH
    GTY228377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and visor assembly LH.
  50. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  51. REMOVE VISOR HOLDER
    GTY466536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other visor holder.

    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
      TEXT IN ILLUSTRATION

      *a 45°
    2. Detach the 2 claws and remove the visor holder.
  52. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  53. REMOVE FRONT ROOF TOP GARNISH (w/ Lane Departure Alert System)

    Refer to PROCEDURE - Step 2

  54. REMOVE RAIN SENSOR COVER

    Refer to PROCEDURE - Step 1

  55. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER

    w/o Automatic High Beam System:

    (Refer to PROCEDURE - Step 1 )

    w/ Automatic High Beam System:

    (Refer to PROCEDURE - Step 3 )

  56. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

    for Center:

    (Refer to PROCEDURE - Step 1 )

    for Rear:

    (Refer to PROCEDURE - Step 1 )

  57. REMOVE REAR SIDE NO. 1 AIR DUCT (w/ Rear Air Conditioning System)

    Refer to PROCEDURE - Step 24

  58. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disconnect the connector.
      GTY393393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
      GTY613381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.
      GTY286587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Lane Departure Alert System:

      Disconnect the connector and detach the wire harness clamp.

      GTY260511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the 3 connectors and detach the 3 wire harness clamps from the front pillar LH.
      GTY459996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

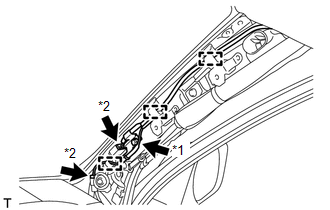

    6. Remove the bolt.
      TEXT IN ILLUSTRATION

      *1 Bolt
      *2 Connector
      GTY652060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disconnect the 2 connectors and detach the 3 wire harness clamps from the front pillar RH.
    8. GTY275931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the 2 connectors and detach the wire harness clamp from the rear pillar LH.

    9. GTY275927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector and detach the 3 wire harness clamps from the rear pillar RH.

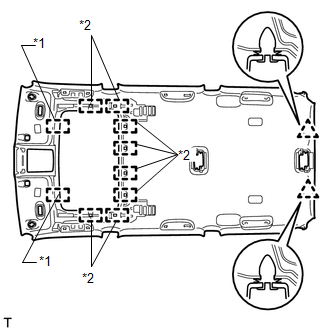

    10. GTY679566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 clips, 2 guides and 8 fasteners.

      TEXT IN ILLUSTRATION

      *1 Guide
      *2 Fastener
    11. GTY260510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector.

    12. GTY260509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the roof headlining from the back door as shown in the illustration.

      NOTE:

      Be careful not to damage the roof headlining when removing it.

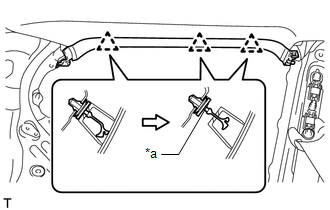

  59. REMOVE NO. 1 ROOF SIDE RAIL GARNISH LH
    GTY277678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 3 clips.
    2. Cut off the 3 clips and remove the roof side rail garnish LH.
      TEXT IN ILLUSTRATION

      *a Cut Off Position
    3. Remove the 3 clips from the vehicle body.
  60. REMOVE NO. 1 ROOF SIDE RAIL GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  61. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
    GTY275961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Slide the front shoulder belt anchor plate sub-assembly to detach the 5 claws and remove it.
  62. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  63. REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
    GTY275958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Slide the rear shoulder belt anchor plate sub-assembly to detach the 6 claws and remove it.
  64. REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  65. REMOVE REAR SEAT SHOULDER BELT HANGER LH
    GTY227362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the claw and guide and remove the rear seat shoulder belt hanger LH.
  66. REMOVE REAR SEAT SHOULDER BELT HANGER RH

    HINT:

    Use the same procedure described for the LH side.

  67. REMOVE QUARTER TRIM COVER
    GTY275937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for the other quarter trim cover.

    1. Detach the 2 claws and remove the quarter trim cover.
  68. REMOVE QUARTER TRIM JACK COVER
    GTY275936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 3 claws and 2 guides and remove the quarter trim jack cover.
  69. REMOVE DECK SIDE TRIM COVER LH
    GTY286594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 3 claws and 2 guides and remove the deck side trim cover LH.
scientia non olet · About LEMON Manuals
