Removal [08/2015 - 08/2019]: Procedure

Refer to PROCEDURE - Step 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

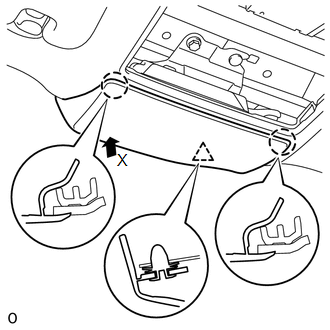

1. Detach the clip and 2 claws and remove the front roof top garnish.
   NOTE:

   When removing the front roof top garnish, do not apply force to the lane recognition camera sensor assembly area labeled "X".

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 1

NOTE:

Do not apply force to the lane recognition camera sensor assembly area labeled "X".

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

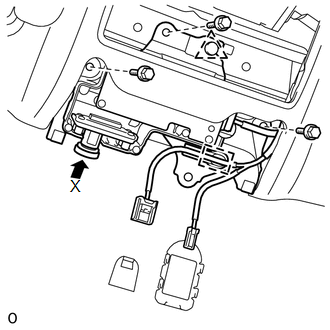

1. Disconnect all the connectors.
2. Detach the clamp.
3. Remove the 3 bolts.
4. Detach the clip and remove the lane recognition camera sensor assembly.
5. Remove the roof side inner garnish clip from the lane recognition camera sensor assembly.
   NOTE:

   When removing the roof side inner garnish clip, replace it with a new one.
