Removal [08/2014 - ]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  2. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 11

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  4. REMOVE LIGHT CONTROL RHEOSTAT

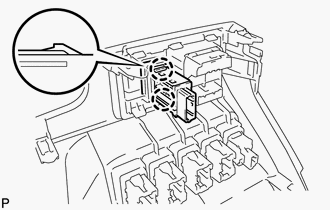

    1. Disengage the 2 claws and remove the light control rheostat.
      GTY350384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
