Removal [08/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (See article. Refer to PRECAUTION [08/2014 - ] ).

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 1

  3. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 2

  4. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  5. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 4

  6. REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE

    Refer to PROCEDURE - Step 5

  7. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [08/2014 - 08/2015] Refer to INITIALIZATION [08/2015 - ] ).

  8. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

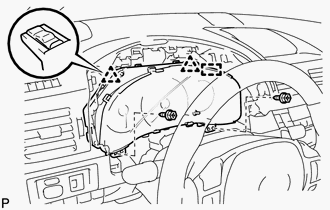

  9. REMOVE COMBINATION METER ASSEMBLY
    1. Disengage the clamp.
      GTY350382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Disengage the 2 clips.
    4. Disconnect the connector and remove the combination meter assembly.
