Installation [04/2013 - ]: Procedure

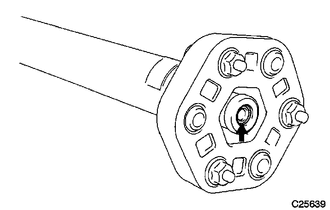

1. Apply grease to the flexible coupling centering bushings.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Grease

   Molybdenum disulphide lithium base NLGI No. 2

2. Completely remove any oil and other foreign matter and clean the contact surfaces of the rear drive pinion companion flange and propeller with center bearing shaft assembly.
3. Remove SST from the transmission.
4. Insert the yoke of the propeller with center bearing shaft assembly into the transmission.
   NOTE:

   Be careful not to damage the transfer case oil seal.

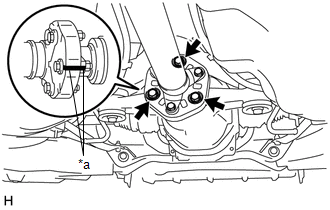

5. Align the matchmarks on the rear drive pinion companion flange and propeller with center bearing shaft assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

6. Install the 3 bolts, 3 washers and 3 nuts.

   Torque: 79 N.m (806 kgf/cm, 58 ft.lbf)

   NOTE:

   Be careful not to damage the flexible coupling centering bushings.

   HINT:

   The bolts should be installed from the propeller intermediate shaft assembly side.

7. Temporarily install the 2 bolts with the 2 adjusting washers.

   HINT:

   Use the adjusting washers which were removed.

8. Adjust the distance (A) between the surface of the center support bearing and the surface of the cushion to 11.5 to 13.5 mm (0.453 to 0.531 in.) as shown in illustration.

   Distance (A)

   11.5 to 13.5 mm (0.453 to 0.531 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   90°

9. Check that the center line of the bracket is at a right angle to the shaft axial direction.
10. Tighten the 2 bolts.

    Torque: 49.1 N.m (501 kgf/cm, 36 ft.lbf)

HINT:

If any vibration or noise occurs, perform the joint angle check as follows and replace the adjusting washers with a proper one.

1. Stabilize the propeller shaft and differential.
   1. Turn the propeller shaft several times by hand to stabilize the center support bearing.
   2. Using a jack, raise and lower the differential to stabilize the differential mounting cushion.
2. Check the No. 2 and No. 3 joint angles.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   No. 2 Joint Angle

   *b

   No. 3 Joint Angle

   1. Using SST, measure the installation angle of the propeller intermediate shaft assembly and propeller shaft assembly.
      • SST: 09370-50010

      HINT:

      SST should be set directly underneath the shaft.

   2. Using SST, measure the installation angle of the differential.
      • SST: 09370-50010

      HINT:

      Measure the installation angle by placing SST in the positions shown in the illustration.

   3. Calculate the No. 2 joint angle.

      No. 2 Joint Angle

      Measurement Position	No. 2 Joint Angle
      A-B	-0°10' +/- 30'

   4. Calculate the No. 3 joint angle.

      No. 3 Joint Angle

      Measurement Position	No. 3 Joint Angle
      B-C	1°49' +/- 32'

      If the measured angle is not within the specified range, adjust it with adjusting washers.

3. Adjust the No. 2 joint angle.
   1. Select adjusting washers for adjustment.

      Adjusting Washer

      Part No.	Thickness mm (in.)
      90201-10106	2.0 mm (0.0787 in.)
      90201-10008	4.5 mm (0.177 in.)
      90201-10033	6.5 mm (0.256 in.)
      90201-10017	9.0 mm (0.354 in.)
      90201-10034	11.0 mm (0.433 in.)

      NOTE:

      • Make sure to use a washer of the same thickness on both the right and left sides.
      • Do not use more than one adjusting washer on a bolt.

1. Install the No. 1 fuel tank protector with the 4 nuts and tighten the nuts in the order shown in the illustration.
   Fig 1: Fuel Tank Protector Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

1. Install the front No. 1 floor heat insulator with the 4 nuts.

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 4 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - ]
