Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [09/2020 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1
REMOVE ENGINE UNDER COVER
Refer to PROCEDURE - Step 10
DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 3
REMOVE V-RIBBED BELT
Refer to REMOVAL [11/2021 - ]
DISCONNECT NO. 2 RADIATOR HOSE
Refer to PROCEDURE - Step 13

REMOVE GENERATOR ASSEMBLY

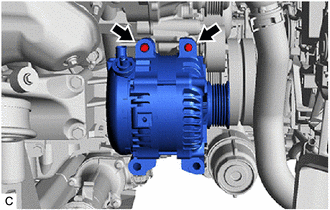

Disengage the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Engine Wire

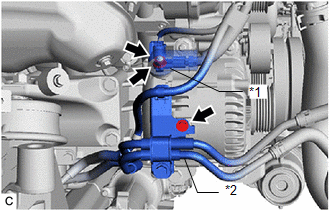

Remove the bolt and disconnect the engine wire.

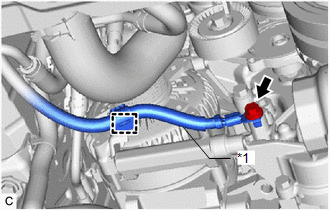

Open the terminal cap.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Terminal Cap
*2	Oil Cooler Tube

Remove the nut and disconnect the engine wire from terminal B.
Disconnect the generator assembly connector.
Remove the bolt and disconnect the oil cooler tube.

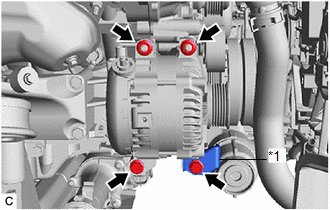

Remove the 2 bolts, 2 nuts and engine wire bracket.

*1	Engine Wire Bracket

Using an E8 "TORX" socket wrench, remove the 2 stud bolts and generator assembly.
