Removal [04/2013 - 09/2018]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

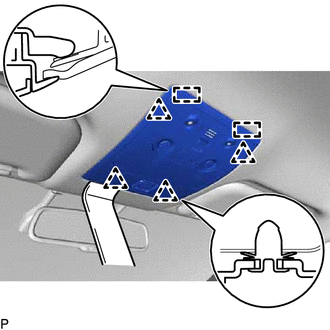

    1. Using a moulding remover, disengage the 4 clips and 2 guides.
      GTY461666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the map light assembly.
  2. REMOVE OUTER ROOM LIGHT LENS

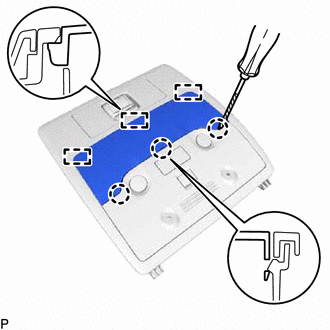

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws and 3 guides to remove the outer room light lens from the map light sub-assembly.
      GTY462606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
  3. REMOVE MAP LIGHT BULB

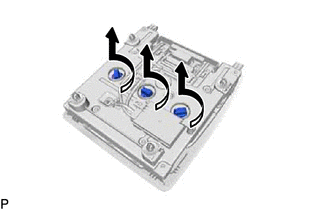

    1. Turn the 3 map light sockets with the 3 map light bulbs as shown in the illustration to remove them as a unit.
      GTY461668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 map light bulbs from the 3 map light sockets.
  4. REMOVE TELEPHONE MICROPHONE ASSEMBLY

    Refer to PROCEDURE - Step 2
