Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE SPOT LIGHT ASSEMBLY

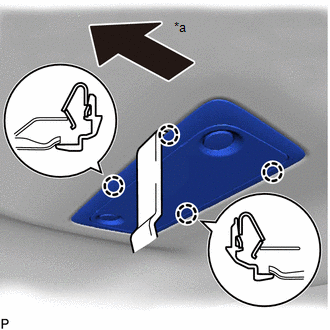

    1. Using a moulding remover, disengage the 4 claws.
      GTY465827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front
    2. Disconnect the connector to remove the spot light assembly.
  2. REMOVE SPOT LIGHT BULB

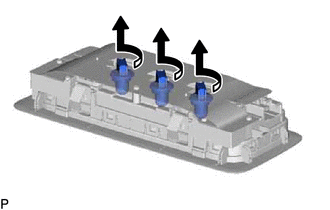

    1. Turn the 3 spot light sockets with the 3 spot light bulbs as shown in the illustration to remove them as a unit.
      GTY461672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 spot light bulbs from the 3 spot light sockets.
