Removal [11/2021 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  3. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  4. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
      GTY810465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR
    1. except 2UR-GSE:

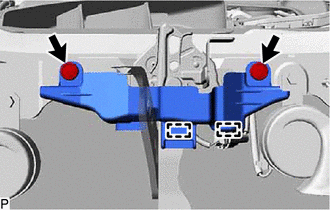

      1. Remove the 2 clips.
        GTY1082924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 clamps to remove the hood lock release lever protector.
    2. for 2UR-GSE:

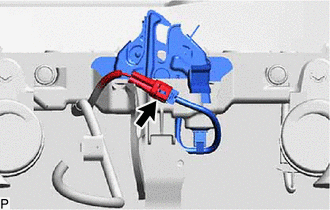

      1. Disconnect the connector.
        GTY1082927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

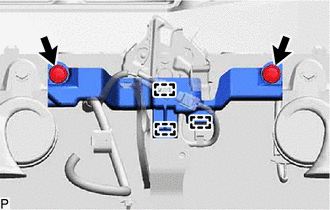

      2. Remove the 2 clips.
        GTY1082926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the 3 clamps to remove the hood lock release lever protector.
  6. REMOVE HOOD LOCK ASSEMBLY
    1. except 2UR-GSE:
      1. Disconnect the connector.
        GTY966448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 3 bolts.
    2. for 2UR-GSE:

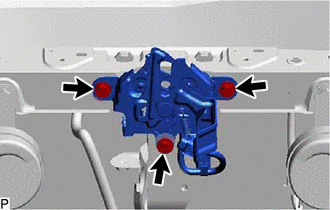

      1. Remove the 3 bolts.
        GTY1082931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the hood lock control cable assembly to remove the hood lock assembly.
      GTY966449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE UPPER FRONT FENDER PROTECTOR

    Refer to PROCEDURE - Step 2

  8. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Tie a string to the end of the hood lock control cable assembly.
      GTY949694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a length of string long enough to pass through the engine compartment.

    2. Pull out the hood lock control cable assembly from the grommet as shown in the illustration.

      HINT:

      Leave the string inside the grommet.

      GTY966320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly
      *2 Grommet
    3. Disconnect the string from the hood lock control cable assembly.
    4. except 2UR-GSE:
      1. Using a screwdriver, disengage the 5 clamps as shown in the illustration.
        GTY967175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Hood Lock Control Cable Assembly *2 Clamp

        HINT:

        Tape the screwdriver tip before use.

      2. Pull the hood lock control cable assembly from the engine compartment to remove it.
    5. for 2UR-GSE:

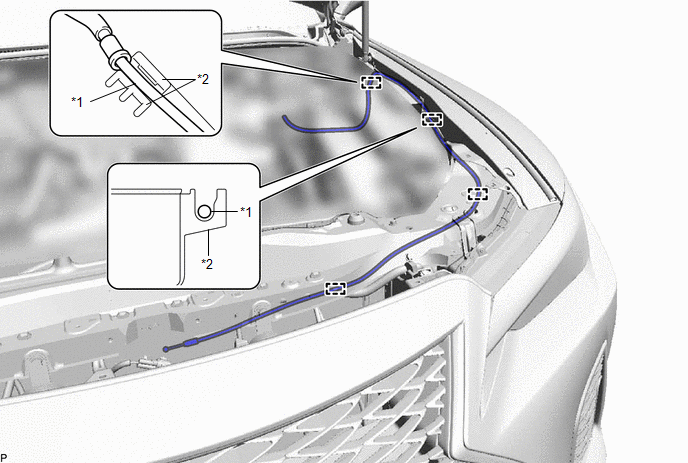

      1. Using a screwdriver, disengage the 4 clamps as shown in the illustration.
        GTY1082780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Hood Lock Control Cable Assembly *2 Clamp

        HINT:

        Tape the screwdriver tip before use.

      2. Pull the hood lock control cable assembly from the engine compartment to remove it.
