Removal [09/2020 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    for Standard: Refer to REMOVAL [09/2020 - ]

    for Sport Package: Refer to REMOVAL [09/2020 - ]

  2. REMOVE UPPER FRONT FENDER PROTECTOR

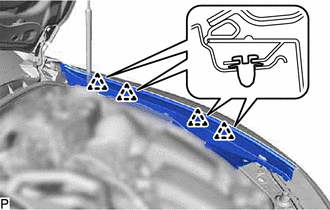

    1. Disengage the 4 clips to remove the upper front fender protector.
      GTY970716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HEADLIGHT ASSEMBLY

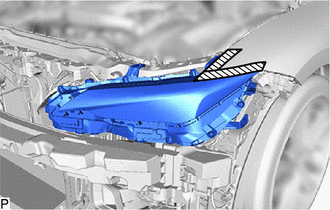

    1. Apply protective tape around the headlight assembly as shown in the illustration.
      GTY971218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

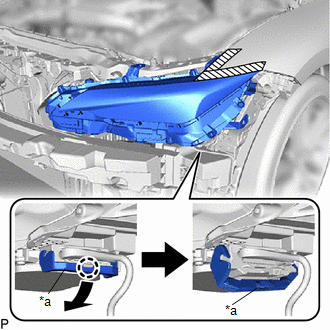

    2. Disengage the claw and pull down the connector lock lever to disconnect the connector as shown in the illustration.
      GTY971191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector Lock Lever
    3. Remove the 2 bolts and 3 screws.
      GTY970953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Screw

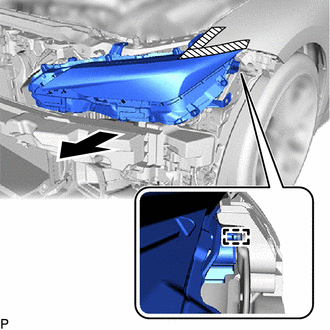

    4. Disengage the guide to remove the headlight assembly as shown in the illustration.
      GTY970711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
