Removal [09/2020 - 11/2021]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 9

Refer to PROCEDURE - Step 10

1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 clamps to remove the hood lock release lever protector.

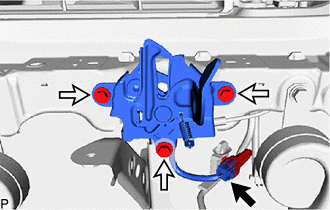

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 3 bolts.

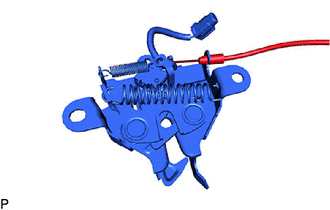

3. Disconnect the hood lock control cable assembly to remove the hood lock assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2

1. Tie a string to the end of the hood lock control cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use a length of string long enough to pass through the engine compartment.

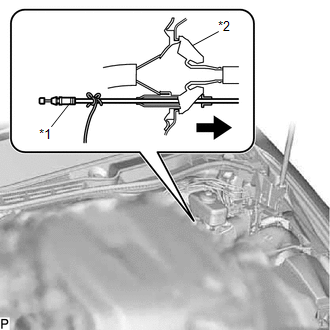

2. Pull out the hood lock control cable assembly from the grommet as shown in the illustration.

   HINT:

   Leave the string inside the grommet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Hood Lock Control Cable Assembly
   *2	Grommet

3. Disconnect the string from the hood lock control cable assembly.

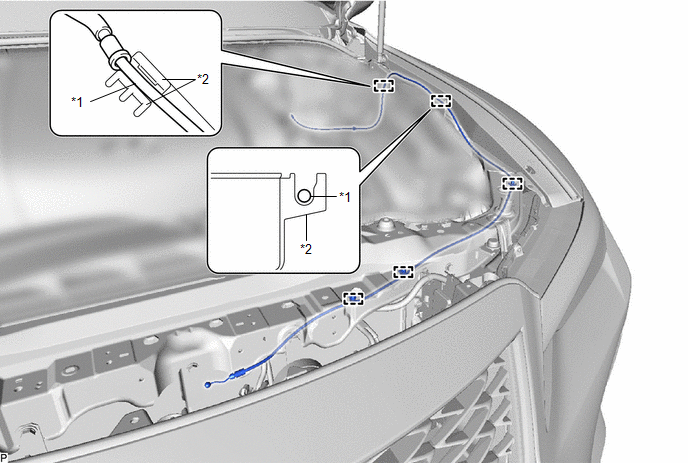

4. Using a screwdriver, disengage the 5 clamps as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Hood Lock Control Cable Assembly

   *2

   Clamp

   HINT:

   Tape the screwdriver tip before use.

5. Pull the hood lock control cable assembly from the engine compartment to remove it.
