Removal [09/2020 - ]: Procedure

PRECAUTION
NOTE:
- After performing any of the following procedures, the navigation system may restart after turning the ignition switch to ACC for the first time (due to radio receiver assembly and navigation ECU certification).
  - Disconnecting and reconnecting the cable from the negative (-) terminal of the battery, replacing the battery, or recharging the battery after being discharged.
  - Removing and installing or replacing the radio receiver assembly or navigation ECU.
- After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio receiver assembly.
Refer to PRECAUTION [09/2020 - ]
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]
REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 2 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - ]
REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 3 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - ]
REMOVE FRONT PANEL GARNISH LH
Refer to PROCEDURE - Step 4 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - ]
REMOVE FRONT PANEL GARNISH RH
Refer to PROCEDURE - Step 5 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 5 [11/2021 - ]
REMOVE CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - ]
REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 9

REMOVE NO. 1 NAVIGATION WIRE

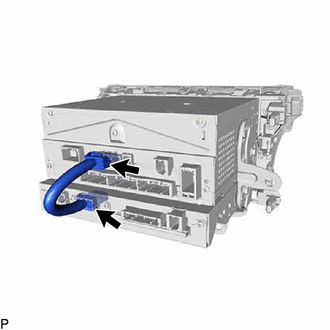

Disconnect the 2 connectors to remove the No. 1 navigation wire.

REMOVE NO. 1 RADIO BRACKET
Refer to PROCEDURE - Step 11
REMOVE NO. 2 RADIO BRACKET
Refer to PROCEDURE - Step 12
REMOVE RADIO RECEIVER ASSEMBLY
REMOVE NAVIGATION ECU
