Removal [11/2021 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

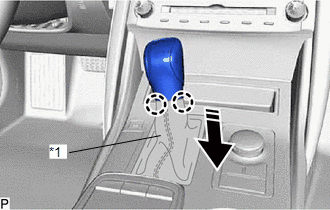

    1. Disengage the 2 claws and disconnect the shift hole cover sub-assembly as shown in the illustration.
      GTY967190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Shift Hole Cover Sub-assembly
      Remove in this Direction

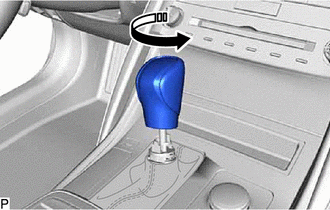

    2. Turn the shift lever knob sub-assembly counterclockwise as shown in the illustration and remove it.
      GTY967460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

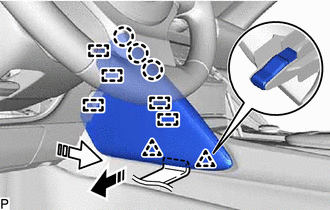

    1. Using a moulding remover, disengage the 2 clips in the direction indicated by the arrow (1) in the illustration.
      GTY967729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the instrument panel finish panel end LH in the direction indicated by the arrow (2) in the illustration to disengage the 3 claws and 5 guides to remove the instrument panel finish panel end LH.
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

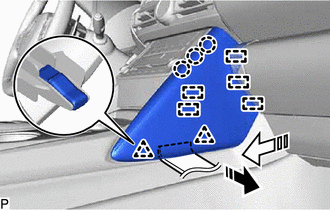

    1. Using a moulding remover, disengage the 2 clips in the direction indicated by the arrow (1) in the illustration.
      GTY967680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the instrument panel finish panel end RH in the direction indicated by the arrow (2) in the illustration to disengage the 3 claws and 5 guides to remove the instrument panel finish panel end RH.

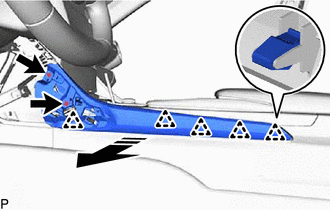

  4. REMOVE FRONT PANEL GARNISH LH
    1. Remove the 2 screws.
      GTY967043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 5 clips to remove the front panel garnish LH as shown in the illustration.
  5. REMOVE FRONT PANEL GARNISH RH

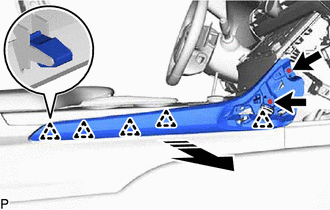

    1. Remove the 2 screws.
      GTY967285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 5 clips to remove the front panel garnish RH as shown in the illustration.
  6. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

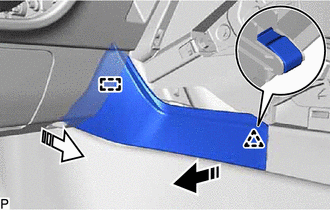

    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.
      GTY967156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the front No. 1 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 1 console box insert.
  7. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

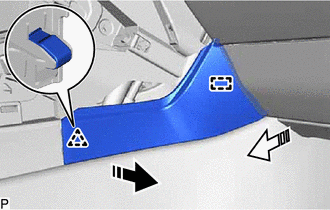

    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.
      GTY967430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the front No. 2 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 2 console box insert.
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY
    1. Move the shift lever to N.

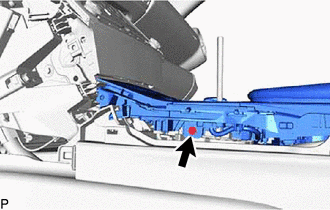

    2. Remove the screw.
      GTY966926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

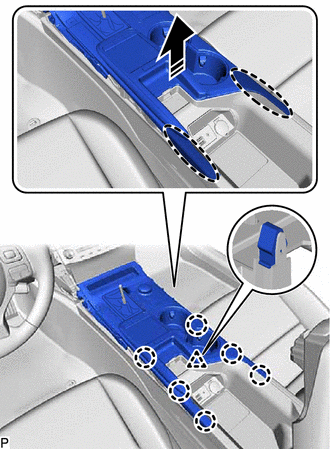

    3. Disengage the 6 claws and clip as shown in the illustration.
      GTY966789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

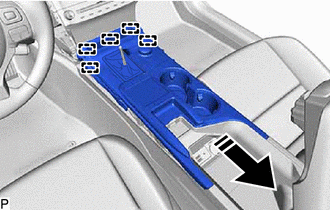

    4. Disengage the 5 guides as shown in the illustration.
      GTY967446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

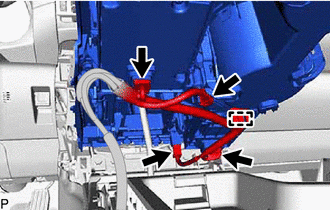

    5. Disengage the clamp.
      GTY966611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect each connector to remove the console panel sub-assembly.
  9. REMOVE COMBINATION SWITCH ASSEMBLY

    for A760H:

    Refer to PROCEDURE - Step 7

    for AA81E:

    Refer to PROCEDURE - Step 7

    for AA80E:

    Refer to PROCEDURE - Step 2

  10. REMOVE CONSOLE BOX CUP HOLDER ASSEMBLY

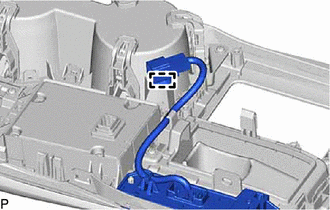

    1. Disengage the clamp.
      GTY967193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

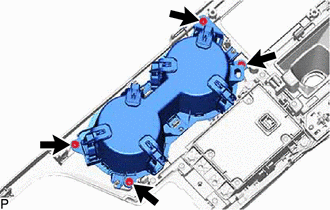

    2. Remove the 4 screws.
      GTY967200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

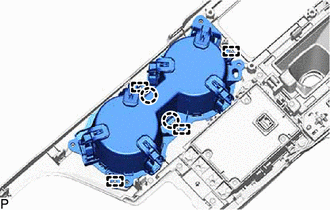

    3. Disengage the 2 claws and 4 guides to remove the console box cup holder assembly.
      GTY967198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CONSOLE BOX REGISTER ASSEMBLY

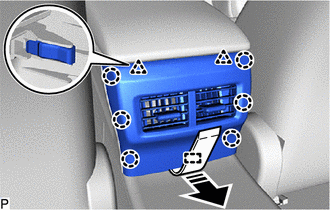

    1. Using a moulding remover, disengage the 6 claws, 2 clips and guide to remove the console box register assembly as shown in the illustration.
      GTY967668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  12. REMOVE CONSOLE BOX ASSEMBLY

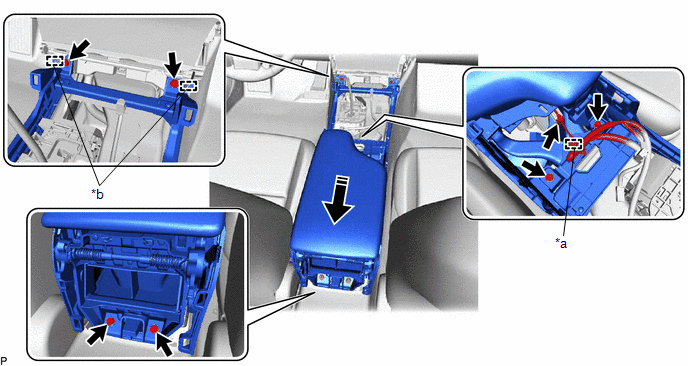

    1. Disconnect the connector and disengage the clamp.
      GTY967813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Guide
      Remove in this Direction - -
    2. Remove the 6 bolts.
    3. Disengage the 2 guides as shown in the illustration.

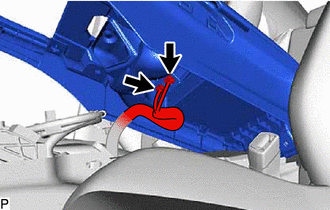

    4. Disconnect the 2 connectors to remove the console box assembly.
      GTY966616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
