Removal [10/2016 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2016 - 10/2017] , or refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]

  4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 2 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - ]

  5. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 3 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - ]

  6. REMOVE FRONT PANEL GARNISH LH

    Refer to PROCEDURE - Step 4 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - ]

  7. REMOVE FRONT PANEL GARNISH RH

    Refer to PROCEDURE - Step 5 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 5 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 5 [11/2021 - ]

  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - ]

  9. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    See step  9 [04/2013 - 09/2020], or see step  9 [09/2020 - ]

  10. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX

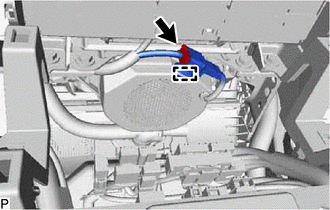

    1. Disconnect the connector.
      GTY495310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

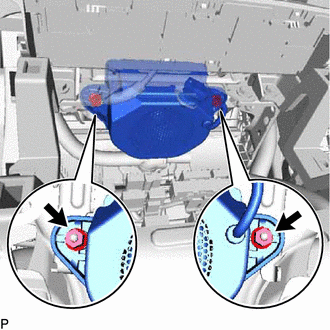

    3. Remove the 2 nuts and No. 1 speaker assembly with box.
      GTY495311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
