Removal [10/2016 - 09/2020]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

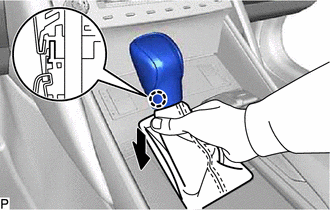

    1. Disengage the claw and disconnect the shift hole cover sub-assembly as shown in the illustration.
      GTY684648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

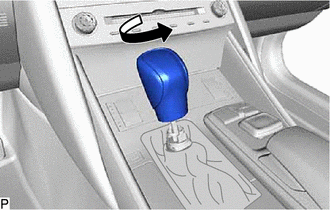

    2. Turn the shift lever knob sub-assembly counterclockwise and remove it.
      GTY667539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

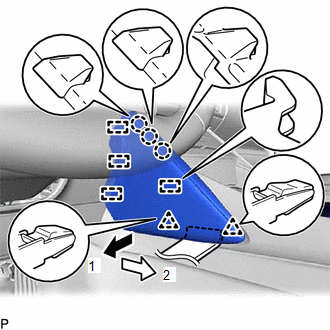

    1. Using a moulding remover, disengage the 2 clips and 3 claws in the direction indicated by the arrow (1) in the illustration.
      GTY651670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the instrument panel finish panel end LH in the direction indicated by the arrow (2) in the illustration to disengage the 4 guides to remove the instrument panel finish panel end LH.
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

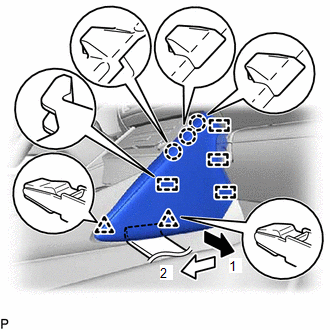

    1. Using a moulding remover, disengage the 2 clips and 3 claws in the direction indicated by the arrow (1) in the illustration.
      GTY683992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the instrument panel finish panel end RH in the direction indicated by the arrow (2) in the illustration to disengage the 4 guides to remove the instrument panel finish panel end RH.
  4. REMOVE FRONT PANEL GARNISH LH
    1. Remove the 2 screws.
      GTY470256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips to remove the front panel garnish LH.
  5. REMOVE FRONT PANEL GARNISH RH
    1. Remove the 2 screws.
      GTY464097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips to remove the front panel garnish RH.
  6. REMOVE FRONT NO. 1 CONSOLE BOX INSERT
    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.
      GTY467066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front No. 1 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 1 console box insert.
  7. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.
      GTY459632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front No. 2 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 2 console box insert.
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY
    1. Remove the screw.
      GTY470258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to N.

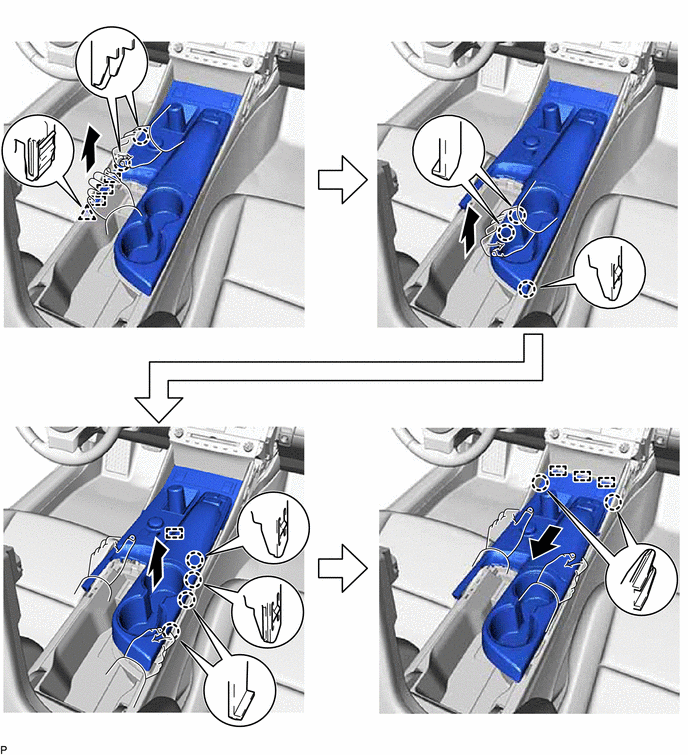

    3. Disengage the 11 claws, clip and 7 guides as shown in the illustration.
      GTY665733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the console panel sub-assembly.
  9. REMOVE LEXUS DISPLAY AUDIO CONTROLLER (for Radio and Display Type)

    Refer to PROCEDURE - Step 7

  10. REMOVE REMOTE TOUCH (for Multi-Media Module Receiver Type)

    Refer to PROCEDURE - Step 7

  11. REMOVE INSTRUMENT PANEL CUP HOLDER

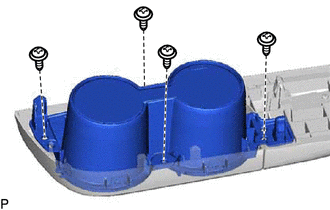

    1. Remove the 4 screws and instrument panel cup holder.
      GTY665732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Using a moulding remover, disengage the 6 claws, 2 clips and guide and remove the console box register assembly as shown in the illustration.
      GTY464081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CONSOLE BOX ASSEMBLY
    1. Disconnect each connector.
    2. Remove the 6 bolts.
      GTY464080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the rear part of the console box assembly as shown in the illustration to disengage the 2 guides and remove the console box assembly.
      GTY464079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
