Removal [08/2012 - ]
- PRECAUTION
Refer to PRECAUTION [08/2012 - ]
NOTE: After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work. Refer to PRECAUTION [08/2012 - ] . - ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

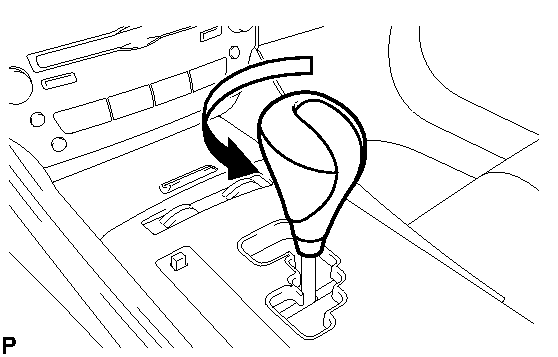

- Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
- REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

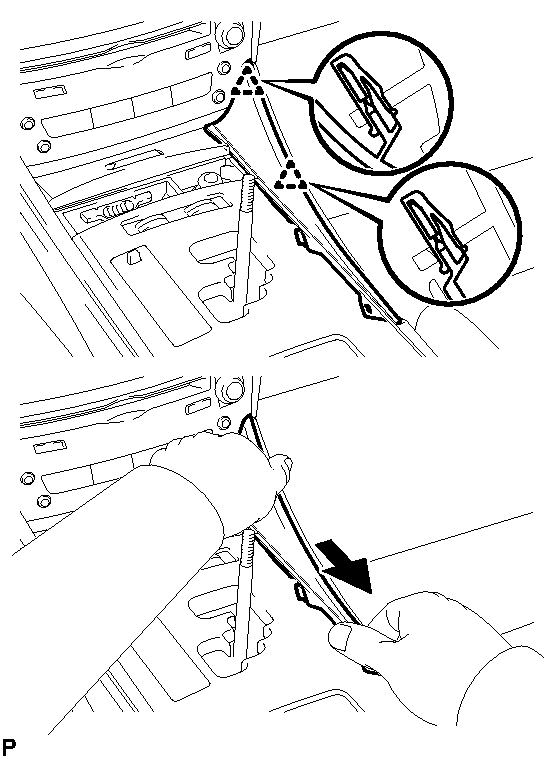

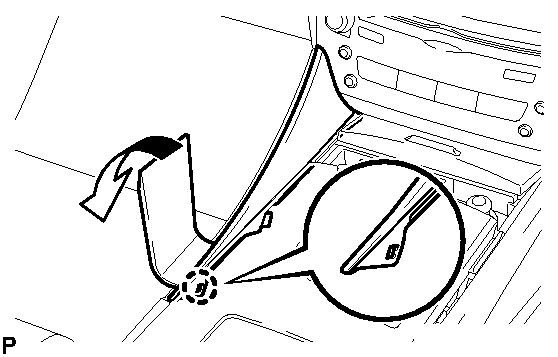

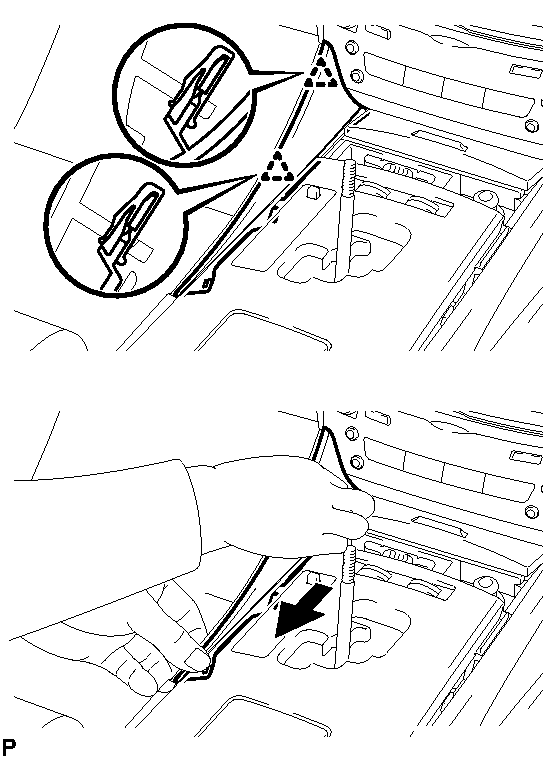

- Using a molding remover, disengage the claw as shown.
- Pull the upper No. 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove the upper No. 1 console panel garnish.
- REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

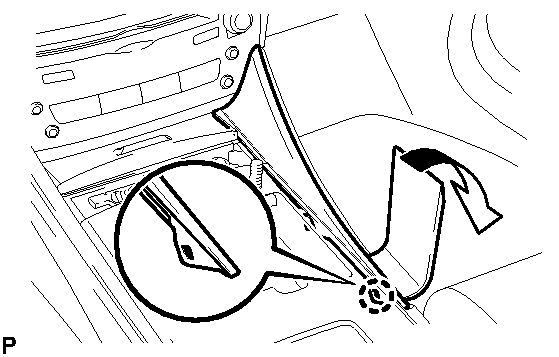

- Using a molding remover, disengage the claw as shown.
- Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove the upper No. 2 console panel garnish.
- REMOVE CONSOLE PANEL SUB-ASSEMBLY

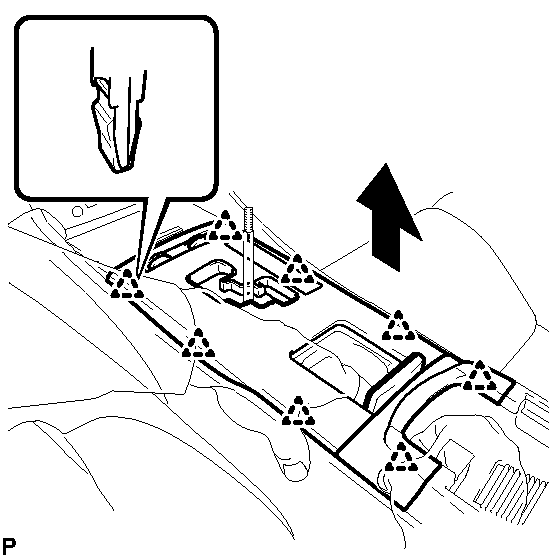

- Pull the console panel sub-assembly in the direction indicated by the arrow to disengage the 8 clips
- Disconnect the connectors and remove the console panel sub-assembly.
- REMOVE INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray)

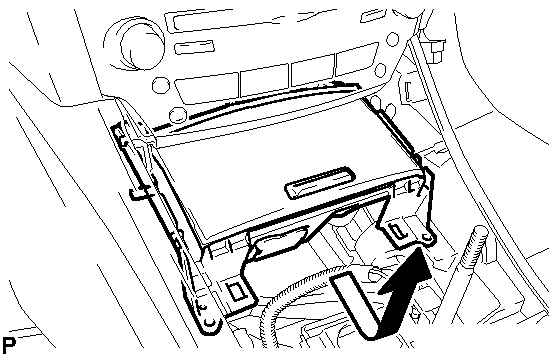

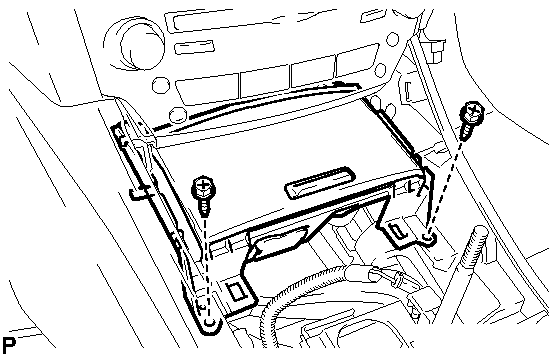

- Remove the 2 screws <F>.

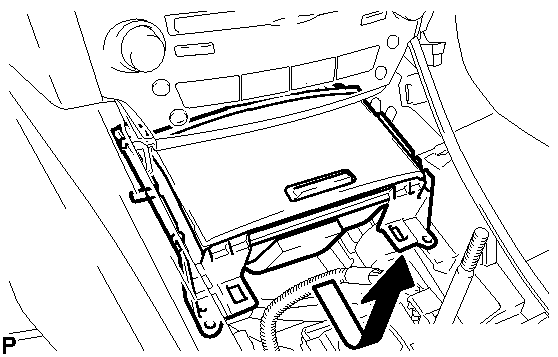

- Pull the instrument panel box assembly in the direction indicated by the arrow, disconnect the connector and remove the instrument panel box assembly.
- REMOVE FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray)

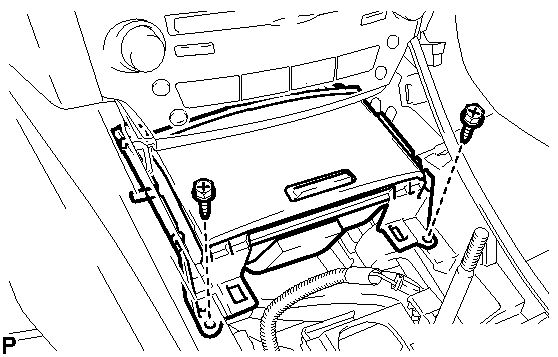

- Remove the 2 screws <F>.
- Pull the front ash receptacle box sub-assembly in the direction indicated by the arrow, disconnect the connectors and remove the front ash receptacle box sub-assembly.
- REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray)

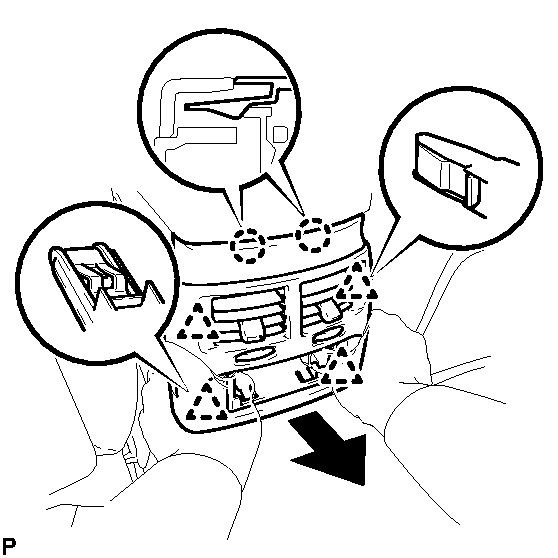

- Using a molding remover, disengage the 2 claws and 4 clips, and remove the console box register assembly.
- REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray)
- Remove the rear ash receptacle assembly.

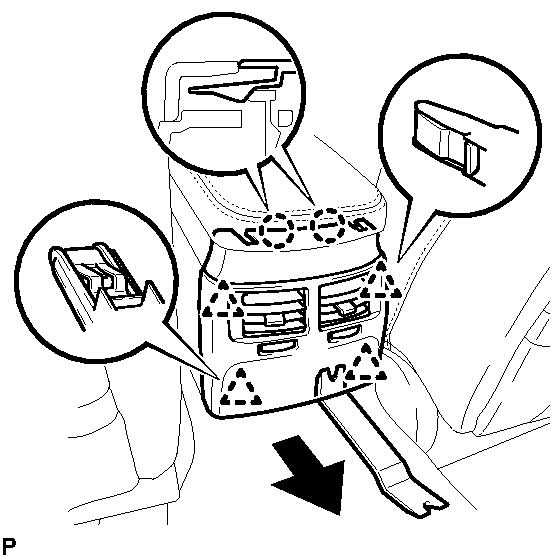

- Disengage the 2 claws and 4 clips to remove the console box register assembly.
- REMOVE CONSOLE BOX

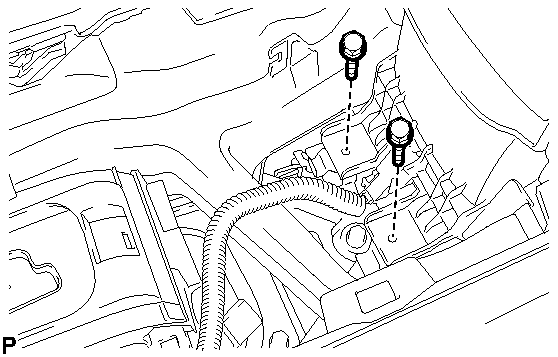

- Remove the 2 bolts <C>.

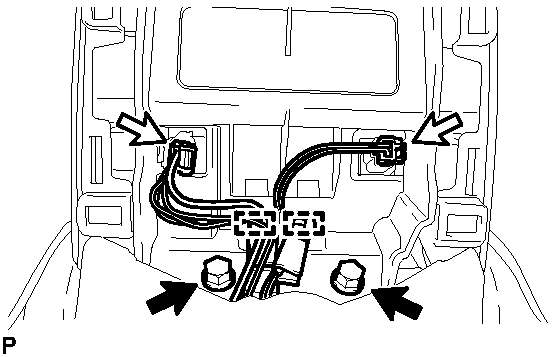

- Disconnect the 2 connectors.
- Disengage the 2 clamps.
- Remove the 2 bolts <C>.
- Remove the 2 bolts <C>.
- Disconnect each connector.

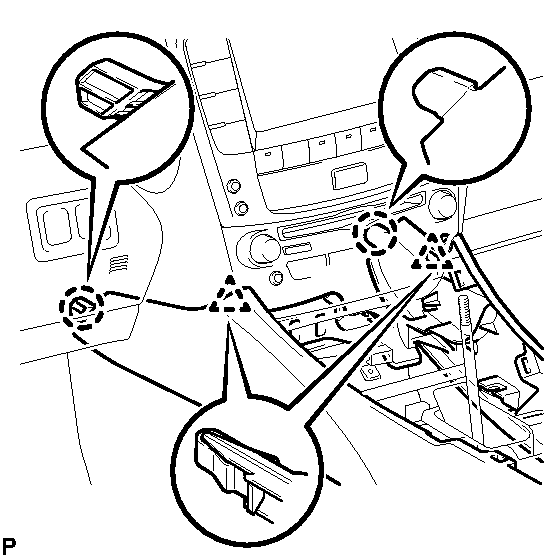

- Disengage the 2 claws and 2 clips, and then remove the console box.
- REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

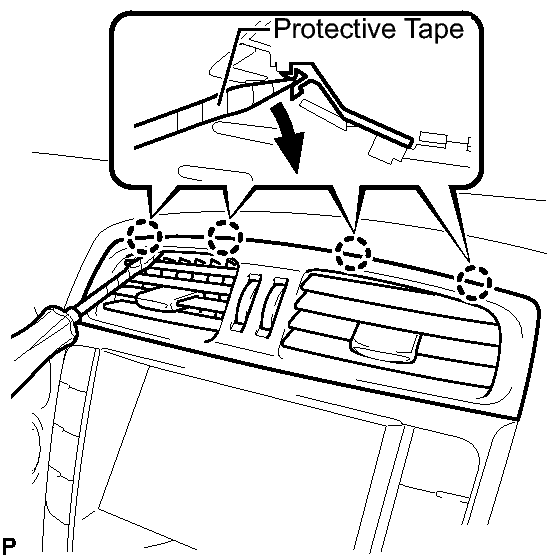

- Using a screwdriver, disengage the 4 claws.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
Tape the screwdriver tip before use.

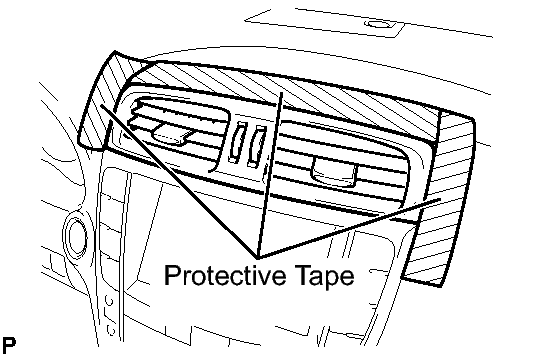

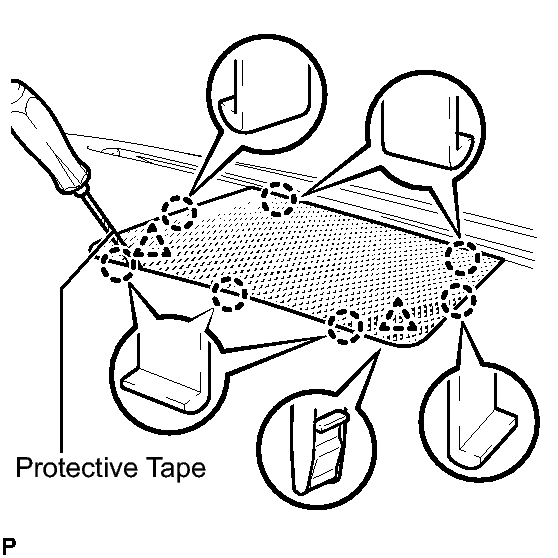

- Apply protective tape to the areas shown.

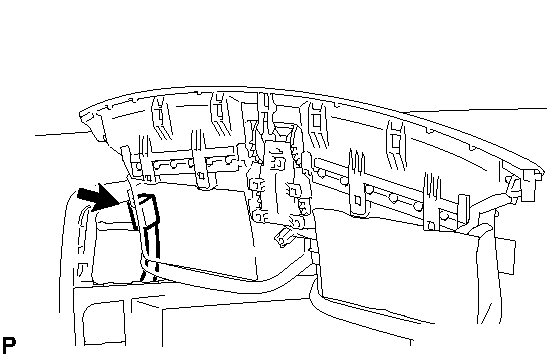

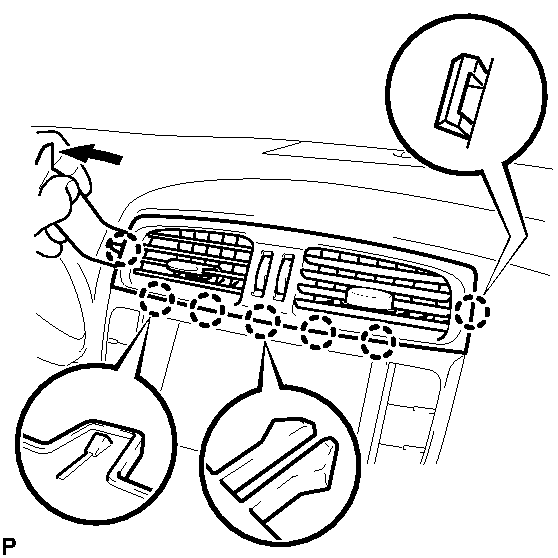

- Using a molding remover, disengage the 4 claws starting from the left of the No. 3 instrument panel register assembly. Disengage the remaining 3 claws by pulling the No. 3 instrument panel register assembly by hand.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Do not pry the lower part of the No. 3 instrument panel register assembly. Doing so may damage the assembly. - Disconnect the connector and remove the No. 3 instrument panel register assembly.
- Using a screwdriver, disengage the 4 claws.
- REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
- Disengage the 4 claws to remove the center lower instrument cluster finish panel.
- REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Multi-display) . Refer to REMOVAL [08/2012 - ] - Step 11
- REMOVE MULTIMEDIA MODULE RECEIVER ASSEMBLY WITH DISPLAY (w/ Multi-display) . Refer to REMOVAL [08/2012 - ] - Step 11
- REMOVE LOWER NO. 2 STEERING WHEEL COVER . Refer to REMOVAL [08/2012 - ] - Step 4
- REMOVE LOWER NO. 3 STEERING WHEEL COVER . Refer to REMOVAL [08/2012 - ] - Step 3
- REMOVE STEERING PAD . Refer to REMOVAL [08/2012 - ] - Step 5
- REMOVE STEERING WHEEL ASSEMBLY . Refer to REMOVAL [08/2012 - ] - Step 11
- REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column) . Refer to REMOVAL [08/2012 - ] - Step 12
- REMOVE STEERING COLUMN COVER (for Manual Tilt and Manual Telescopic Steering Column) . Refer to REMOVAL [08/2012 - ] - Step 12
- REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY . Refer to REMOVAL [08/2012 - ] - Step 13
- REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) . Refer to REMOVAL [08/2012 - ] - Step 49
- REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) . Refer to REMOVAL [08/2012 - ] - Step 51
- REMOVE FRONT DOOR OPENING TRIM COVER LH

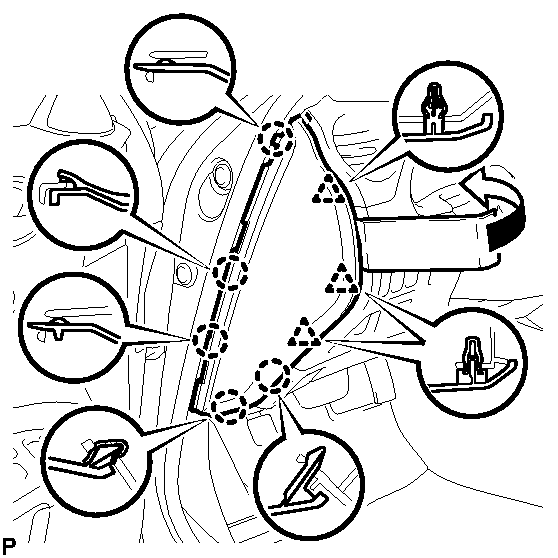

- Disengage the 6 claws to remove the front door opening trim cover LH.
- REMOVE SIDE INSTRUMENT PANEL LH

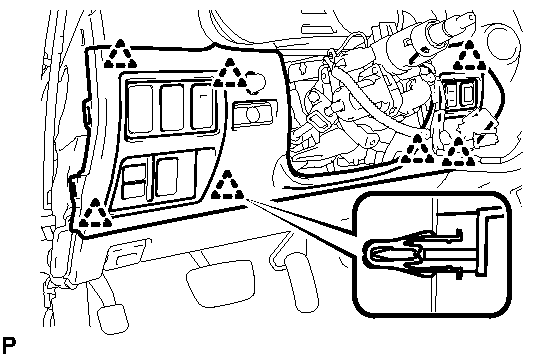

- Using a molding remover, disengage the 5 claws and 3 clips to remove the side instrument panel LH.
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

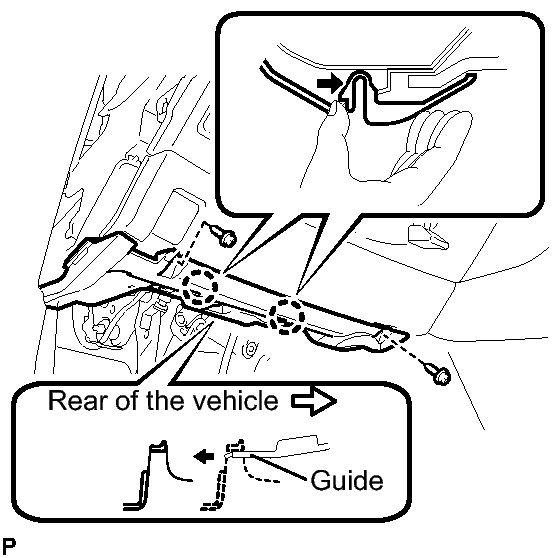

- Remove the 2 screws <E>.
- Push the 2 claws in the direction indicated by the arrow to disengage them.
- Remove the No. 1 instrument panel under cover sub-assembly from the guide as shown and pull the cover toward the rear of the vehicle.
- Disconnect the connectors and remove the No. 1 instrument panel under cover sub-assembly.
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
- Disengage the 7 clips.
- Disconnect the connectors and remove the lower instrument panel finish panel sub-assembly.
- REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY . Refer to REMOVAL [08/2012 - ] - Step 9
- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

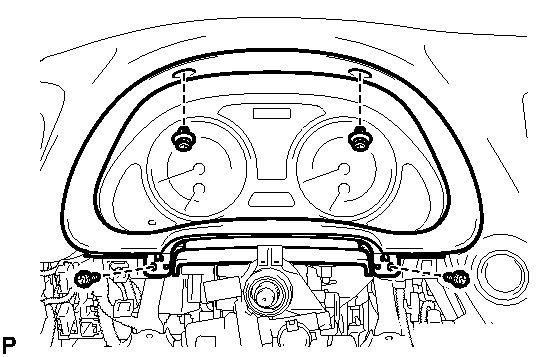

- Remove the 2 screws <G> and 2 clips, and then remove the instrument cluster finish panel sub-assembly.
- REMOVE COMBINATION METER ASSEMBLY

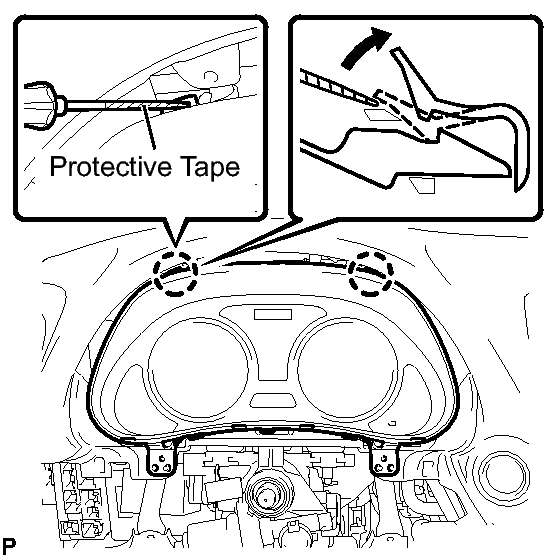

- Using a screwdriver, disengage the 2 claws.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connectors and remove the combination meter assembly.
- Using a screwdriver, disengage the 2 claws.
- REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT DOOR OPENING TRIM COVER RH

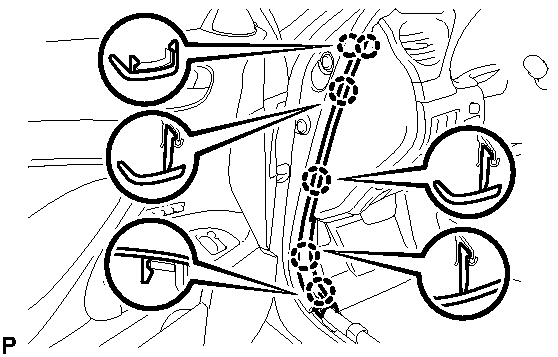

- Disengage the 6 claws to remove the front door opening trim cover RH.
- REMOVE SIDE INSTRUMENT PANEL RH

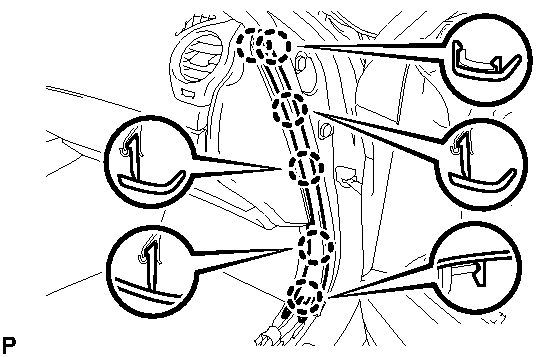

- Using a molding remover, disengage the 5 claws and 3 clips to remove the side instrument panel RH.
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- Using a molding remover, disengage the 4 clips and remove the No. 2 instrument panel under cover sub-assembly.
- REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY . Refer to REMOVAL [08/2012 - ] - Step 8
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

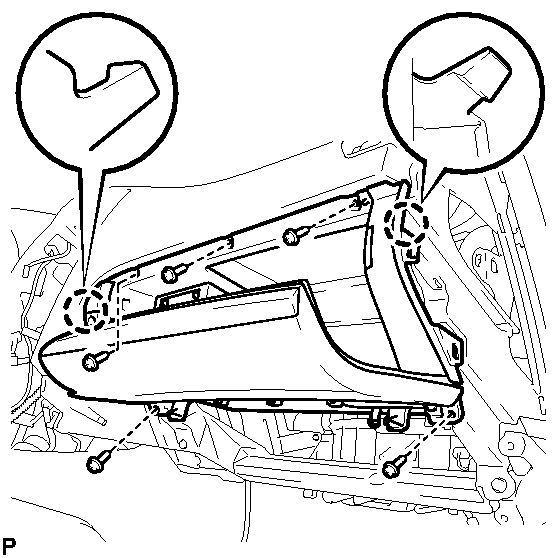

- Remove the 5 screws <E>.
- Disengage the 2 claws.
- Disconnect the connectors and remove the glove compartment door assembly.
- REMOVE POWER SOURCE CONTROL ECU

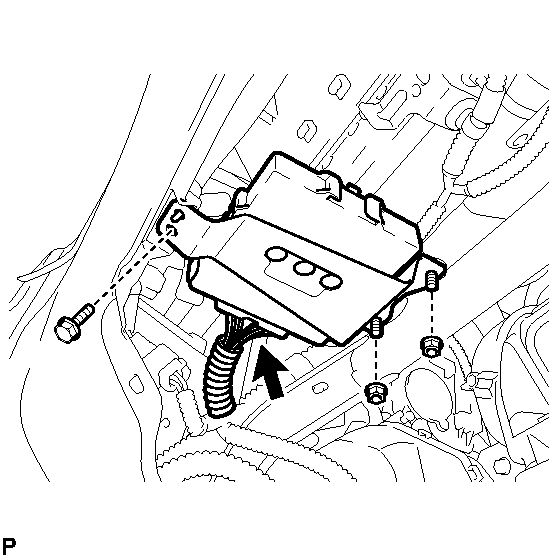

- Remove the bolt and 2 nuts.
- Disconnect the connector to remove the power source control ECU.
- REMOVE FRONT PILLAR GARNISH LH . Refer to REMOVAL [08/2012 - ] - Step 55
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

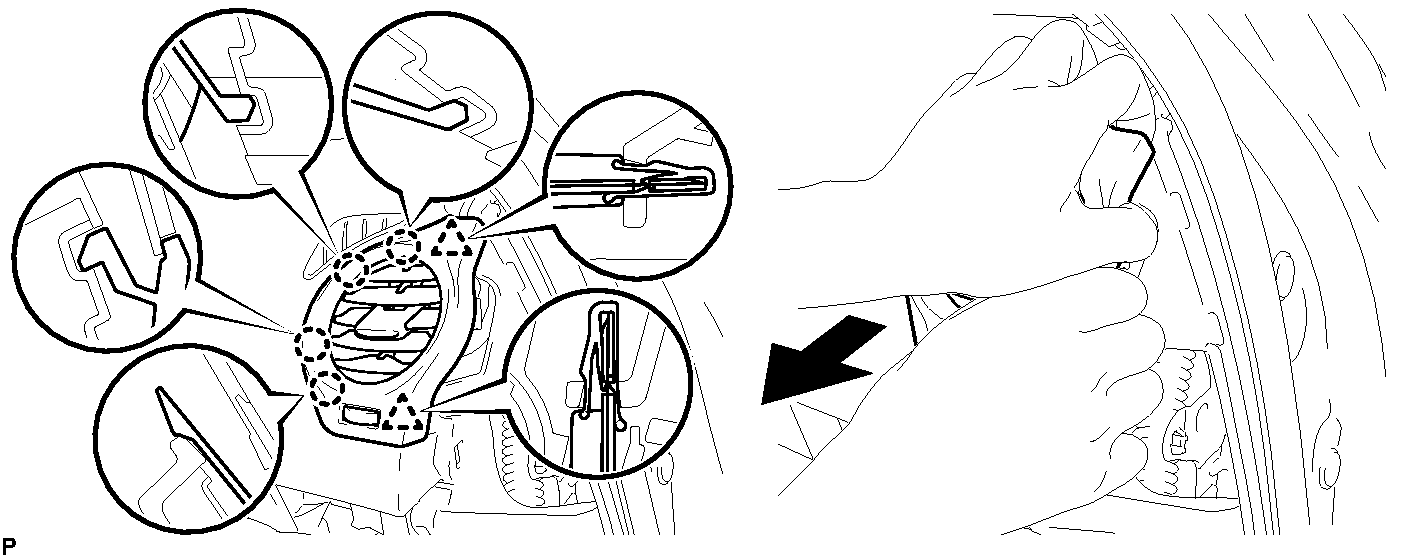

- Pull the No. 1 instrument panel register assembly in the direction indicated by the arrow to disengage the 7 claws and 2 clips, disconnect the connector and remove the No. 1 instrument panel register assembly.
- REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

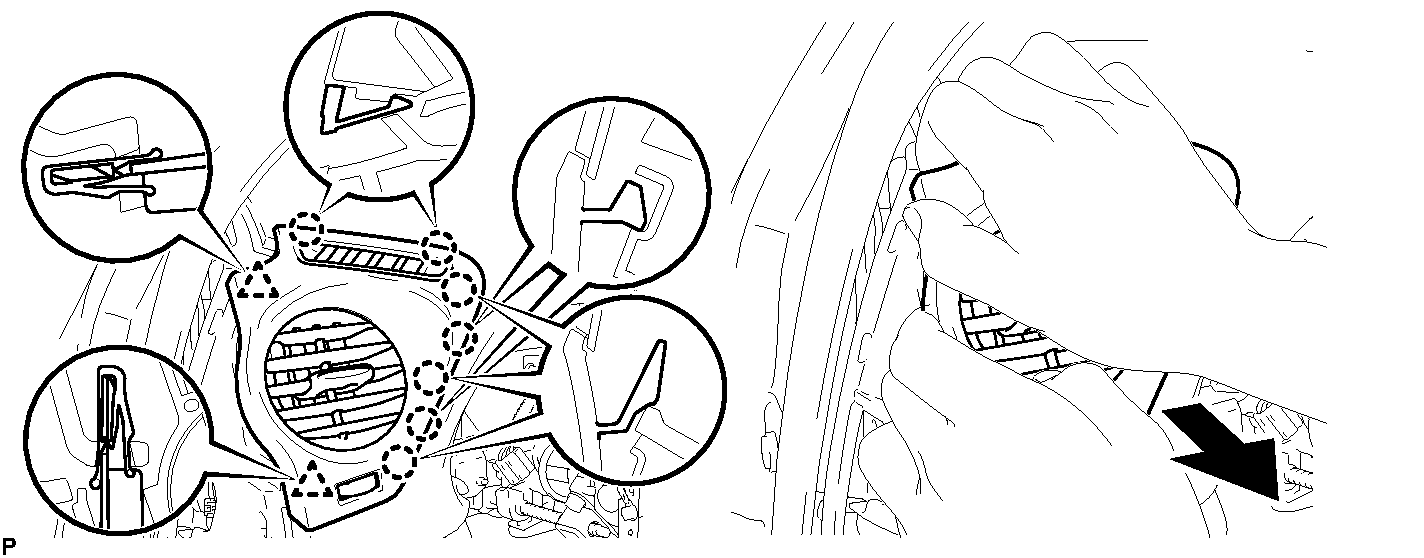

- Pull the No. 2 instrument panel register assembly in the direction indicated by the arrow to disengage the 4 claws and 2 clips, disconnect the connector and remove the No. 2 instrument panel register assembly.
- REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

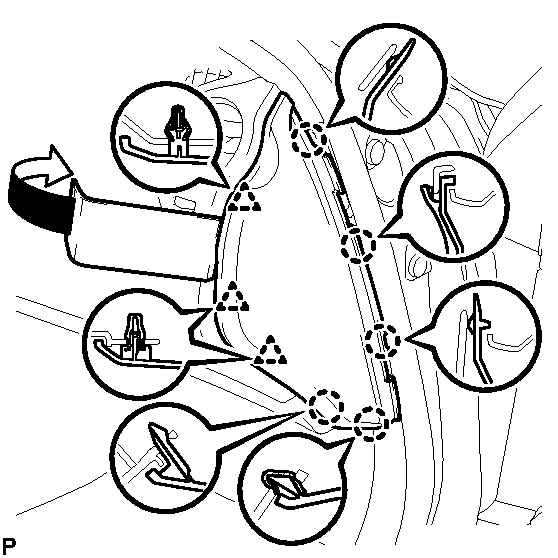

- Using a screwdriver, disengage the 7 claws and 2 clips, and remove the No. 3 instrument panel speaker panel sub-assembly.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, disengage the 7 claws and 2 clips, and remove the No. 3 instrument panel speaker panel sub-assembly.
- REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker) . Refer to REMOVAL [08/2012 - ] - Step 2
- REMOVE NO. 2 CONSOLE BOX DUCT

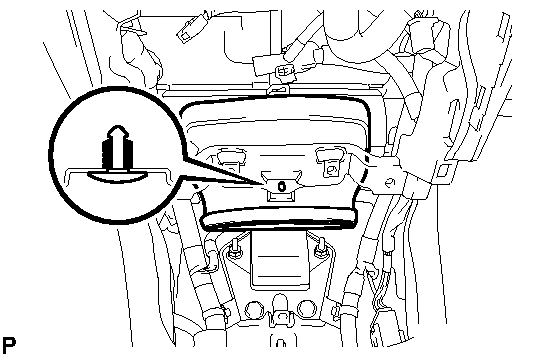

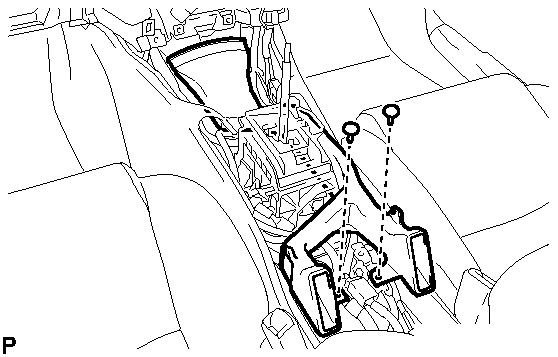

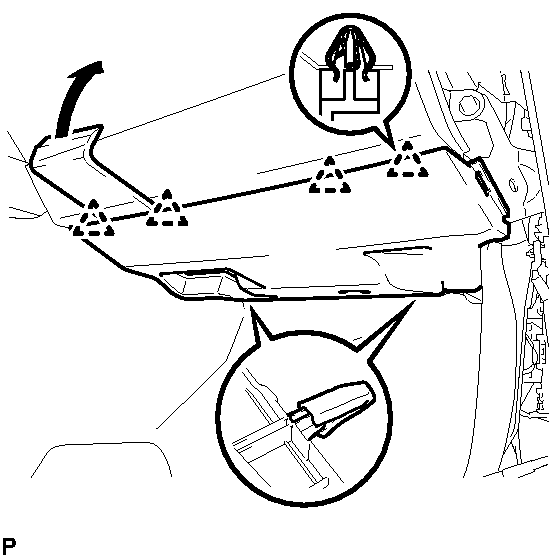

- Remove the 2 clips and No. 2 console box duct.
- REMOVE NO. 1 CONSOLE BOX DUCT
- Remove the clip and No. 1 console box duct.

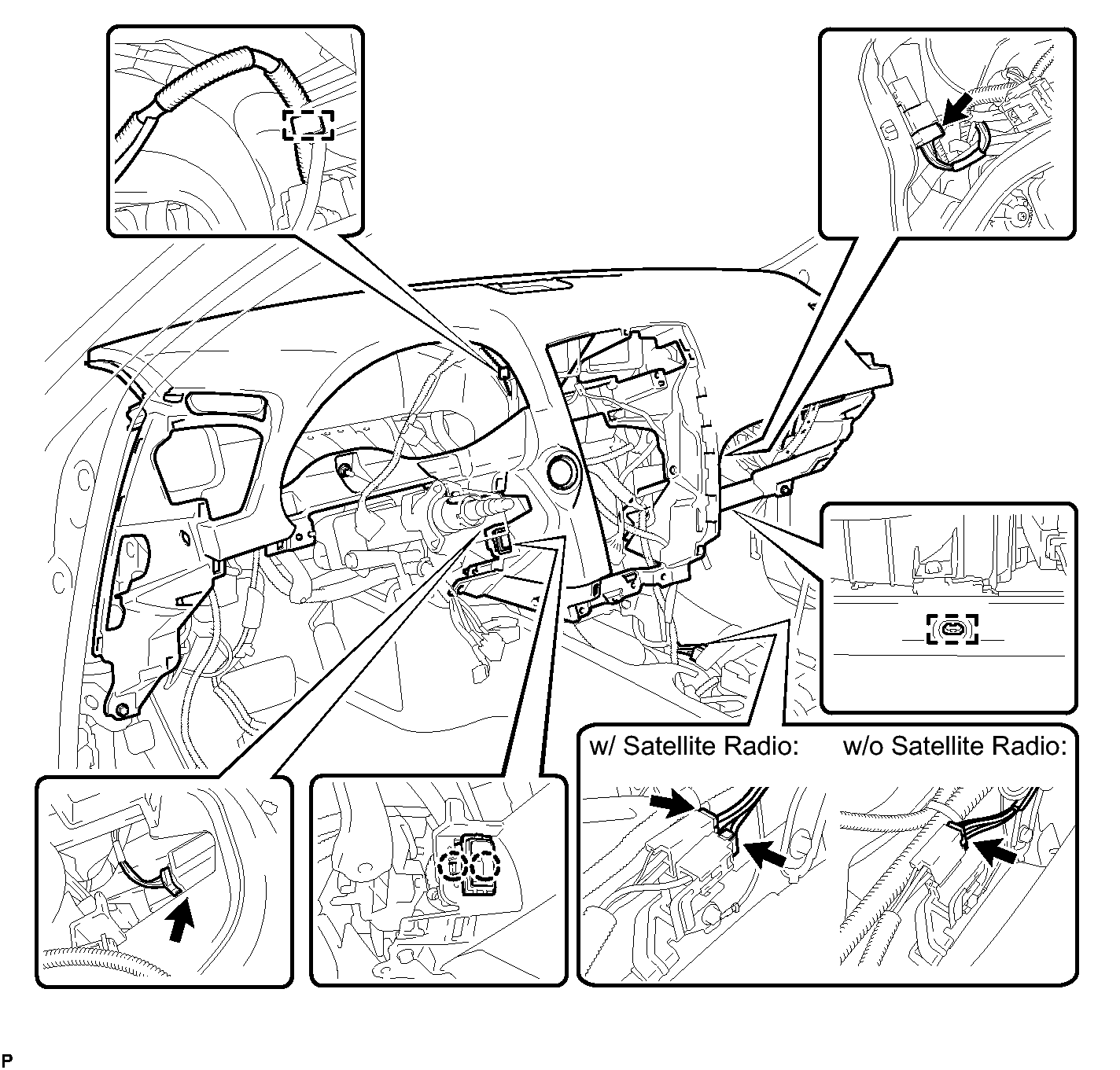

- DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY . Refer to REMOVAL [08/2012 - ] - Step 3
- REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
- Disengage the clamps.
- Disconnect the connectors.
- Disengage the 2 claws and separate the cooler thermistor.

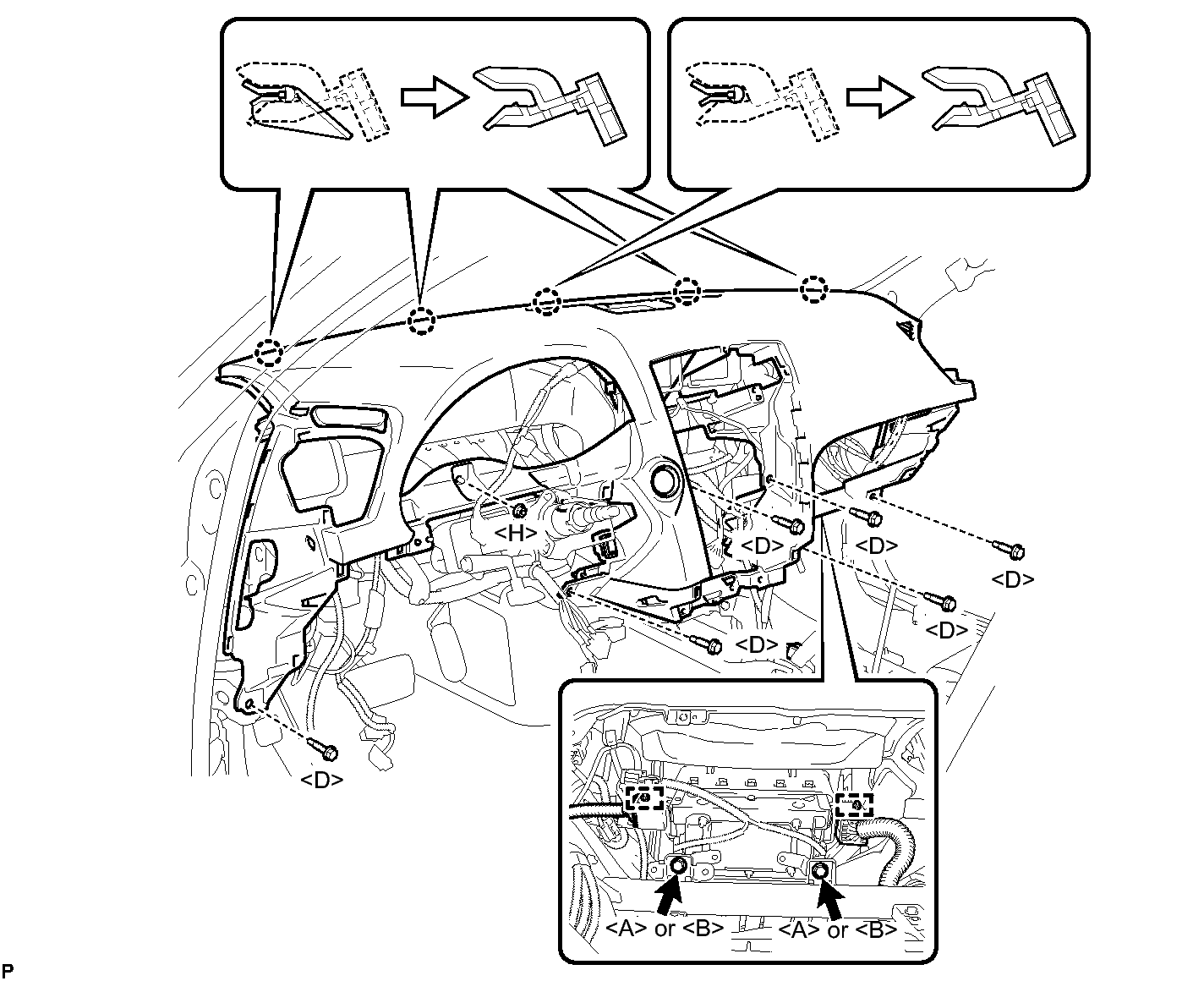

- Remove the 6 bolts <D> and nut <H>.

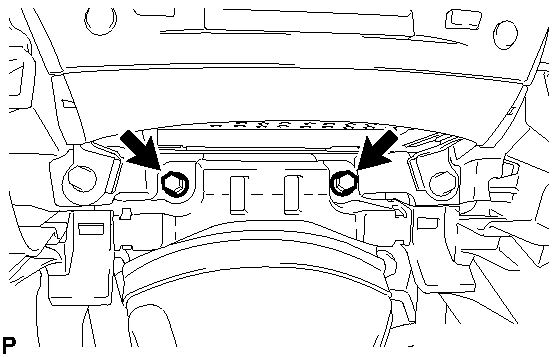

- Remove the 2 passenger airbag bolts <A> or <B>.
- Disengage the 2 clamps.

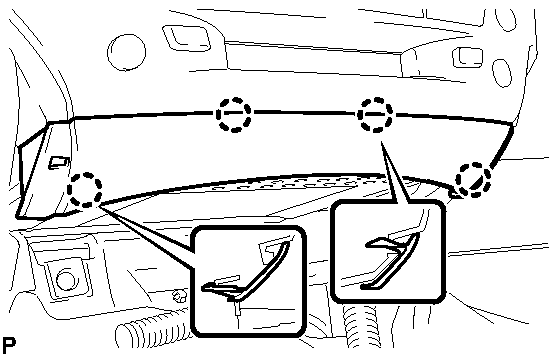

- Disengage the 5 claws and remove the instrument panel safety pad assembly.
- REMOVE INSTRUMENT PANEL CLIP

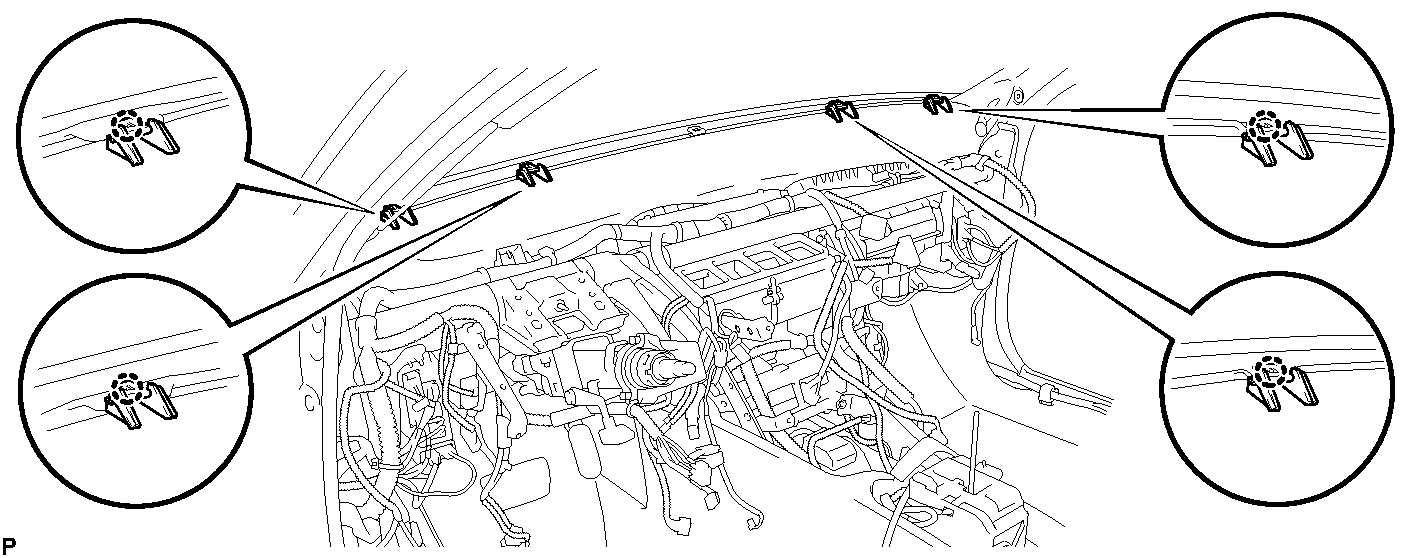

- Disengage the 4 claws to remove the 4 instrument panel clips.
- REMOVE INSTRUMENT PANEL STAY

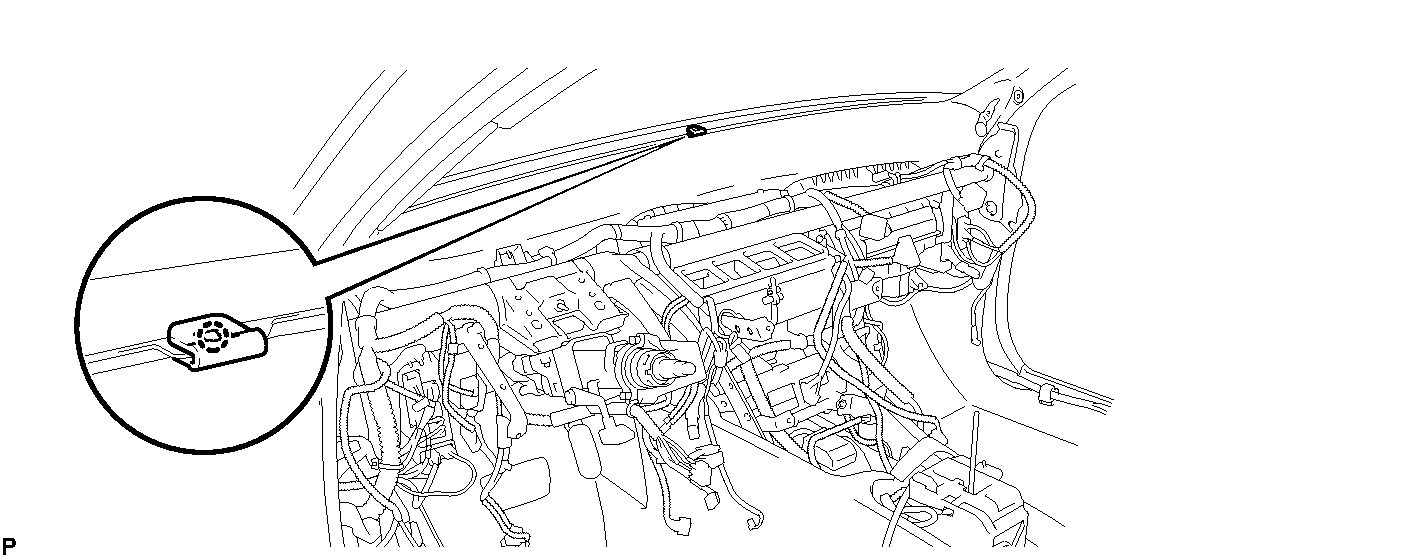

- Disengage the claw to remove the instrument panel stay.
