Removal [08/2012 - ]

PRECAUTION
WARNING:
Be sure to read "PRECAUTION" thoroughly before servicing. Refer to PRECAUTION [08/2012 - ] .
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PRECAUTION [08/2012 - ]

WARNING:
Wait for 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent the airbag deployment.
REMOVE LOWER NO. 3 STEERING WHEEL COVER
1. Using a screwdriver, remove the lower No. 3 steering wheel cover.

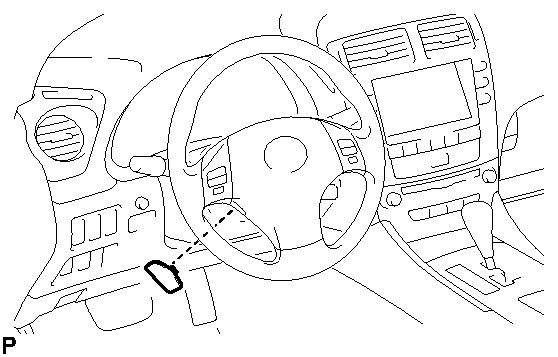

  Fig 1: Identifying Steering Wheel No. 3 Cover Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE LOWER NO. 2 STEERING WHEEL COVER
1. Using a screwdriver, remove the lower No. 2 steering wheel cover.

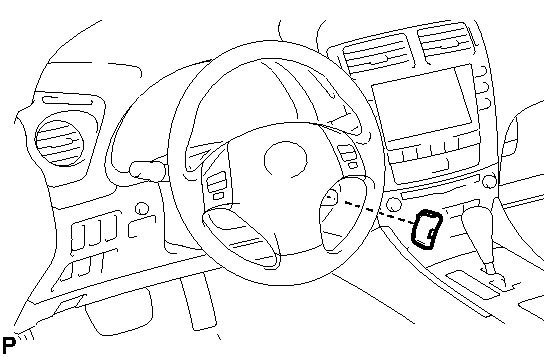

  Fig 2: Identifying Steering Wheel No. 2 Cover Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE STEERING PAD
1. Using a T30 "TORX" socket wrench, loosen the 2 "TORX" screws until the groove along the screw circumference catches on the screw case.

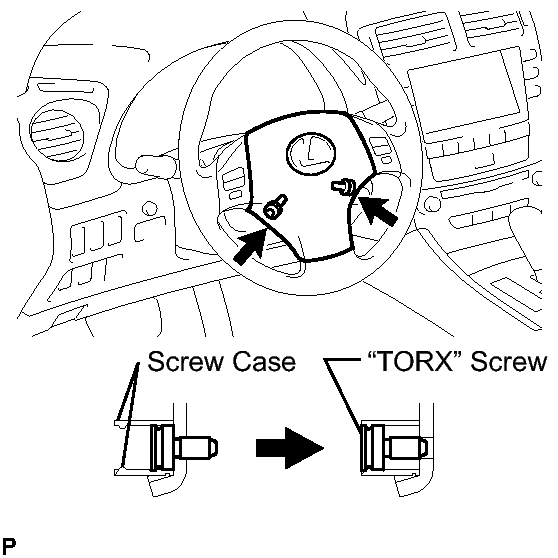

  Fig 3: Identifying Steering Pad TORX Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel assembly and support the steering pad with one hand.
  NOTE:
  When removing the steering pad, do not pull the airbag wire harness.
3. Disconnect the horn connector.

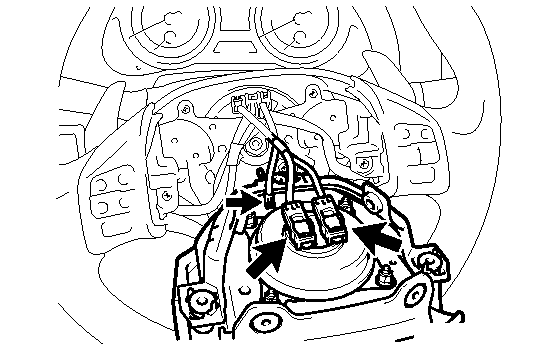

  Fig 4: Identifying Horn Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the 2 connectors from the steering pad.
  NOTE:
  When handling the airbag connector, take care not to damage the airbag wire harness.
5. Remove the steering pad.
