REMOVAL (To 8/2009): Removal

PRECAUTION (w/ Air Suspension)
NOTE:
Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .
REMOVE FRONT FLOOR COVER LH . Refer to REMOVAL - Step 2
REMOVE OXYGEN SENSOR (for Bank 1 Sensor 2)
1. Disconnect the 3 clamps and oxygen sensor connector (for Bank 1 Sensor 2).

  Fig 1: Identifying 3 Clamps And Oxygen Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the wire harness clamp bracket.

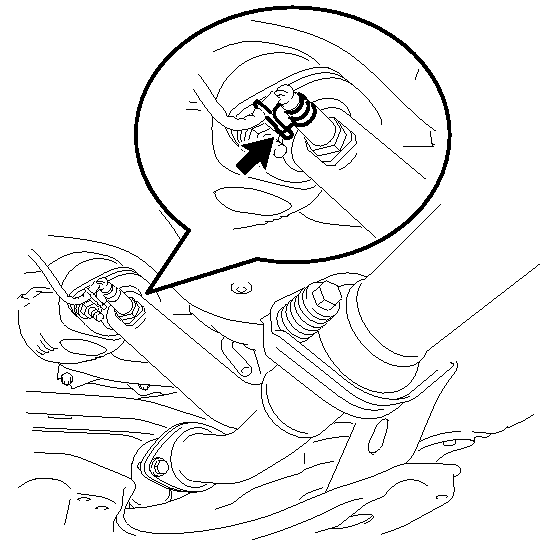

  Fig 2: Identifying Wire Harness Clamp Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, remove the oxygen sensor from the No. 3 front exhaust pipe sub-assembly.

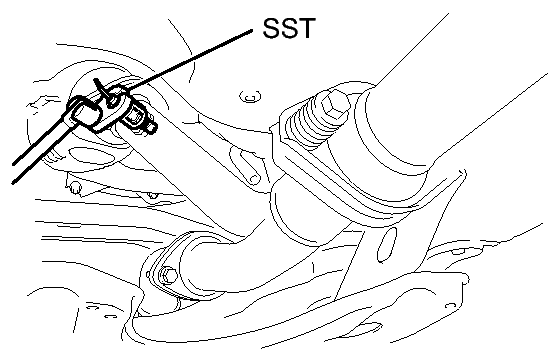

  Fig 3: Identifying Oxygen Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
REMOVE NO. 3 FRONT EXHAUST PIPE SUB-ASSEMBLY
1. Remove the 4 bolts, 2 nuts, 2 compression springs and No. 3 front exhaust pipe sub-assembly.

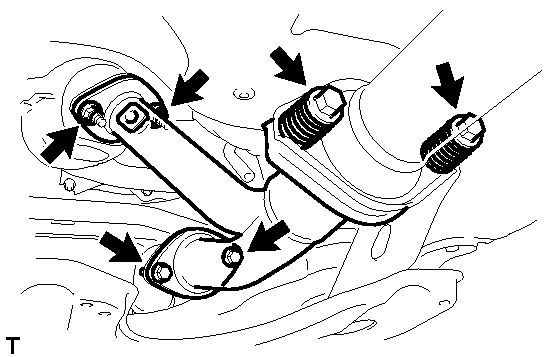

  Fig 4: Identifying 4 Bolts, 2 Nuts, 2 Compression Springs And No. 3 Front Exhaust Pipe Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 gaskets from the No. 3 front exhaust pipe sub-assembly.
REMOVE FRONT EXHAUST PIPE ASSEMBLY . Refer to REMOVAL - Step 8
REMOVE NO. 2 OXYGEN SENSOR (for Bank 2 Sensor 2)
1. Using SST, remove the No. 2 oxygen sensor from the front exhaust pipe assembly.

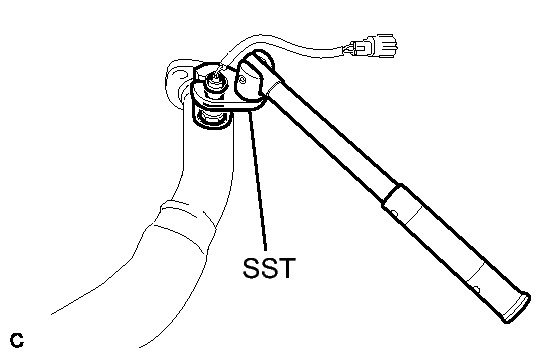

  Fig 5: Removing Oxygen Sensor Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
