INSTALLATION (To 8/2009): Installation

1. Align the shaft splines and install the drive shaft assembly LH with a brass bar and a hammer.

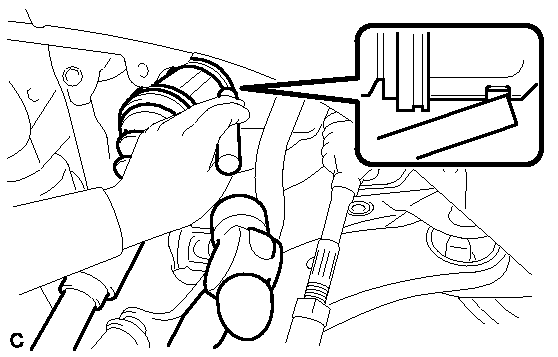

   Fig 1: Installing Drive Shaft Assembly LH With Brass Bar And Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Set the shaft snap ring with the opening facing down.
   • Be careful not to damage the drive shaft dust cover, boot or oil seal.
   • When inserting the drive shaft assembly, keep it level.
2. Align the matchmarks and install the front drive shaft assembly LH to the front axle hub sub-assembly.

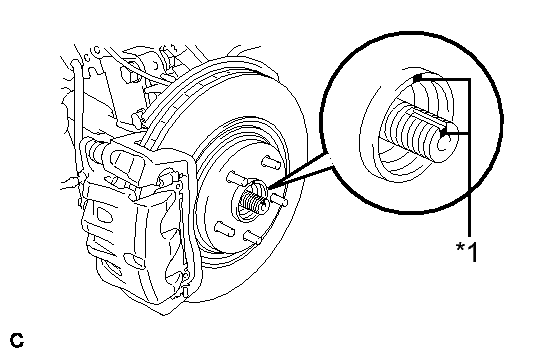

   Fig 2: Align the matchmarks and install the front drive shaft assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   Matchmark

1. Install the front drive shaft assembly RH.
2. Install a new bearing bracket hole snap ring and the bolt.
   Fig 3: Locating Bearing Bracket Hole Snap Ring And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 32 N*m (30 kgf*cm, 24 ft.*lbf)

   NOTE:

   • Do not damage the boot or oil seal.
   • When inserting the drive shaft assembly, keep it level.
3. Align the matchmarks and install the front drive shaft assembly RH to the front axle hub sub-assembly.

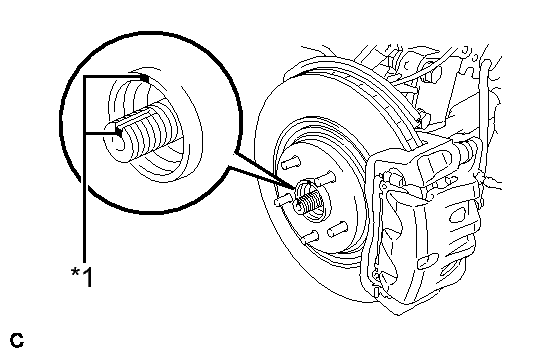

   Fig 4: Align the matchmarks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   Matchmark

1. Clean the threaded parts on the drive shaft and a new axle shaft nut using a non-residue solvent.

   HINT:

   • Be sure to perform this work for a new drive shaft.
   • Keep the threaded parts free of oil and foreign objects.
2. Using a socket wrench (30 mm), install the axle shaft nut.

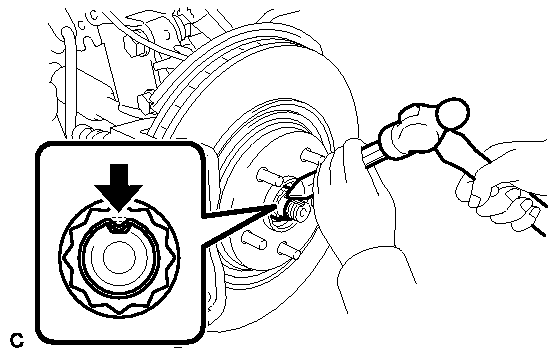

   Fig 5: Staking Front Axle Shaft Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 294 N*m (998 kgf*cm, 217 ft.*lbf)

3. Using a chisel and hammer, stake the front axle shaft nut.

Torque: 103 N*m (050 kgf*cm, 76 ft.*lbf)

HINT:
