Radio Antenna Cord: Removal

  1. REMOVE BOLT, SCREW AND NUT TABLE  (See REMOVAL )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working. (See PRECAUTION )
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  4. REMOVE CONSOLE PANEL UPPER FRONT  (See REMOVAL )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER  (See REMOVAL )
  6. REMOVE RADIO RECEIVER  (See REMOVAL  )
  7. REMOVE CENTER CLUSTER INTEGRATION SWITCH (w/o Navigation System)  (See REMOVAL )
  8. REMOVE MULTI-DISPLAY (w/ Navigation System)  (See REMOVAL  )
  9. REMOVE STEERING WHEEL NO.2 COVER LOWER  (See REMOVAL )
  10. REMOVE STEERING WHEEL NO.3 COVER LOWER  (See REMOVAL )
  11. REMOVE STEERING PAD  (See REMOVAL )
  12. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  13. REMOVE STEERING COLUMN COVER  (See REMOVAL )
  14. REMOVE TILT & TELESCOPIC SWITCH (for Power Tilt and Power Telescopic)  (See REMOVAL )
  15. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
  16. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  17. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  (See REMOVAL )
  18. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  19. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  20. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  21. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  22. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH  (See REMOVAL )
  23. REMOVE INSTRUMENT PANEL NO.2 UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  24. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  25. REMOVE FLOOR CARPET COVER CENTER LH  (See REMOVAL )
  26. REMOVE FLOOR CARPET COVER CENTER RH  (See REMOVAL )
  27. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER  (See REMOVAL )
  28. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  29. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  30. REMOVE INSTRUMENT PANEL NO.1 REGISTER ASSEMBLY  (See REMOVAL )
  31. REMOVE INSTRUMENT PANEL NO.1 REGISTER ASSEMBLY LOWER  (See REMOVAL )
  32. REMOVE INSTRUMENT PANEL ASSEMBLY  (See REMOVAL )
  33. REMOVE NO.2 RADIO ANTENNA CORD (w/o Navigation System)
    1. Disengage the 6 clamps and remove the No.2 radio antenna cord.

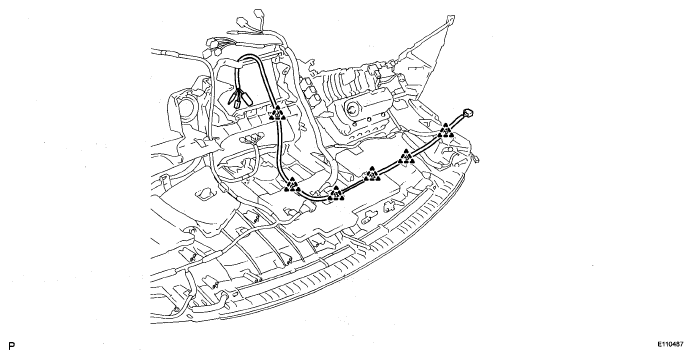

      Fig 1: Identifying No. 2 Radio Antenna Cord & Clamps
      G05270704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 2 RADIO ANTENNA CORD (w/ Navigation System)
    1. Remove the 2 screws and the navigation antenna.
    2. Disengage the 6 clamps and remove the No. 2 radio antenna cord.

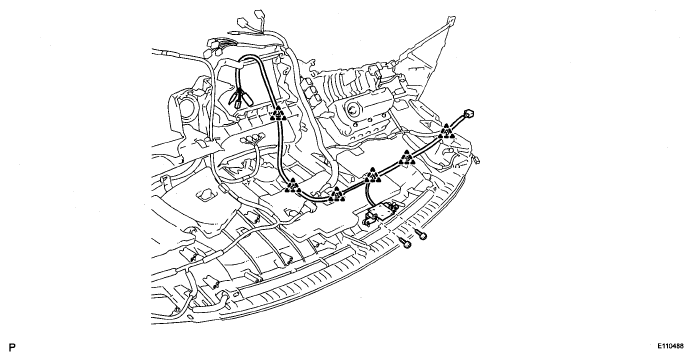

      Fig 2: Identifying No. 2 Radio Antenna Cord & Clamps
      G05270705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE TONNEAU COVER ASSEMBLY
  36. REMOVE DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  37. REMOVE JACK CARRIER SUPPORT
  38. REMOVE JACK ASSEMBLY
  39. REMOVE JACK CARRIER ASSEMBLY
  40. REMOVE DECK FLOOR BOX FRONT  (See REMOVAL )
  41. REMOVE DECK FLOOR BOX REAR  (See REMOVAL )
  42. REMOVE DECK NO.3 BOARD SUB-ASSEMBLY  (See REMOVAL )
  43. REMOVE DECK NO.2 BOARD SUB-ASSEMBLY  (See REMOVAL )
  44. REMOVE BACK DOOR WEATHERSTRIP
  45. REMOVE REAR FLOOR FINISH PLATE  (See REMOVAL )
  46. REMOVE DECK SIDE TRIM BOX LH  (See REMOVAL )
  47. REMOVE DECK SIDE TRIM BOX RH  (See REMOVAL )
  48. REMOVE REAR SEAT TRACK BRACKET COVER  (See REMOVAL )
  49. REMOVE REAR SEAT ASSEMBLY LH  (See REMOVAL )
  50. REMOVE REAR SEAT TRACK BRACKET COVER  (See REMOVAL )
  51. REMOVE REAR SEAT ASSEMBLY RH  (See REMOVAL )
  52. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  53. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  54. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  55. REMOVE REAR DOOR SCUFF PLATE RH  (See REMOVAL )
  56. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  57. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  58. REMOVE LAP BELT OUTER ANCHOR COVER
  59. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  60. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY RH
  61. REMOVE CENTER PILLAR GARNISH LOWER LH  (See REMOVAL )
  62. REMOVE CENTER PILLAR GARNISH LOWER RH  (See REMOVAL )
  63. REMOVE CENTER PILLAR GARNISH LH  (See REMOVAL )
  64. REMOVE CENTER PILLAR GARNISH RH  (See REMOVAL )
  65. REMOVE DECK SIDE TRIM COVER LH  (See REMOVAL )
  66. REMOVE DECK SIDE TRIM COVER RH  (See REMOVAL )
  67. SEPARATE REAR NO.1 SEAT BELT ASSEMBLY OUTER LH
  68. SEPARATE REAR NO.1 SEAT BELT ASSEMBLY OUTER RH
  69. REMOVE REAR SEAT SIDE COVER LH  (See REMOVAL )
  70. REMOVE REAR SEAT SIDE COVER RH  (See REMOVAL )
  71. REMOVE REAR FLOOR FINISH SIDE PLATE LH  (See REMOVAL )
  72. REMOVE REAR FLOOR FINISH SIDE PLATE RH  (See REMOVAL )
  73. REMOVE ROPE HOOK  (See REMOVAL )
  74. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH  (See REMOVAL )
  75. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH  (See REMOVAL )
  76. REMOVE NO.2 ROOM LIGHT ASSEMBLY  (See REMOVAL )
  77. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH  (See REMOVAL )
  78. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH  (See REMOVAL )
  79. REMOVE TELEVISION BASE
    1. with Rear Seat Entertainment System:
      1. Remove the television base (See REMOVAL  ).
  80. REMOVE TELEVISION DISPLAY
    1. with Rear Seat Entertainment System:
      1. Remove the television display (See REMOVAL  ).
  81. REMOVE ASSIST GRIP SUB-ASSEMBLY  (See REMOVAL )
  82. REMOVE RAIN SENSOR
    1. with Rain Sensor:
      1. Remove the rain sensor (See REMOVAL ).
  83. REMOVE NO.1 ROOM LIGHT ASSEMBLY  (See REMOVAL )
  84. REMOVE MAP LIGHT ASSEMBLY  (See REMOVAL )
  85. REMOVE LH VISOR ASSEMBLY  (See REMOVAL )
  86. REMOVE RH VISOR ASSEMBLY  (See REMOVAL )
  87. REMOVE VISOR HOLDER  (See REMOVAL )
  88. REMOVE ROOF HEADLINING ASSEMBLY  (See REMOVAL )
  89. REMOVE RADIO ANTENNA CORD
    1. Remove the tape and radio antenna cord from the roof headlining assembly.

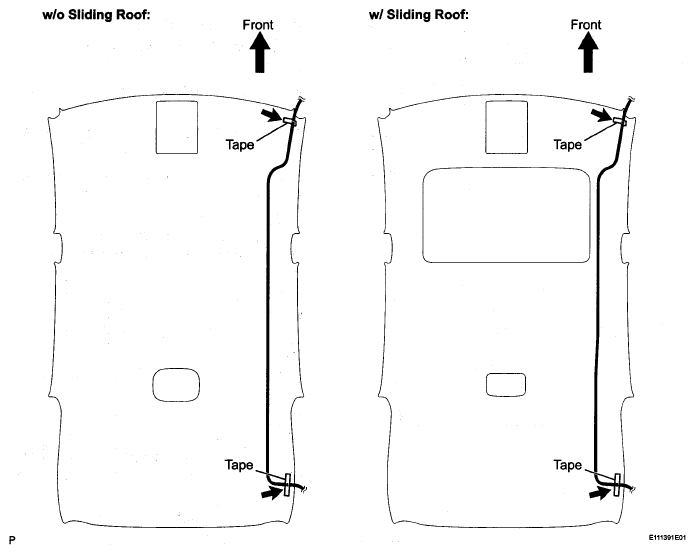

      Fig 3: Identifying Tape On Radio Antenna Cord
      G05270706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  90. REMOVE BACK WINDOW PANEL TRIM UPPER
    1. without Power Back Door:
      1. Remove the back window panel trim upper (See DISASSEMBLY ).
  91. REMOVE BACK DOOR TRIM BOARD LH
    1. with Power Back Door:
      1. Remove the back door trim board LH (See DISASSEMBLY ).
  92. REMOVE BACK WINDOW PANEL TRIM UPPER
    1. with Power Back Door:
      1. Remove the back window panel trim upper (See DISASSEMBLY ).
  93. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER  (See DISASSEMBLY )
  94. REMOVE BACK DOOR TRIM PANEL ASSEMBLY  (See DISASSEMBLY )
  95. REMOVE BACK DOOR TRIM COVER LH  (See DISASSEMBLY )
  96. REMOVE BACK DOOR TRIM COVER RH  (See DISASSEMBLY )
  97. REMOVE NO.3 RADIO ANTENNA CORD
    1. Disconnect the connector.

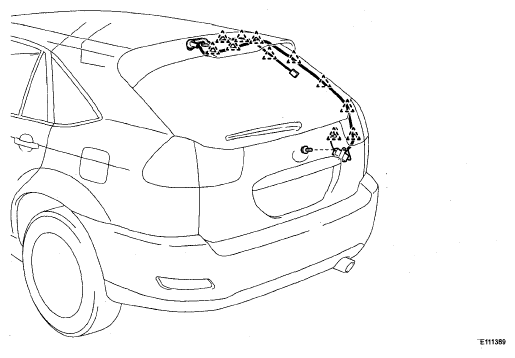

      Fig 4: Identifying No. 3 Radio Antenna Cord & Clamps
      G05270707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 11 clamps.
    3. Remove the bolt and the No.3 radio antenna cord.
