Instrument Panel Safety Pad: Removal

BOLT, SCREW AND NUT TABLE
HINT:

The bolts, screws and nuts, necessary for installation and removal of the instrument panel are shown below.

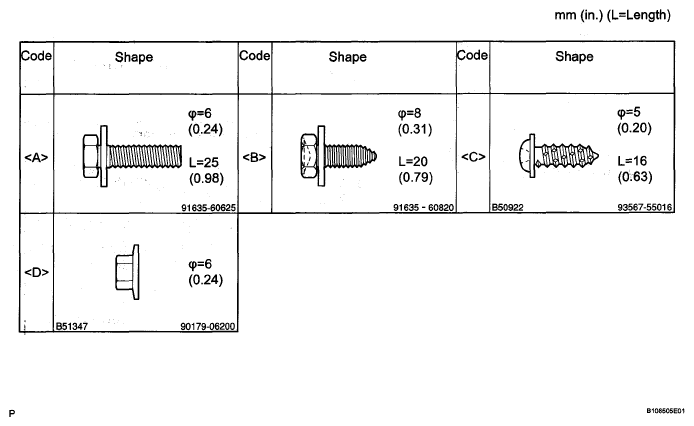

Fig 1: Identifying Bolt, Screw & Nut Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working (See PRECAUTION ).
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

  Fig 2: Identifying Shift Lever Knob Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE PANEL UPPER FRONT
1. Disengage the 4 clips and remove the console panel upper front.

  Fig 3: Identifying Console Panel Upper Front & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
1. Disengage the 2 clips.
2. Disconnect the connectors and remove the instrument panel finish panel lower.

  Fig 4: Identifying Instrument Panel Finish Panel Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER (See REMOVAL )
REMOVE CENTER CLUSTER INTEGRATION SWITCH (w/o Navigation System) (See REMOVAL )
REMOVE MULTI-DISPLAY (w/ Navigation System) (See REMOVAL )
REMOVE STEERING WHEEL NO.2 COVER LOWER (See REMOVAL )
REMOVE STEERING WHEEL NO.3 COVER LOWER (See REMOVAL )
REMOVE STEERING PAD (See REMOVAL )
REMOVE STEERING WHEEL ASSEMBLY (See REMOVAL )
REMOVE STEERING COLUMN COVER (See REMOVAL )
REMOVE TILT AND TELESCOPIC SWITCH (for Power Tilt and Power Telescopic) (See REMOVAL )
REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
REMOVE FRONT DOOR SCUFF PLATE LH (See REMOVAL )
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
1. Remove the 2 clips and the cowl side trim sub-assembly LH.

  Fig 5: Identifying Cowl Side Trim Sub-Assembly LH Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

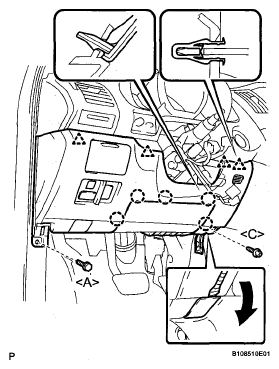

REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER
1. Using a screwdriver, open the instrument panel finish panel sub-assembly lower cover.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the bolt < A > and the screw < C >.
3. Disconnect the hood lock control cable assembly.
4. Disengage the 5 claws and the 4 clips.
5. Disconnect the connectors and remove the instrument panel finish panel sub-assembly lower.

  Fig 6: Identifying Instrument Panel Finish Panel Sub-Assembly Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See REMOVAL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Disengage the 4 clips and remove the instrument cluster finish panel sub-assembly.

  Fig 7: Identifying Instrument Cluster Finish Panel Sub-Assembly & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 4 screws < C >.
2. Pull out the combination meter assembly, then disconnect the connectors.

  Fig 8: Identifying Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedures for the RH side and the LH side.
REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:

Use the same procedures for the RH side and the LH side.
REMOVE INSTRUMENT PANEL NO.2 UNDER COVER SUB-ASSEMBLY
1. Using a screwdriver, push the 3 claws in the direction indicated by the arrow to disengage and remove the guide on the front of the vehicle.
  HINT:

  Tape the screwdriver tip before use.
2. Disconnect the connectors and remove the instrument panel No. 2 under cover sub-assembly.

  Fig 9: Identifying Instrument Panel No. 2 Under Cover Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
1. Remove the 2 bolts < A > and the 2 screws < C >.
2. Pull the glove compartment door assembly to the rear to remove it.
3. Disconnect the connector.
REMOVE FLOOR CARPET COVER CENTER LH
1. Remove the 2 clips from the floor carpet cover center LH.

  Fig 11: Identifying Floor Carpet Cover Center LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Depress the edge of the floor carpet cover center LH around the claws to disengage the 2 claws below the floor carpet cover center LH.
3. Slide the floor carpet cover center LH to the front of the vehicle, and disengage the 2 claws from the instrument panel finish panel lower center at the floor carpet cover center LH.
4. Remove the floor carpet cover center LH.
REMOVE FLOOR CARPET COVER CENTER RH
HINT:

Use the same procedures for RH side and the LH side.
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
1. Remove the 7 screws < C >.
2. Disengage the 2 clips and remove the instrument panel finish panel lower center.

  Fig 12: Identifying Instrument Panel Finish Panel Lower Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PILLAR GARNISH LH (See REMOVAL )
REMOVE FRONT PILLAR GARNISH RH
HINT:

Use the same procedures for the RH side and the LH side.
REMOVE INSTRUMENT PANEL FINISH PLATE
REMOVE INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY

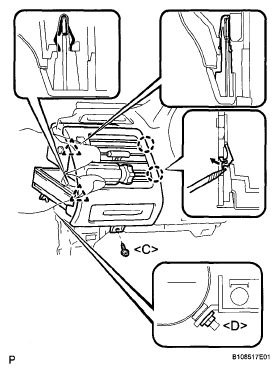

1. Remove the screw < C > and nut < D >.
2. Using a screwdriver, lever up the 2 claws on the body from inside of the register.
  HINT:

  Tape the screwdriver tip before use.
3. Disengage the 2 clips and remove the instrument panel No. 1 register assembly.

  Fig 13: Identifying Instrument Panel No. 1 Register Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY LOWER
1. Using a screwdriver, lever up the 2 claws on the body from inside of the register.
  HINT:

  Tape the screwdriver tip before use.
2. Disengage the 3 clips and remove the instrument panel No. 1 register assembly lower.

  Fig 14: Identifying Instrument Panel No. 1 Register Assembly Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL ASSEMBLY
1. Remove the 2 bolts < A >, bolt < B > and 2 nuts < D >.
2. Disconnect each of the clamps and the connectors.
3. Pull the instrument panel assembly to the rear and check that none of the wire harness is stuck in the body.
