Roof Headlining: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE RH
    1. Using a screwdriver, disengage the 7 claws and 3 clips, and remove the scuff plate.
      Fig 1: Identifying Claws & Clips On Front Door Scuff Plate RH
      G05274853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  2. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures described for the RH side.

  3. REMOVE REAR DOOR SCUFF PLATE RH
    1. Using a screwdriver, disengage the 4 claws and 2 clips, and remove the scuff plate.
      Fig 2: Identifying Claws & Clips On Rear Door Scuff Plate RH
      G05274854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  4. REMOVE REAR DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures described for the RH side.

  5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  6. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  7. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  8. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  9. REMOVE FRONT PILLAR GARNISH RH
    1. Using a screwdriver, disengage the 2 claws and 2 clips and remove the garnish by pulling it up.
      Fig 3: Identifying Claws & Clips On Front Pillar Garnish RH
      G05274855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

      NOTE: Removing the garnish damages the upper clip. When installing the garnish, use a new clip instead of the damaged clip.
    2. Pull the garnish upward, and remove it from the instrument panel.
    3. with Curtain shield airbag:

      Protect the curtain shield airbag.

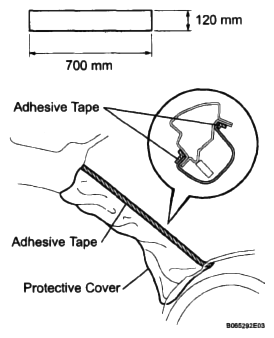

      Fig 4: Identifying Curtain Shield Airbag
      G05274856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Thoroughly cover the airbag with cloth or nylon of 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape.
        NOTE: Cover the curtain shield airbag with the protection cover as soon as the front pillar garnish is removed.
  10. REMOVE FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedures described for the RH side.

  11. REMOVE CENTER PILLAR GARNISH LOWER LH

    HINT:

    Use the same procedures described for the RH side.

  12. REMOVE CENTER PILLAR GARNISH LOWER RH
    1. Remove the floor anchor cover.
    2. Remove the bolt and the front seat outer belt on the floor anchor side.
    3. Disengage the 3 clips and 2 claws, and remove the center pillar garnish.
      Fig 5: Identifying Clips & Claws On Center Pillar Garnish
      G05274857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CENTER PILLAR GARNISH RH
    1. Remove the 2 screws.
    2. Disengage the claw and remove the center pillar garnish by pulling it down.
      Fig 6: Identifying Center Pillar Garnish
      G05274858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CENTER PILLAR GARNISH LH

    HINT:

    Use the same procedures described for the RH side.

  15. REMOVE REAR SEAT TRACK BRACKET COVER  (See REMOVAL )
  16. REMOVE REAR SEAT ASSEMBLY LH  (See REMOVAL )
  17. REMOVE REAR SEAT TRACK BRACKET COVER  (See REMOVAL )
  18. REMOVE REAR SEAT ASSEMBLY RH  (See REMOVAL )
  19. REMOVE TONNEAU COVER ASSEMBLY
  20. REMOVE DECK BOARD SUB-ASSEMBLY
    1. Disengage the 5 clips and turn up the front side of the deck board sub-assembly.
    2. Remove the 2 bolts and deck board sub-assembly.
      Fig 7: Identifying Deck Board Sub-Assembly Clips And Bolts
      G05274859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE DECK FLOOR BOX FRONT
    1. Using a clip remover, remove the 2 clips and deck floor box.
  22. REMOVE DECK FLOOR BOX REAR
    1. Using a clip remover, remove the 2 clips and deck floor box.
  23. REMOVE DECK BOARD SUB-ASSEMBLY NO. 2
    1. Remove the 4 nuts and deck board.
  24. REMOVE DECK BOARD SUB-ASSEMBLY NO. 3
    1. Remove the 2 nuts and deck board.
  25. REMOVE BACK DOOR WEATHERSTRIP
  26. REMOVE DECK SIDE TRIM BOX RH
    1. Remove the clip.
    2. Using a clip remover, remove the 2 clips and deck side trim box.
  27. REMOVE DECK SIDE TRIM BOX LH

    HINT:

    Use the same procedures described for the RH side.

  28. REMOVE REAR FLOOR FINISH PLATE
    1. Using a clip remover, remove the 2 clips and finish plate.
  29. REMOVE REAR FLOOR FINISH SIDE PLATE RH
    1. Using a clip remover, remove the clip.
    2. Using a screwdriver, disengage the 2 clips and remove the floor finish side plate.
      Fig 8: Identifying Clips On Floor Finish Side Plate
      G05274860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  30. REMOVE REAR FLOOR FINISH SIDE PLATE LH

    HINT:

    Use the same procedures described for the RH side.

  31. REMOVE DECK SIDE TRIM COVER RH
    1. Using a molding remover, disengage the 5 claws and remove the trim cover by pulling it to the inside of the vehicle.
      Fig 9: Identifying Deck Side Trim Cover Claws
      G05274861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE DECK SIDE TRIM COVER LH

    HINT:

    Use the same procedures described for the RH side.

  33. REMOVE REAR SEAT SIDE COVER RH
    1. Remove the bolt and belt on the floor anchor side.
    2. Using a clip remover, remove the 2 clips.
    3. Using a screwdriver, disengage the 4 clips and remove the side cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 10: Identifying Clips On Rear Seat Side Cover RH
      G05274862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE REAR SEAT SIDE COVER LH

    HINT:

    Use the same procedures described for the RH side.

  35. REMOVE ROPE HOOK
    1. Remove the 4 bolts and 4 hooks.
      Fig 11: Identifying Rope Hook With Bolts
      G05274863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Using a clip remover, remove the 4 clips.
    2. Using a screwdriver, disengage the 2 clips and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

  37. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    HINT:

    Use the same procedures described for the RH side.

  38. REMOVE ROOM LIGHT ASSEMBLY NO. 2
    1. Using a screwdriver, disengage the clip and remove the room light.
      Fig 12: Identifying Room Light Assembly With Clip
      G05274864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the room light connector.
  39. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH
    1. Using a screwdriver, disengage the claws and remove the bezel.

      HINT:

      Tape the screwdriver tip before use.

    2. Using a screwdriver, disengage the claws and remove the hole cover.
      Fig 13: Identifying Claws On Hole Cover
      G05274865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the 3 bolts.
    4. Using a clip remover, remove the 3 clips.
    5. Using a screwdriver, disengage the 8 clips and remove the roof side garnish.
      Fig 14: Identifying Clips On Roof Side Garnish
      G05274866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  40. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH

    HINT:

    Use the same procedures described for the RH side.

  41. REMOVE ROOM LIGHT ASSEMBLY NO. 1
    1. Using a screwdriver, remove the lens cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Using a screwdriver, disengage the 4 claws and remove the room light.
      Fig 15: Identifying Room Light Assembly No.1
      G05274867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the room light connector.
  42. REMOVE RAIN SENSOR (w/ Rain Sensor)  (See REMOVAL )
  43. REMOVE MAP LIGHT ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws and remove the lens cover.
      Fig 16: Disengaging Claws & Removing Lens Cover
      G05274868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Using a screwdriver, disengage the 2 claws and remove the cap.

      HINT:

      Tape the screwdriver tip before use.

      Fig 17: Disengaging Cap Claws
      G05274869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 screws.
    4. Disconnect the map light connector and remove the map light.
  44. REMOVE RH VISOR ASSEMBLY
      Fig 18: Disengaging Claws & Removing Visor Bracket Cover
      G05274870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a molding remover, disengage the 4 claws and remove the visor bracket cover.
    2. Remove the 2 screws.
    3. Disconnect the connector and remove the visor.
  45. REMOVE L H VISOR ASSEMBLY

    HINT:

    Use the same procedures described for the RH side.

  46. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 6 claws and remove the assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

      2. Fig 19: Identifying Assist Grip Sub-Assembly
      G05274871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and assist grip.

      HINT:

      When removing the assist grip, be careful not to separate the screws from the assist grip.

  47. REMOVE VISOR HOLDER
    1. Remove the holder of the sun visor by turning it counterclockwise.
      Fig 20: Identifying Holder Of Sun Visor
      G05244295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE SUN ROOF OPENING TRIM MOLDING (w/ Sliding Roof)
  49. REMOVE TELEVISION BASE (w/ Rear Seat Entertainment System)  (See REMOVAL )
  50. REMOVE TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System)  (See REMOVAL )
  51. REMOVE ROOF HEADLINING ASSEMBLY
    1. without Sliding Roof:
      1. Disengage the 3 clips and 2 fasteners and remove the roof headlining assembly
    2. with Sliding Roof (Standard Type):
      1. Disengage the 3 clips and 2 fasteners and remove the roof headlining assembly
    3. with Sliding Roof (Multi-panel Moon Roof Type):
      1. Disengage the 3 clips and 12 fasteners and remove the roof headlining assembly.

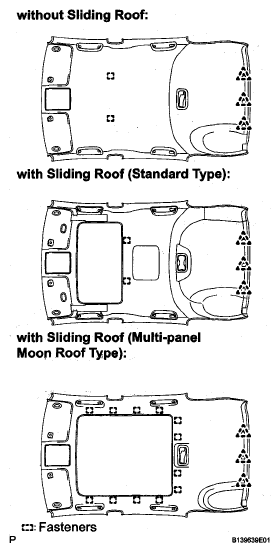

        Fig 21: Identifying Clips & Fasteners On Roof Headlining Assembly
        G05274873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE FRONT ROOF SILENCER PAD (for TMMK Made)
    1. Remove the 2 front roof silencer pads from the roof headlining assembly.
      Fig 22: Identifying Front Roof Silencer Pad (For TMMK Made)
      G05274874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE ROOF SIDE RAIL SILENCER PAD (for TMMK Made)
    1. Remove the roof side rail silencer pad from the roof headlining assembly.
      Fig 23: Identifying Roof Side Rail Silencer Pad (For TMMK Made)
      G05274875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE NO. 5 ROOF SILENCER PAD (for TMMK Made)
    1. Remove the No. 5 roof silencer pad from the roof headlining assembly.
      Fig 24: Identifying No. 5 Roof Silencer Pad (For TMMK Made)
      G05274876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. REMOVE RADIO ANTENNA CORD  (See REMOVAL )
  56. REMOVE NO. 1 ROOF WIRE
    1. Remove the adhesive tape from the roof headlining assembly.
    2. Remove the roof wire from the roof headlining assembly.
    3. Remove the double adhesive tape from the roof headlining assembly.
