WIPER / WASHER: WASHER MOTOR (for Rear Side): REMOVAL


1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. REMOVE FRONT FENDER MUDGUARD LH Removal

3. REMOVE HEIGHT CONTROL PROTECTOR PIPE Removal

4. REMOVE SIDE STEP ASSEMBLY Removal

5. REMOVE FRONT FENDER LINER LH Removal

6. DRAIN WASHER FLUID Removal

7. REMOVE WASHER INLET SUB-ASSEMBLY Removal

8. REMOVE WINDSHIELD WASHER JAR ASSEMBLY Removal

9. REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY

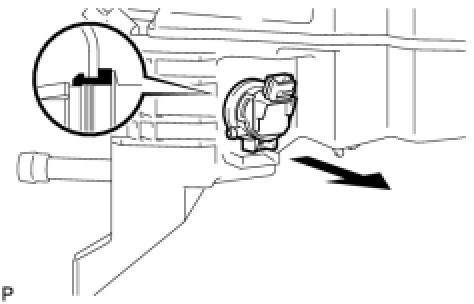

(a) Remove the washer motor together with the gasket in the direction shown in the illustration.
(b) Disconnect the connector.
