Removal

3UR-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. REMOVE ENGINE ROOM SIDE COVER RH Removal

3. REMOVE UPPER RADIATOR SUPPORT SEAL Removal

4. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

5. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Removal

6. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Removal

7. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Removal

8. DRAIN ENGINE COOLANT Service and Repair

9. REMOVE NO. 1 RADIATOR HOSE
10. REMOVE FAN SHROUD Removal

11. REMOVE OIL PRESSURE SENDER GAUGE ASSEMBLY Removal

12. REMOVE OIL FILTER BRACKET (w/o Oil Cooler) [1][2]Removal

13. DISCONNECT COOLER COMPRESSOR ASSEMBLY (w/ Oil Cooler) [1][2]Removal

14. DISCONNECT NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY (w/ Oil Cooler)

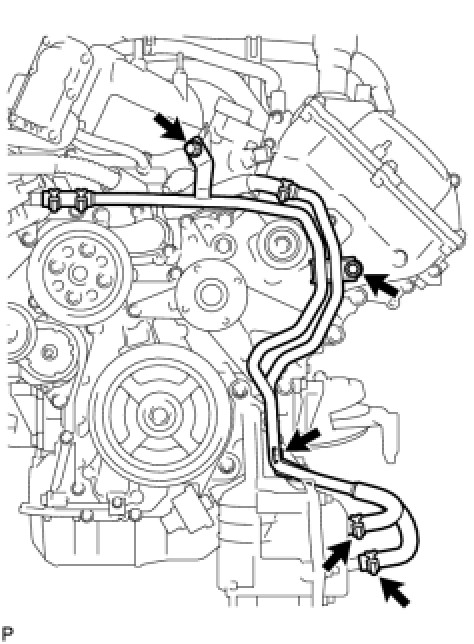

(a) Remove the 3 bolts and disconnect the 2 water by-pass hoses from the oil cooler.
15. REMOVE NO. 1 OIL COOLER BRACKET (w/ Oil Cooler) Removal

16. REMOVE OIL FILTER BRACKET (w/ Oil Cooler) Removal

17. REMOVE CRANKSHAFT PULLEY [1][2]Removal

18. REMOVE CRANKSHAFT TIMING GEAR KEY






(a) Remove the crankshaft timing gear key from the crankshaft.
19. REMOVE FRONT CRANKSHAFT OIL SEAL

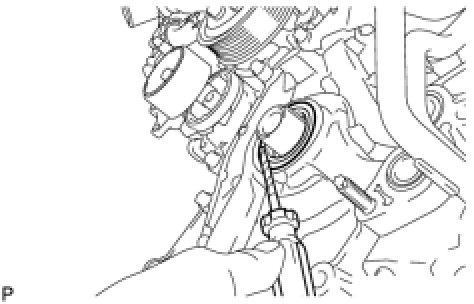

(a) Using a screwdriver, pry out the oil seal.
HINT:
Tape the screwdriver tip before use.
NOTICE:
Do not damage the surface of the oil seal press fit hole and crankshaft.
