Removal

AUDIO / VIDEO: RADIO RECEIVER: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Removal

4. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Removal

5. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

6. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Removal

7. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Removal

8. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET (w/o Navigation System) Removal

9. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY WITH BRACKET (w/ Navigation System) Removal

10. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

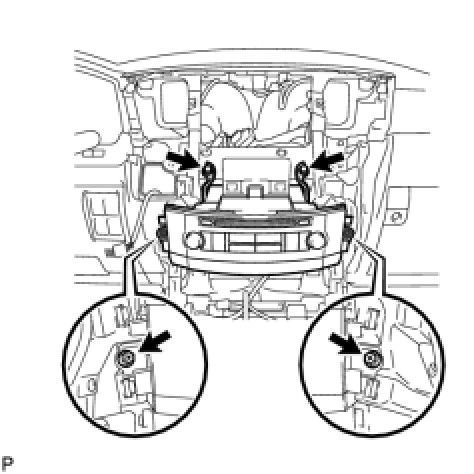

(a) Remove the 2 screws and 2 bolts.

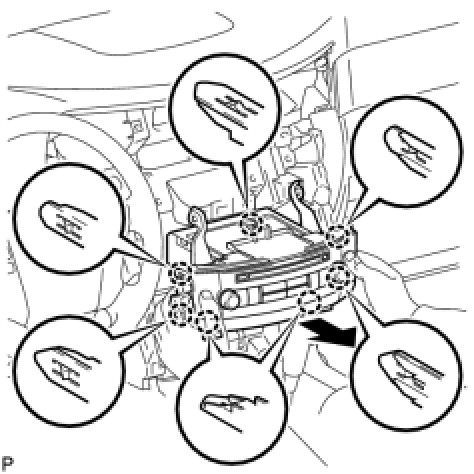

(b) Pull the radio receiver to detach the 7 claws on the backside of the radio receiver.
(c) Disconnect the connectors and remove the radio receiver.
11. REMOVE NO. 1 RADIO BRACKET

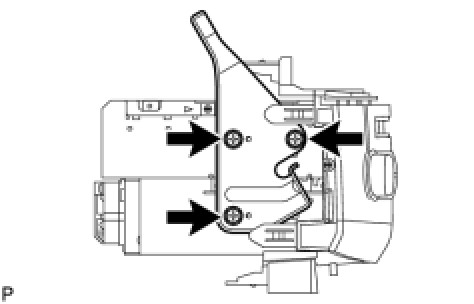

(a) Remove the 3 bolts and bracket.
12. REMOVE NO. 2 RADIO BRACKET

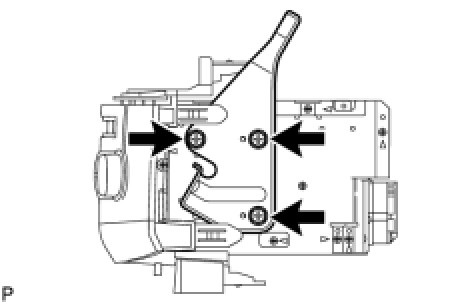

(a) Remove the 3 bolts and bracket.
