Rear View Monitor System

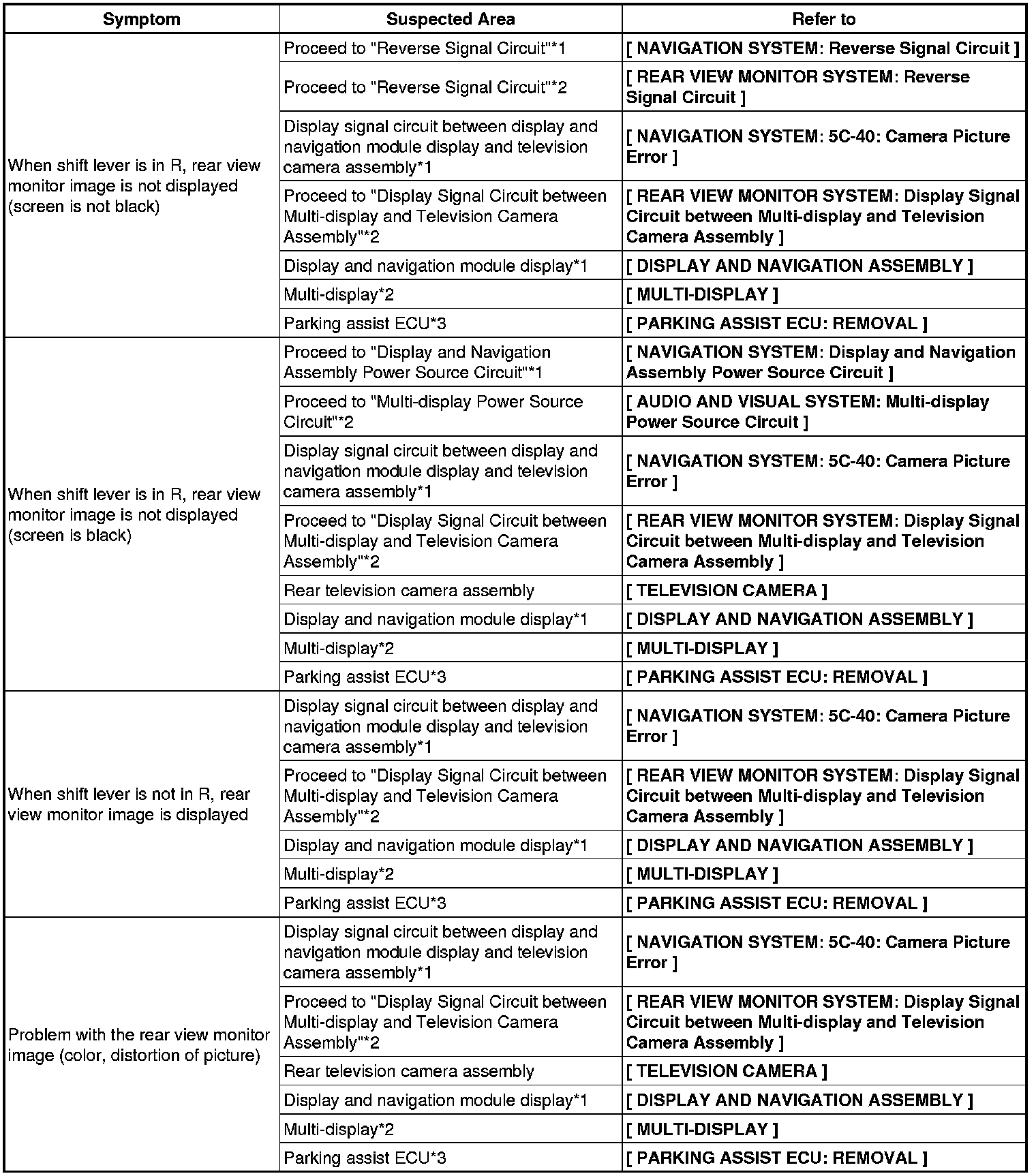

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: PROBLEM SYMPTOMS TABLE

HINT:
Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
NOTICE:
The following inspection procedures of the rear view monitor system are described on the assumption that the navigation system is normal. If any navigation system DTC is output, first proceed with troubleshooting of the navigation system.

Rear View Monitor System





- *1: w/ Navigation System
- *2: w/o Navigation System
- *3: w/ Wide View Front and Side Monitor System
