Rear Door Window Frame Molding: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR DOOR UPPER WINDOW FRAME MOLDING
1. Engage the 2 clips and install the rear door upper window frame molding to the door frame.
2. Using an air riveter or hand riveter with a nose piece, install the rear door upper window frame molding with 6 new rivets
  HINT

  If the rivet cannot be cut, pull it once and cut it.

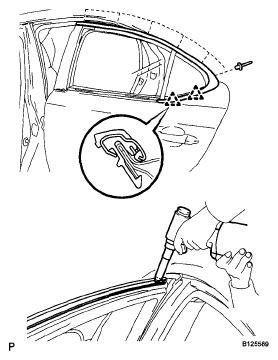

  Fig 1: Installing Rear Door Upper Window Frame Molding With Rivets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.

    Fig 2: Identifying Riveter Incorrect Position
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Confirm that the rivets are seated properly against the molding. Do not tilt the riveter when installing the rivet to the molding. Do not leave any space between the rivet head and molding.

    Fig 3: Identifying Riveter Correct And Incorrect Position
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Do not leave any space between the molding and door frame. Firmly hold the 2 items together while installing the rivet.

    Fig 4: Identifying Riveter Position
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR WEATHERSTRIP (See REASSEMBLY )
INSTALL REAR DOOR FRAME GARNISH (See REASSEMBLY )
INSTALL REAR DOOR TRIM COVER (See REASSEMBLY )
INSTALL REAR DOOR INNER GLASS WEATHERSTRIP (See REASSEMBLY )
INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY (See REASSEMBLY )
INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL (See REASSEMBLY )
INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG (See REASSEMBLY )

INSTALL REAR DOOR FRONT WINDOW FRAME MOLDING

HINT

When installing the rear door front window frame molding, heat the vehicle body and rear door front window frame molding using a heat light.

Heating Temperature

HEATING TEMPERATURE SPECIFICATION

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Molding	20 to 30°C (68 to 86°F)

NOTE: Do not heat the vehicle body and rear door front window frame molding excessively.

Clean the vehicle body surface
1. Using a heat light, heat the vehicle body surface
2. Remove the double-sided tape from the vehicle body
3. Wipe off any tape adhesive residue with cleaner.
Clean the rear door front window frame molding (if reusing the rear door front window frame molding).
1. Using a heat light, heat the rear door front window frame molding.
2. Remove the double-sided tape from the rear door front window frame molding.
3. Wipe off any tape adhesive residue with cleaner.
4. Apply new double-sided tape to the rear door front window frame molding
Install the rear door front window frame molding.
1. Using a heat light, heat the vehicle body and rear door front window frame molding.
2. Remove the peeling paper from the face of the rear door front window frame molding.
  HINT.

  After removing the peeling paper, keep the exposed adhesive free from foreign matter
3. Install the rear door front window frame molding with the clip.

  Fig 5: Identifying Rear Door Front Window Frame Molding With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL REAR DOOR BELT MOLDING ASSEMBLY (See INSTALLATION )
