Instrument Panel Safety Pad: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Attach the 5 clips to install the safety pad.
    2. Connect the connectors and clamps.
    3. Install the 2 bolts to the passenger airbag.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    4. Install the 4 bolts, nut and 2 clips.
    5. Install the center junction block RH and LH with the 4 nuts.
      Fig 1: Identifying Side Defroster Nozzle Duct No. 1 Screw
      G05300374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

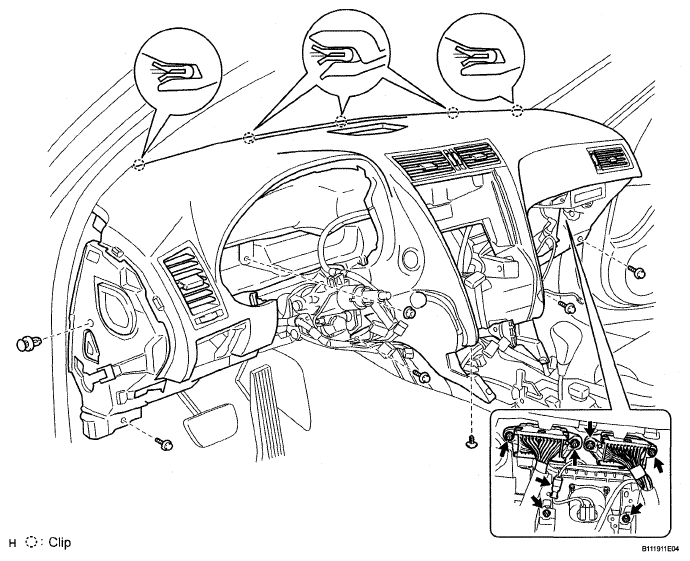

      Fig 2: Identifying Instrument Panel Safety Pad Sub-Assembly Clips, Bolts And Nuts
      G05300398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. w/ Navigation system: Install the navigation ECU.
      1. Connect the connector.
      2. Install the ECU with the 3 bolts.
  2. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  (See INSTALLATION )
  3. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  4. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
    Fig 3: Identifying ECU With Bolts
    G05300372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
    1. Attach the 2 clips and claw to install the glove compartment door.
    2. Connect the connector and clamp.
    3. Install the 4 screws.
  6. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
    Fig 4: Identifying Glove Compartment Door Sub-Assembly Screws, Claws And Clips
    G05300400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
    1. Connect the connector and clamp.
    2. Attach the 4 clips to install the under cover.
      Fig 5: Identifying Instrument Panel No. 2 Under Cover Sub-Assembly Clips
      G05300401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 claws to install the control panel.
    3. Install the 2 screws.
  9. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
    Fig 6: Locating Control Panel Claws And Screws
    G05274435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY
    1. Connect the connector.
    2. Install the hood lock control cable to the safety pad.
    3. Attach the 3 clips and 5 claws to install the safety pad.
      Fig 7: Identifying Instrument Panel No. 1 Safety Pad Sub-Assembly Clips And Claws
      G05811940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors.
    2. Attach the 3 claws to install the under cover.
    3. Install the 2 screws.
      Fig 8: Identifying Instrument Panel No. 1 Under Cover Sub-Assembly Claws And Screws
      G05300404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT SIDE PANEL LH
    1. Attach the 2 claws and 4 clips to install the side panel.
      Fig 9: Identifying Instrument Side Panel LH Claws And Clips
      G05300405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL INSTRUMENT SIDE PANEL RH
    1. Attach the 2 claws and 4 clips to install the side panel.
      Fig 10: Identifying Instrument Side Panel RH Claws And Clips
      G05300406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
    2. Install the combination meter with the 4 screws.
      Fig 11: Locating Combination Meter Assembly Screws
      G05300364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 5 clips to install the cluster finish panel.
      Fig 12: Identifying Cluster Finish Panel Clips
      G05300408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL CONSOLE BOX
    1. Connect the connector.
    2. Install the console box with the 4 bolts and 2 screws.
      Fig 13: Identifying Console Box Bolts And Screws
      G05300362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL CONSOLE BOX REGISTER ASSEMBLY
    1. Attach the 4 clips to install the register.
      Fig 14: Identifying Console Box Register Assembly Clips
      G05811947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL CONSOLE BOX PLATE
    1. Connect the connector.
    2. Attach the 4 clips to install the console box.
      Fig 15: Identifying Console Box Plate Clips
      G05300411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
    1. Attach the 4 clips and 3 claws to install the finish panel end.
    2. Install the screw.
      Fig 16: Identifying Instrument Panel Finish Panel End LH Clips And Claws With Screw
      G05300412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
    1. Attach the 3 clips and 3 claws to install the finish panel end.
    2. Install the screw.
      Fig 17: Identifying Instrument Panel Finish Panel End RH Clips And Claws
      G05300413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL CONSOLE UPPER PANEL ASSEMBLY
    1. Connect the connector.
    2. Attach the 9 clips to install the ash receptacle.
      Fig 18: Identifying Console Upper Panel Assembly Clips
      G05811894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the shift lever knob and turn it in the direction indicated by the arrow.
  22. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
    1. Attach the claws to install the garnish.
  23. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY  (See INSTALLATION )
  24. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY  (See INSTALLATION )
    Fig 19: Installing Shift Lever Knob
    G05811952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL SPIRAL CABLE WITH STEERING SENSOR  (See INSTALLATION )
  26. INSTALL STEERING COLUMN COVER UPPER
    1. Install the steering column cover upper, for 2GR-FSE (See INSTALLATION ) for 1UR-FSE (See INSTALLATION )
  27. INSTALL STEERING COLUMN COVER LOWER
    1. Install the steering column cover lower, for 2GR-FSE (See INSTALLATION ) for 1UR-FSE (See INSTALLATION )
  28. INSTALL STEERING WHEEL ASSEMBLY
    1. Install the steering wheel assembly, for 2GR-FSE (See INSTALLATION ) for 1UR-FSE (See INSTALLATION )
  29. INSTALL STEERING PAD  (See INSTALLATION )
  30. INSTALL STEERING WHEEL NO. 3 COVER LOWER
  31. INSTALL STEERING WHEEL NO. 2 COVER LOWER
  32. INSTALL FRONT DOOR OPENING TRIM COVER LH  (See INSTALLATION )
  33. INSTALL FRONT DOOR OPENING TRIM COVER RH  (See INSTALLATION )
  34. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  35. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  36. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  37. PERFORM INITIALIZATION
    NOTE: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
    1. Perform initialization (See INITIALIZATION ).
  38. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
