Cooling (2GR-FSE): Radiator: Installation

  1. INSTALL RADIATOR ASSEMBLY
    1. Install the 2 radiator support cushions and 2 radiator lower supports to the radiator.
    2. Install the fan shroud to the radiator, and attach the 3 claws.

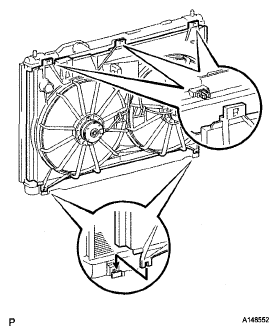

      Fig 1: Identifying Cooling Fan ECU Connector
      G05287490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the radiator with the condenser. Then install the radiator with the 4 bolts.
      Fig 2: Locating Radiator With Bolts
      G05287521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    4. Attach the 3 wire harness claws to the fan shroud, and then connect the connector to the cooling fan ECU.
  2. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY (See  INSTALLATION  )
  3. INSTALL ENGINE ROOM ECU OUTLET DUCT
  4. CONNECT NO. 1 RADIATOR HOSE
  5. CONNECT NO. 2 RADIATOR HOSE
  6. INSTALL RADIATOR RESERVOIR ASSEMBLY
    1. Install the grommet to the fan shroud.
      Fig 3: Locating Reservoir And Grommet
      G05287505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the reservoir with the 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Connect the reservoir hose to the water inlet.
  7. INSTALL HOOD LOCK ASSEMBLY (See  INSTALLATION  )
  8. INSTALL HOOD LOCK CONTROL CABLE COVER (See  INSTALLATION  )
  9. INSTALL RADIATOR SUPPORT OPENING COVER (See  INSTALLATION  )
  10. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/Dynamic Radar Cruise Control System) (See  INSTALLATION  )
  11. INSTALL AIR CLEANER ASSEMBLY
    1. Install the air cleaner case with the 3 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Install the air cleaner element.
    3. Install the air cleaner cap (see INSTALLATION ).
  12. INSTALL NO. 1 AIR CLEANER INLET (See  INSTALLATION  )
  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  14. ADD ENGINE COOLANT (See  REPLACEMENT  )
  15. INSPECT FOR COOLANT LEAK (See  COOLING SYSTEM  )
  16. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (See  ADJUSTMENT  )
  17. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
  18. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  19. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  20. INSTALL ENGINE ROOM SIDE COVER RH (See  INSTALLATION  )
  21. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  22. INSTALL ENGINE UNDER COVER (for 2WD)
  23. INSTALL ENGINE UNDER COVER (for 4WD)
  24. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
