Parking Brake Cable: Removal

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY (See  REMOVAL  )
  3. REMOVE FRONT SEAT ASSEMBLY (See  DISASSEMBLY  )
  4. REMOVE CONSOLE UPPER PANEL GARNISH FRONT (See  REMOVAL  )
  5. REMOVE FRONT ASH RECEPTACLE ASSEMBLY (See  REMOVAL  )
  6. REMOVE INSTRUMENT PANEL FINISH LH PANEL END (See  REMOVAL  )
  7. REMOVE INSTRUMENT PANEL FINISH RH PANEL END (See  REMOVAL  )
  8. REMOVE CONSOLE BOX PLATE (for 4WD) (See  REMOVAL  )
  9. REMOVE CONSOLE BOX REGISTER ASSEMBLY (for 4WD) (See  REMOVAL  )
  10. REMOVE CONSOLE BOX (See  DISASSEMBLY  )
  11. REMOVE FRONT FLOOR BRACE CENTER (for 2GR-FSE) (See  REMOVAL  )
  12. DISCONNECT HEATED OXYGEN SENSOR (for 2GR-FSE) (See  REMOVAL  )
  13. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) (See  REMOVAL  )
  14. REMOVE FRONT FLOOR HEAT NO.1 INSULATOR (for 2GR-FSE) (See  REMOVAL  )
  15. REMOVE REAR PROPELLER SHAFT ASSEMBLY (for 2GR-FSE) (See  INSTALLATION  )
  16. REMOVE FRONT FLOOR BRACE CENTER (for 3UZ-FE) (See  INSTALLATION  )
  17. REMOVE REAR NO.1 FLOOR PANEL BRACE (for 3UZ-FE) (See  INSTALLATION  )
  18. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 3UZ-FE) (See  INSTALLATION  )
  19. REMOVE FRONT FLOOR HEAT NO.1 INSULATOR (for 3UZ-FE) (See  REMOVAL  )
  20. REMOVE REAR PROPELLER SHAFT ASSEMBLY (for 3UZ-FE) (See  REMOVAL  )
  21. REMOVE DIFFERENTIAL SUPPORT NO.2 PROTECTOR (See  REMOVAL  )
  22. REMOVE REAR WHEEL
  23. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY (See  PARKING BRAKE ASSEMBLY  )
  24. REMOVE REAR DISC (See  PARKING BRAKE ASSEMBLY  )
  25. REMOVE PARKING BRAKE SHOE RETURN NO.2 SPRING (See  PARKING BRAKE ASSEMBLY  )
  26. REMOVE PARKING BRAKE SHOE RETURN NO.1 SPRING (See  PARKING BRAKE ASSEMBLY  )
  27. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET (See  INSPECTION  )
  28. REMOVE PARKING BRAKE NO.1 SHOE ASSEMBLY (See  PARKING BRAKE ASSEMBLY  )
  29. REMOVE PARKING BRAKE NO.2 SHOE ASSEMBLY (See  PARKING BRAKE ASSEMBLY  )
  30. REMOVE PARKING BRAKE SHOE LEVER
  31. REMOVE PARKING BRAKE NO.3 CABLE ASSEMBLY
    1. Remove the 3 bolts and disengage the 2 clamps and parking brake No.3 cable assembly.
    2. Separate the parking brake No.3 cable assembly from the parking brake equalizer.

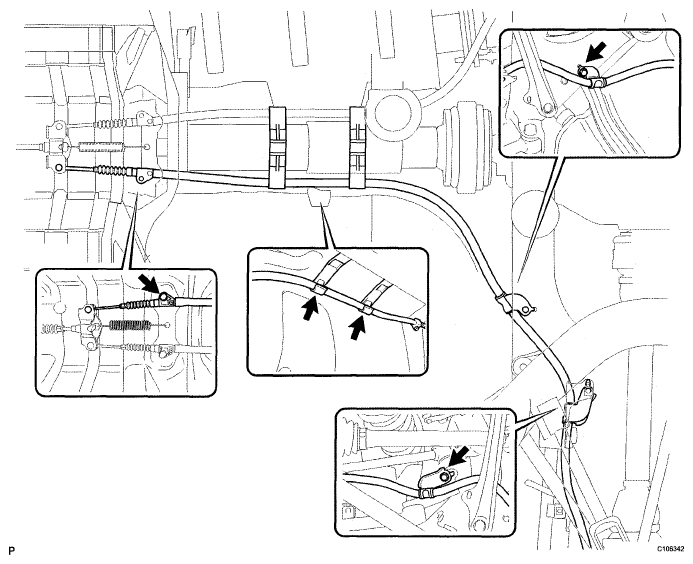

      Fig 1: Locating Parking Brake No.3 Cable Assembly
      G05297376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 nuts and parking brake No.3 cable assembly.
      Fig 2: Locating No 2 Parking Brake Cable Assembly LH To Parking Brake Plate With Nuts
      G05297377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 cable support brackets from the parking brake No.3 cable assembly.
    Fig 3: Installing Cable Support Brackets To Parking Brake No 3 Cable Assembly
    G05297378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
