Parking Brake Cable: Installation

  1. INSTALL PARKING BRAKE NO.3 CABLE ASSEMBLY
    1. Install the 2 cable support brackets to the parking brake No.3 cable assembly.
      Fig 1: Installing Cable Support Brackets To Parking Brake No 3 Cable Assembly
      G05297378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the parking brake No.3 cable assembly to the parking brake plate with the 2 nuts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    3. Connect the parking brake No.3 cable assembly to the parking brake equalizer.
    4. Install the parking brake No.3 cable assembly to the body with the 3 bolts and 2 clamps.

      Torque: Bolt A

      6.0 N*m (61 kgf*cm, 53 in.*lbf)

      Bolt B

      19 N*m (194 kgf*cm, 14 ft.*lbf)

    Fig 2: Locating No 3 Cable Assembly To Parking Brake Plate With Nuts
    G05297377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

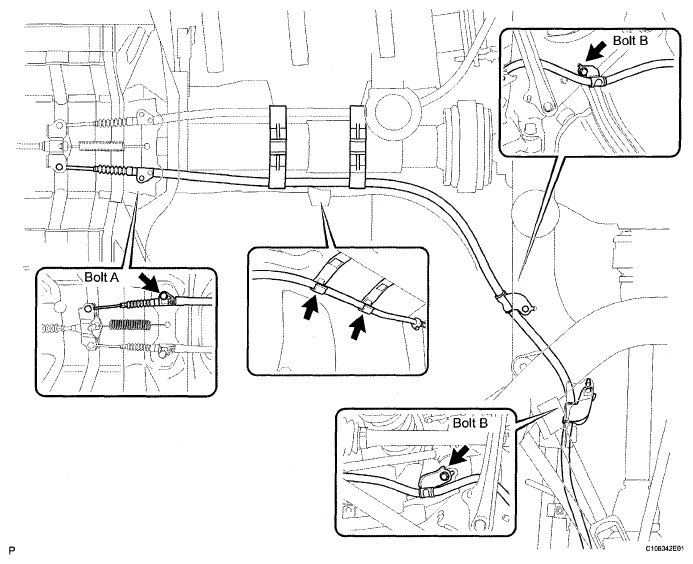

    Fig 3: Locating Parking Brake No 3 Cable Assembly To Body
    G05297381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. APPLY HIGH TEMPERATURE GREASE (See  INSPECTION  )
  3. INSTALL PARKING BRAKE SHOE LEVER (See  INSPECTION  )
  4. INSTALL PARKING BRAKE NO.2 SHOE ASSEMBLY (See  INSPECTION  )
  5. INSTALL PARKING BRAKE NO.1 SHOE ASSEMBLY (See  INSPECTION  )
  6. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See  INSPECTION  )
  7. INSTALL PARKING BRAKE SHOE RETURN NO.1 SPRING (See  REASSEMBLY  )
  8. INSTALL PARKING BRAKE SHOE RETURN NO.2 SPRING (See  REASSEMBLY  )
  9. CHECK PARKING BRAKE INSTALLATION (See  REASSEMBLY  )
  10. INSTALL REAR DISC (See  REASSEMBLY  )
  11. ADJUST PARKING BRAKE SHOE CLEARANCE (See  PARKING BRAKE SYSTEM  )
  12. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (See  REASSEMBLY  )
  13. INSTALL REAR WHEEL Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
  14. INSTALL DIFFERENTIAL SUPPORT NO.2 PROTECTOR (See  INSTALLATION  )
  15. INSTALL REAR PROPELLER SHAFT ASSEMBLY (for 2GR-FSE) (See  INSTALLATION  )
  16. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE (for 2GR-FSE) (See  INSTALLATION  )
  17. INSTALL FRONT FLOOR HEAT NO.1 INSULATOR (for 2GR-FSE) (See  INSTALLATION  )
  18. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) (See  INSTALLATION  )
  19. INSTALL HEATED OXYGEN SENSOR (for 2GR-FSE) (See  INSTALLATION  )
  20. INSTALL FRONT FLOOR BRACE CENTER (for 2GR-FSE) (See  INSTALLATION  )
  21. INSTALL REAR PROPELLER SHAFT ASSEMBLY (for 3UZ-FE) (See  INSTALLATION  )
  22. FULLY TIGHTEN CENTER SUPPORT BEARING ASSEMBLY NO.1 (for 3UZ-FE) (See  INSTALLATION  )
  23. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE (for 3UZ-FE) (See  INSTALLATION  )
  24. INSTALL FRONT FLOOR HEAT NO.1 INSULATOR (for 3UZ-FE) (See  INSTALLATION  )
  25. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 3UZ-FE) (See  INSTALLATION  )
  26. INSTALL REAR NO.1 FLOOR PANEL BRACE (for 3UZ-FE) (See  INSTALLATION  )
  27. INSTALL FRONT FLOOR BRACE CENTER (for 3UZ-FE) (See  INSTALLATION  )
  28. INSTALL CONSOLE BOX (for 4WD) (See  INSTALLATION  )
  29. INSTALL CONSOLE BOX REGISTER ASSEMBLY (for 4WD) (See  INSTALLATION  )
  30. INSTALL CONSOLE BOX PLATE (for 4WD) (See  INSTALLATION  )
  31. INSTALL INSTRUMENT PANEL FINISH LH PANEL END (See  INSTALLATION  )
  32. INSTALL INSTRUMENT PANEL FINISH RH PANEL END (See  INSTALLATION  )
  33. INSTALL FRONT ASH RECEPTACLE ASSEMBLY (See  INSTALLATION  )
  34. INSTALL CONSOLE UPPER PANEL GARNISH FRONT (See  INSTALLATION  )
  35. INSTALL FRONT SEAT ASSEMBLY (See  INSTALLATION  )
  36. INSTALL FRONT SEAT OUTER BELT ASSEMBLY (See  INSTALLATION  )
  37. CONNECT BATTERY NEGATIVE TERMINAL
  38. INSPECT PARKING BRAKE PEDAL TRAVEL (See  PARKING BRAKE SYSTEM  )
  39. ADJUST PARKING BRAKE PEDAL TRAVEL (See  PARKING BRAKE SYSTEM  )
  40. PERFORM INITIALIZATION
  41. INSPECT SRS WARNING LIGHT
  42. INSPECT FRONT SEAT ASSEMBLY (See  INSTALLATION  )
  43. CHECK FOR EXHAUST GAS LEAKS
