Rear Axle Hub Bolt: Replacement

REMOVE REAR WHEEL
REMOVE REAR DISC BRAKE CALIPER ASSEMBLY (See REMOVAL )
REMOVE REAR DISC (See DISASSEMBLY )
REMOVE REAR AXLE HUB BOLT
1. Temporarily install the 2 nuts and washers to the rear axle hub bolt as shown in the illustration.
  SST 09628-10011
2. Using SST and a brass bar or an equivalent to hold the hub and bearing assembly, remove the rear axle hub bolt.

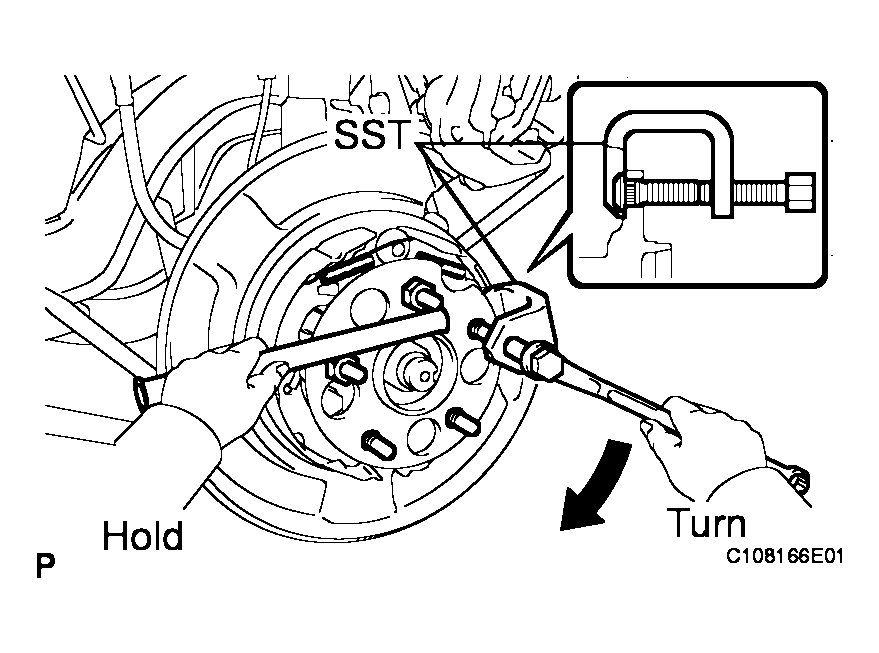

  Fig 1: Removing Rear Axle Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE HUB BOLT
1. Install a washer and nut to a new bolt, as shown in the illustration.
2. Using a brass bar or an equivalent to hold the hub and bearing assembly, install the rear axle hub bolt by tightening the nut.

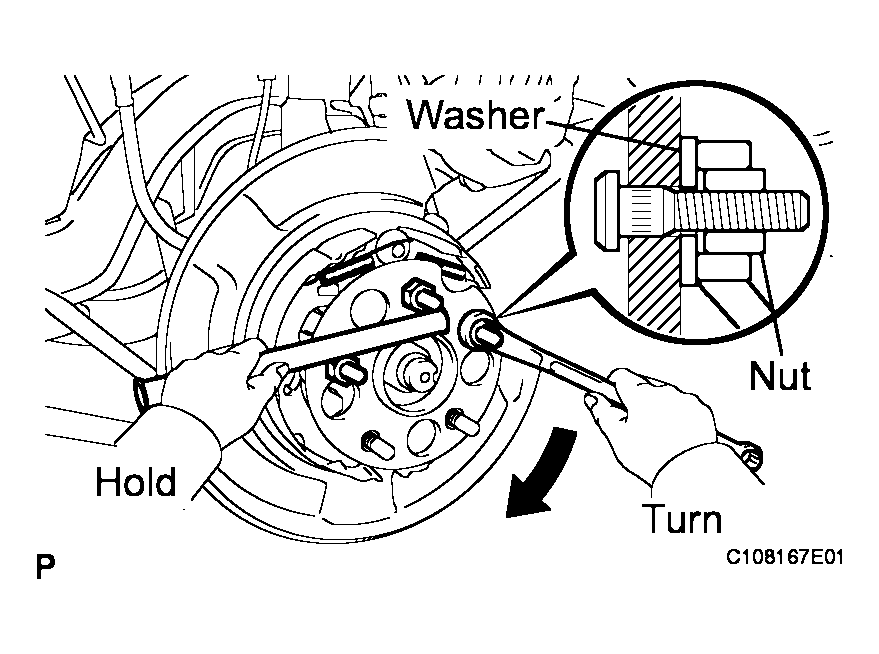

Fig 2: Installing Rear Axle Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DISC (See REASSEMBLY )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (See INSTALLATION )
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
