Rear Brake Pad, Brake Caliper & Brake Rotor: Disassembly

  1. REMOVE DISC BRAKE PAD KIT REAR (PAD ONLY)
  2. REMOVE ANTI-SQUEAL SHIM KIT REAR
    1. Remove the 2 anti-squeal shims and the pad wear indicator plate from each pad.
  3. REMOVE REAR DISC BRAKE PAD SUPPORT PLATE NO. 1
    1. Remove the rear disc brake pad support plate No. 1 from the rear disc brake cylinder mounting.
  4. REMOVE REAR DISC BRAKE PAD SUPPORT PLATE NO. 2
    1. Remove the rear disc brake pad support plate No. 2 from the rear disc brake cylinder mounting.
  5. REMOVE REAR DISC BRAKE BUSHING DUST BOOT
    1. Remove the 2 rear disc brake bushing dust boots from the rear disc brake cylinder mounting.

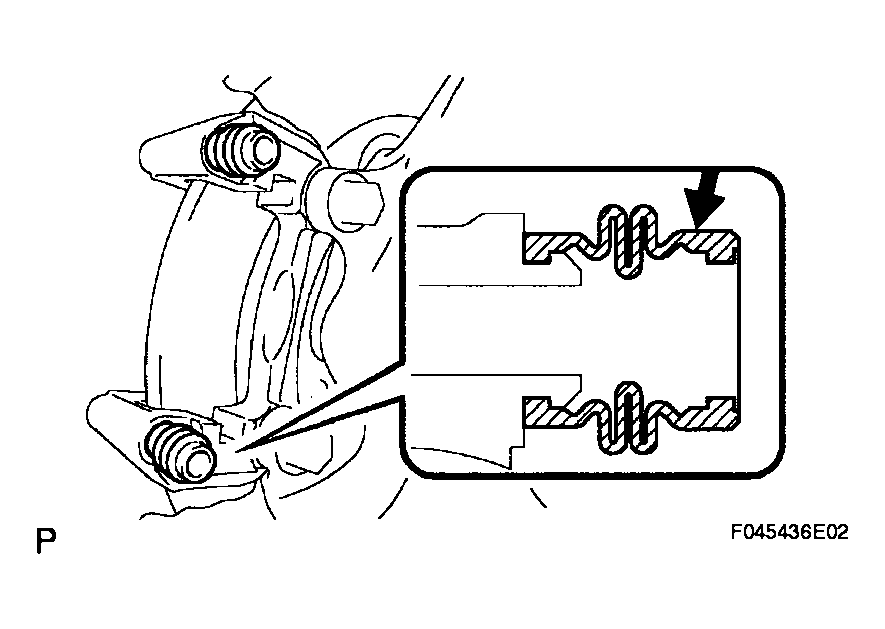

      Fig 1: Identifying Rear Disc Brake Bushing Dust Boot
      G04113441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR DISC BRAKE CYLINDER SLIDE BUSHING
    1. Remove the rear disc brake cylinder slide bushing from the rear disc brake cylinder slide pin No. 2.
      NOTE: Do not damage the front disc brake cylinder slide pin No. 2.

      HINT:

      Tape the screwdriver tip before use.

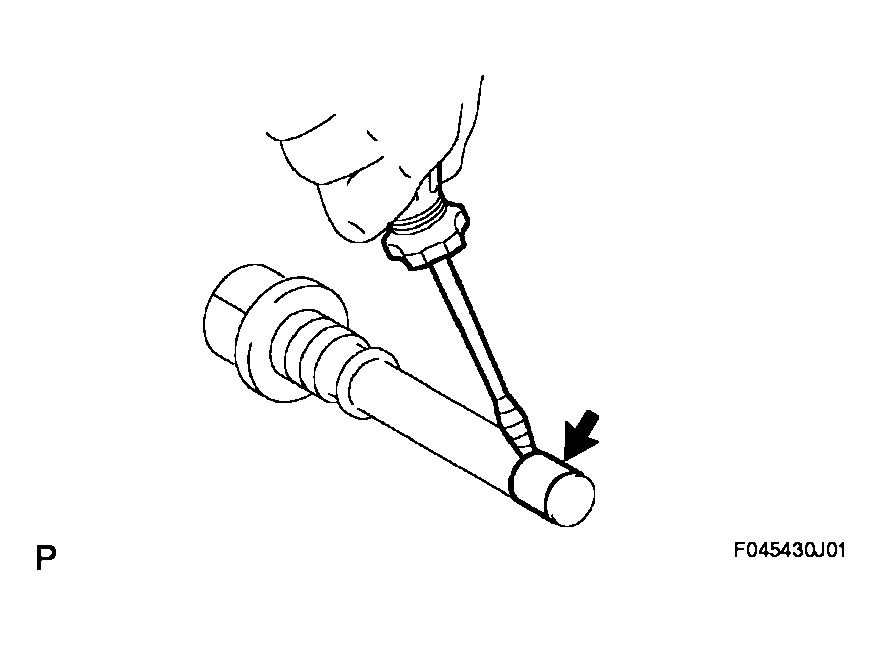

      Fig 2: Removing Rear Disc Brake Cylinder Slide Bush
      G04113442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR DISC BRAKE CYLINDER MOUNTING
    1. Remove the 2 bolts and the rear disc brake cylinder mounting.

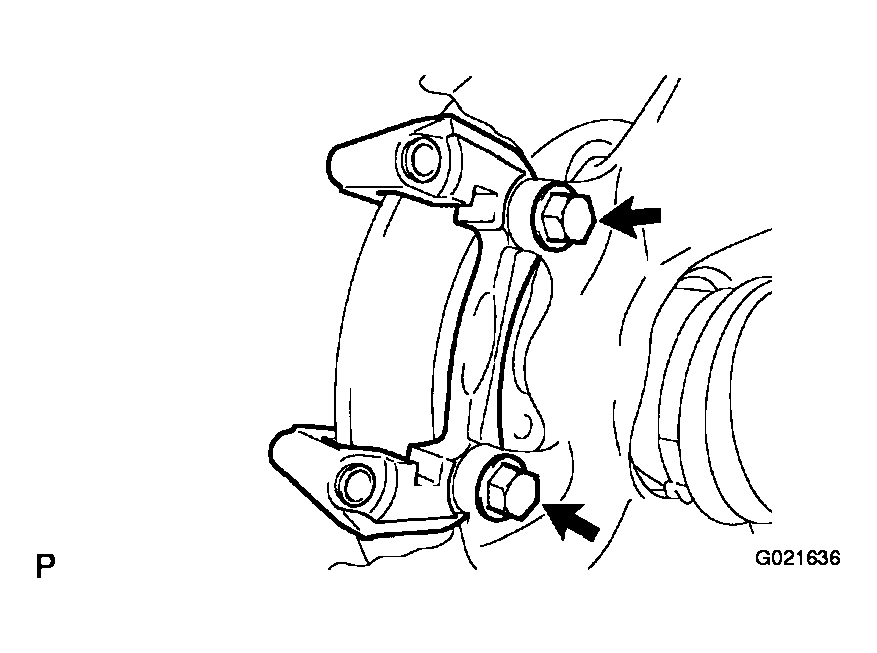

      Fig 3: Identifying Rear Disc Brake Cylinder Mounting Bolts
      G04113443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CYLINDER BOOT
    1. Using a screwdriver, remove the the cylinder boot.

      HINT:

      Tape the screwdriver tip before use.

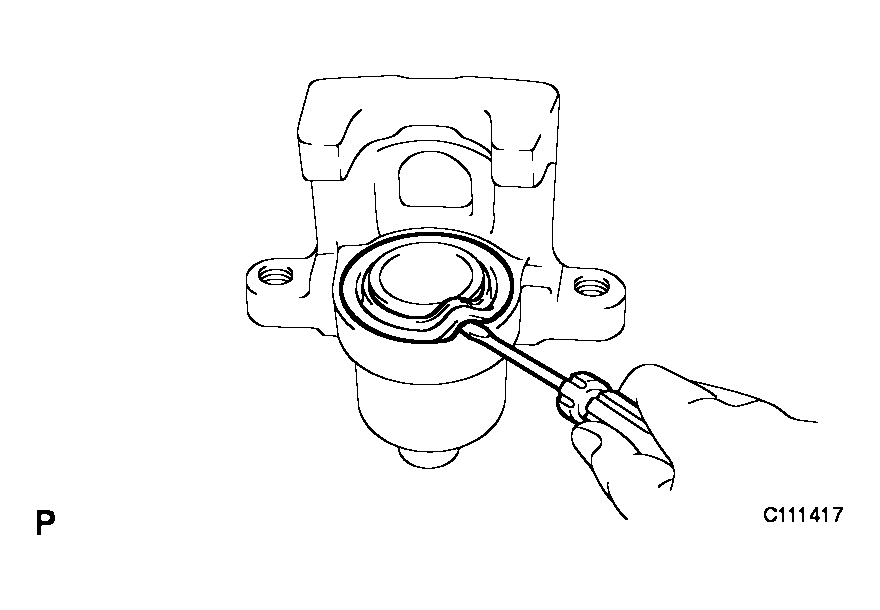

    Fig 4: Removing Cylinder Boot Using Screwdriver
    G04113444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DISC BRAKE PISTON
    1. Place a shop rug or a piece of cloth between the brake piston and the rear disc brake cylinder sub-assembly.
    2. Use compressed air to remove the piston from the disc brake cylinder assembly.
      CAUTION: Do not place your fingers in front of the brake piston when using compressed air.
      NOTE: Do not spatter the brake fluid.

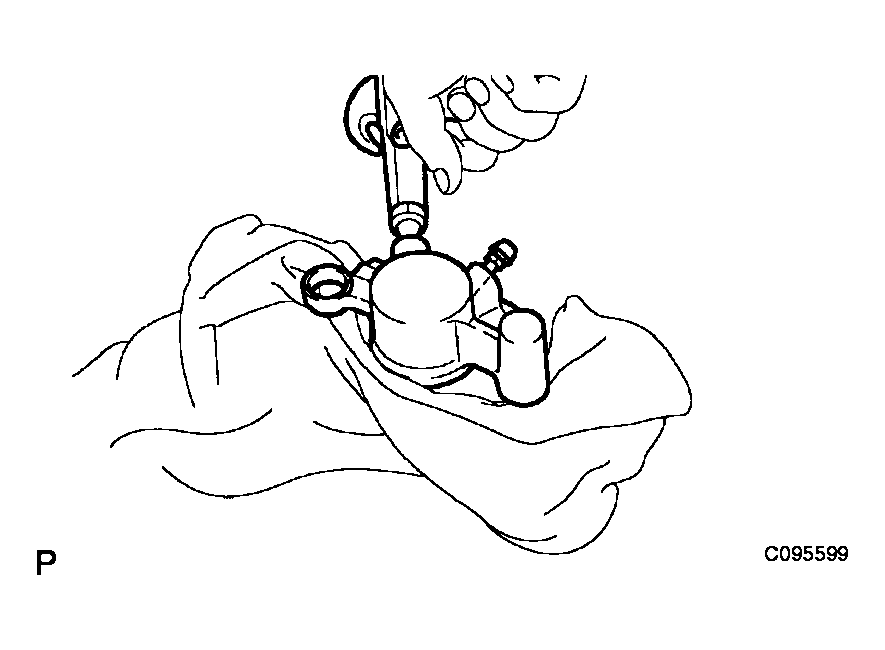

      Fig 5: Removing Rear Disc Brake Piston
      G04113445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE PISTON SEAL
    1. Using a screwdriver, remove the piston seal from the rear disc brake cylinder sub-assembly.
      NOTE: Do not damage the inner cylinder and the cylinder groove.

      HINT:

      Tape the screwdriver tip before use.

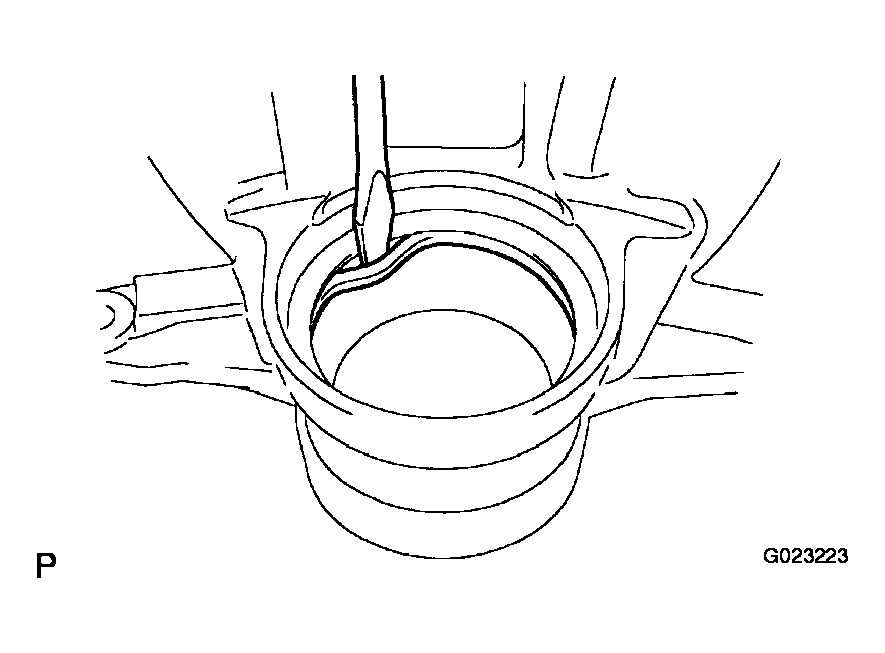

      Fig 6: Removing Piston Seal
      G04113446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR DISC BRAKE BLEEDER PLUG CAP
    1. Remove the bleeder plug cap from the rear disc brake bleeder plug.
  12. REMOVE REAR DISC BRAKE BLEEDER PLUG
    1. Remove the rear disc brake bleeder plug from the rear disc brake cylinder sub-assembly.
  13. REMOVE REAR DISC
    1. Put matchmarks on the rear disc and the axle hub.

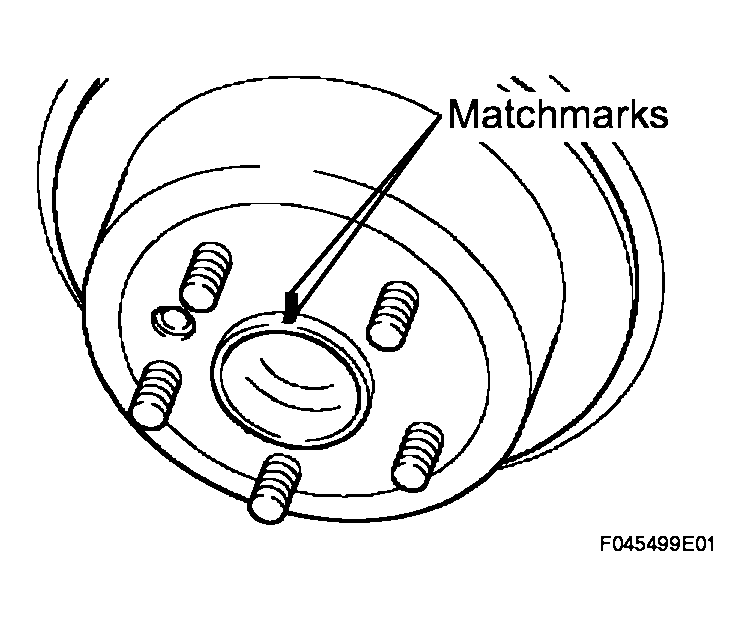

      Fig 7: Identifying Matchmarks On Rear Disc And Axle Hub
      G04113447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Release the parking brake, and remove the rear disc.

      HINT:

      If the disc cannot be removed easily, turn and press firmly the shoe adjuster until the wheel comes free.

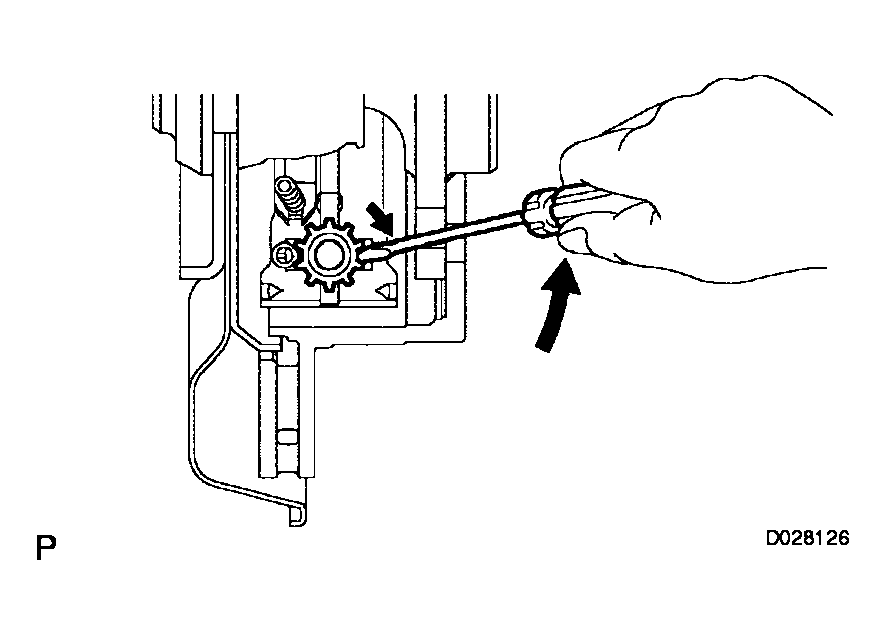

      Fig 8: Removing Rear Disc
      G04113448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
