Parking Brake Assembly: Disassembly

REMOVE REAR WHEEL
SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

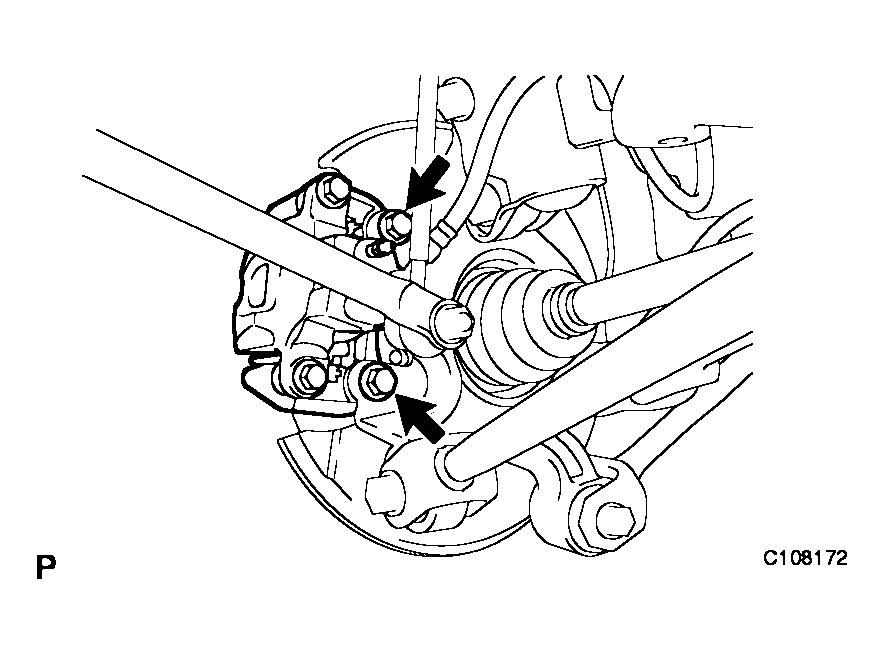

1. Remove the 2 bolts and separate the rear disc brake caliper assembly.
  HINT:

  Do not disconnect the flexible hose from the rear disc brake caliper assembly.

  Fig 1: Identifying Rear Disc Brake Caliper Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR DISC
1. Release the parking brake.
2. Put matchmarks on the rear disc and the axle hub.

  Fig 2: Putting Matchmarks On Rear Disc And Axle Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the rear disc.
  HINT:

  If the disc cannot be removed easily, turn the shoe adjuster until the wheel turns smoothy.

  Fig 3: Removing Rear Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE SHOE STRUT

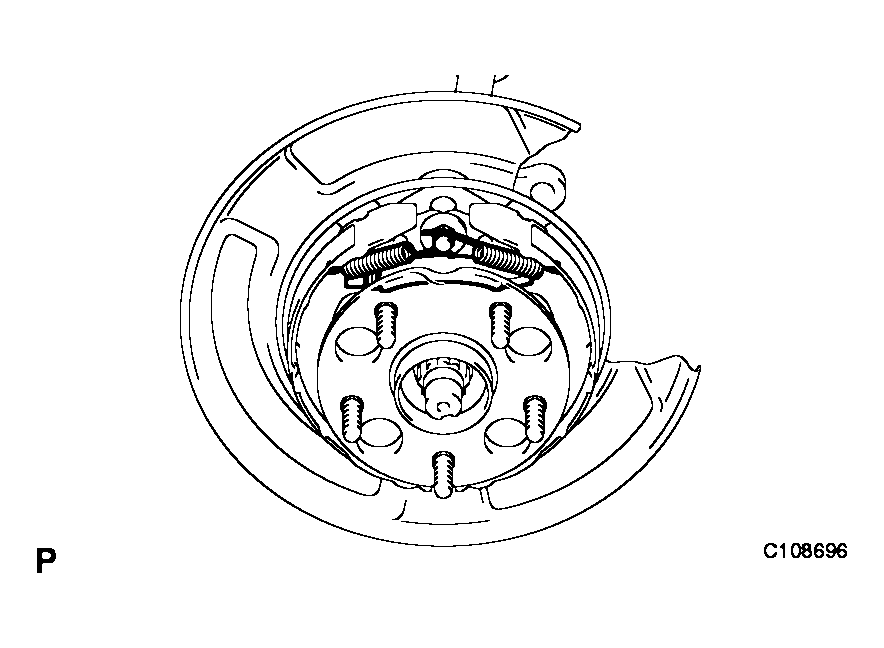

1. Using needle-nose pliers, remove the 2 parking brake shoe return tension No. 1 springs.
2. Remove the parking brake shoe strut and parking brake shoe strut compression spring.

  Fig 4: Identifying Parking Brake Shoe Strut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE NO. 1 SHOE ASSEMBLY
1. Remove the parking brake shoe hold down spring No. 1 cup, parking brake shoe hold down spring and parking brake shoe hold down spring No. 2 cup.
2. 2WD:
  Remove the parking brake shoe hold down spring No. 1 pin.

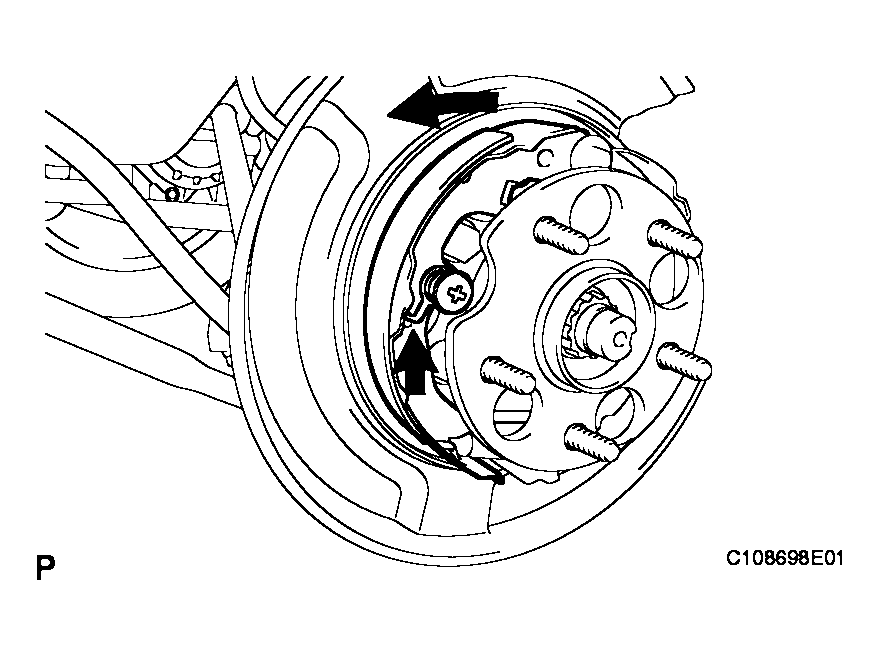

3. Disconnect the parking brake shoe return tension No. 2 spring and remove the parking brake No. 1 shoe assembly.

  Fig 5: Removing Parking Brake No. 1 Shoe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET
1. Remove the parking brake shoe adjusting screw set.
2. Remove the parking brake shoe return tension No. 2 spring.

  Fig 6: Identifying Parking Brake Shoe Adjusting Screw Set And Return Tension No. 2 Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE NO. 2 SHOE ASSEMBLY

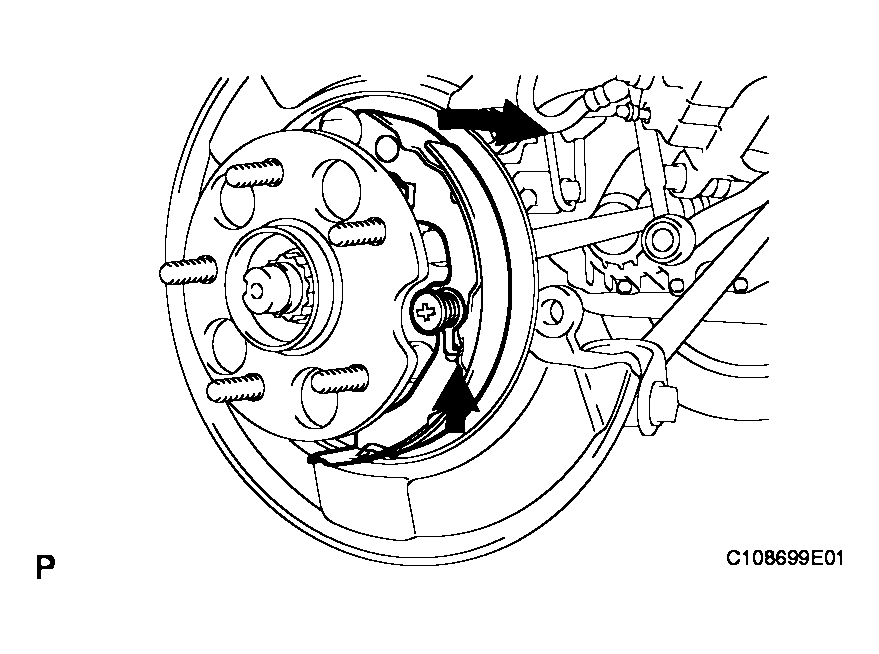

1. Remove the parking brake shoe hold down spring No. 1 cup, parking brake shoe hold down spring and parking brake shoe hold down spring No. 2 cup.

  Fig 7: Removing Parking Brake No. 2 Shoe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. 4WD:
  Remove the parking brake shoe hold down spring No. 2 pin.
3. Remove the parking brake No. 2 shoe assembly.
4. Using needle-nose pliers, disconnect the parking brake No. 3 cable assembly from the parking brake cable shoe lever.
  NOTE: Be careful not to damage parking brake No. 3 cable assembly.

  Fig 8: Disconnecting Parking Brake No. 3 Cable Assembly From Parking Brake Cable Shoe Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE PARKING BRAKE NO. 3 CABLE ASSEMBLY (See REMOVAL )
DISCONNECT SKID CONTROL SENSOR WIRE (for 2WD) (See ON-VEHICLE INSPECTION )
REMOVE REAR AXLE HUB AND BEARING ASSEMBLY (for 2WD) (See REMOVAL )
REMOVE PARKING BRAKE SHOE HOLD DOWN SPRING NO. 2 PIN (for 2WD)

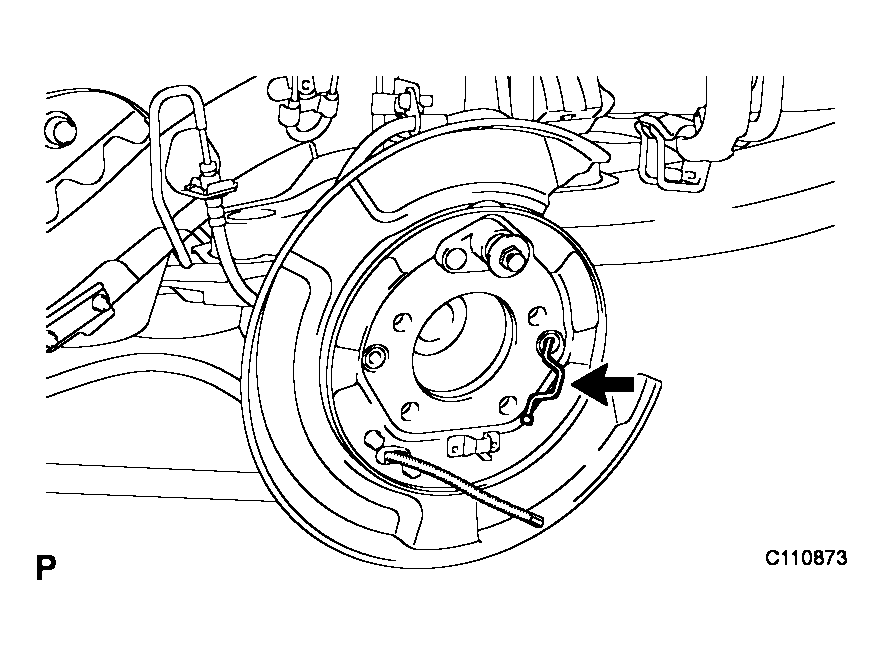

1. Remove the parking brake shoe hold down spring No. 2 pin from the backing plate.

  Fig 9: Identifying Parking Brake Shoe Hold Down Spring No. 2 Pin (For 2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE REAR SPEED SENSOR (for 4WD) (See REMOVAL )
REMOVE REAR AXLE SHAFT NUT (for 4WD) (See REMOVAL )
REMOVE REAR AXLE HUB AND BEARING ASSEMBLY (for 4WD) (See REMOVAL )
REMOVE PARKING BRAKE SHOE HOLD DOWN SPRING NO. 1 PIN (for 4WD)

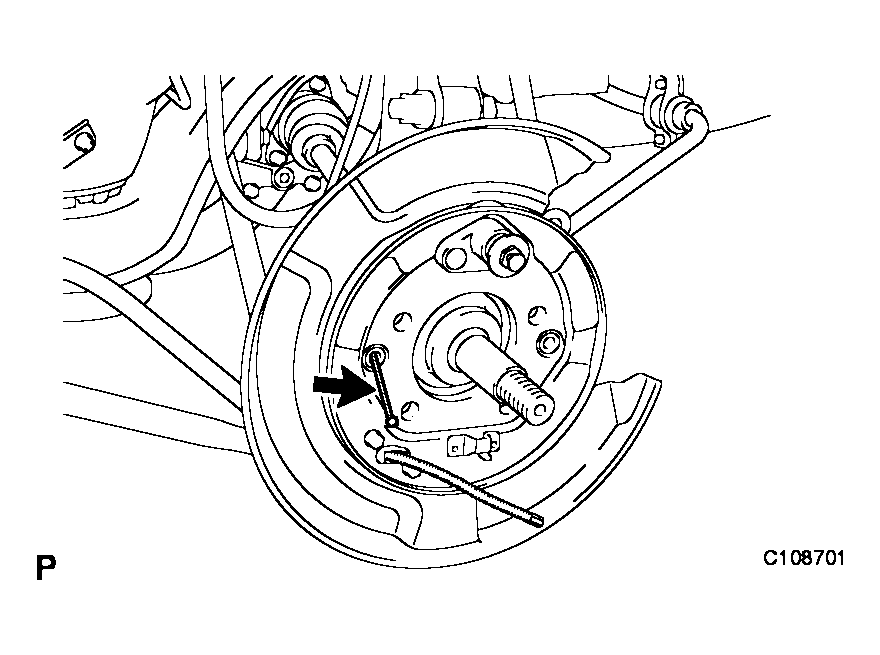

1. Remove the parking brake shoe hold down spring No. 1 pin from the backing plate.

  Fig 10: Identifying Parking Brake Shoe Hold Down Spring No. 1 Pin (For 4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE SHOE LEVER
1. Using a screwdriver, remove the C-washer.
2. Remove the shim and parking brake shoe lever from the parking brake No. 2 shoe assembly.

  Fig 11: Removing Parking Brake Shoe Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
