Parking Brake Cable: Removal

  1. REMOVE REAR WHEEL
  2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY (See  DISASSEMBLY  )
  3. REMOVE REAR DISC (See  DISASSEMBLY  )
  4. REMOVE PARKING BRAKE SHOE STRUT (See  DISASSEMBLY  )
  5. REMOVE PARKING BRAKE NO. 1 SHOE ASSEMBLY (See  DISASSEMBLY   )
  6. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET (See  DISASSEMBLY   )
  7. REMOVE PARKING BRAKE NO. 2 SHOE ASSEMBLY (See  DISASSEMBLY   )
  8. SEPARATE PARKING BRAKE NO. 3 CABLE ASSEMBLY

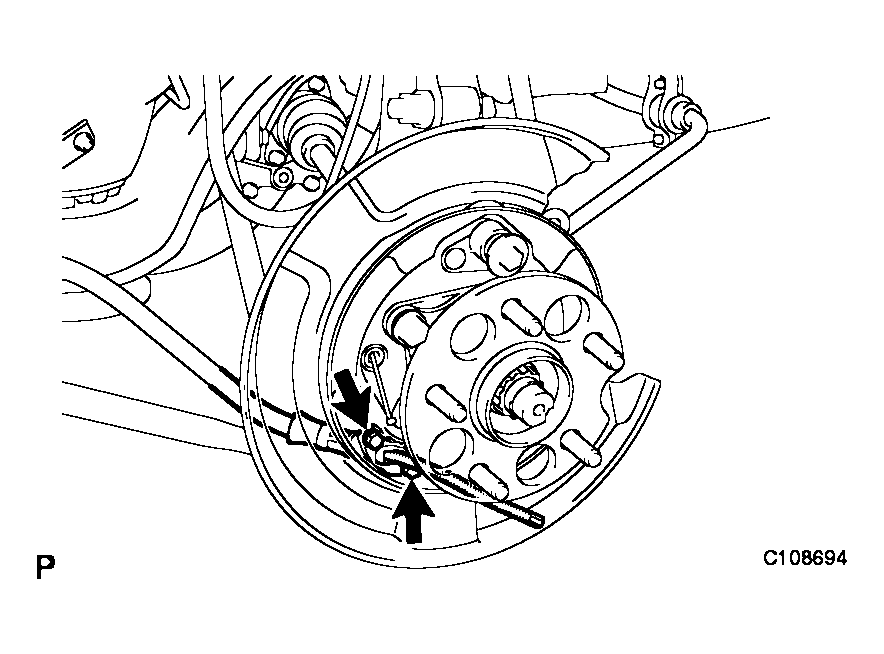

    1. Remove the 2 bolts and separate the parking brake No. 3 cable assembly from the backing plate.
  9. REMOVE FUEL TANK NO. 1 PROTECTOR (See  REMOVAL  )
  10. REMOVE PARKING BRAKE NO. 3 CABLE ASSEMBLY
    1. Remove the 2 bolts and separate the parking brake No. 2 and No. 3 cable assemblies from the parking brake equalizer.
      Fig 1: Separating Parking Brake No. 2 And No. 3 Cable Assemblies From Parking Brake Equalizer
      G04113494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, 4 nuts, and parking brake No. 3 cable assembly.
    3. Remove the parking brake cable support No. 1 bracket.

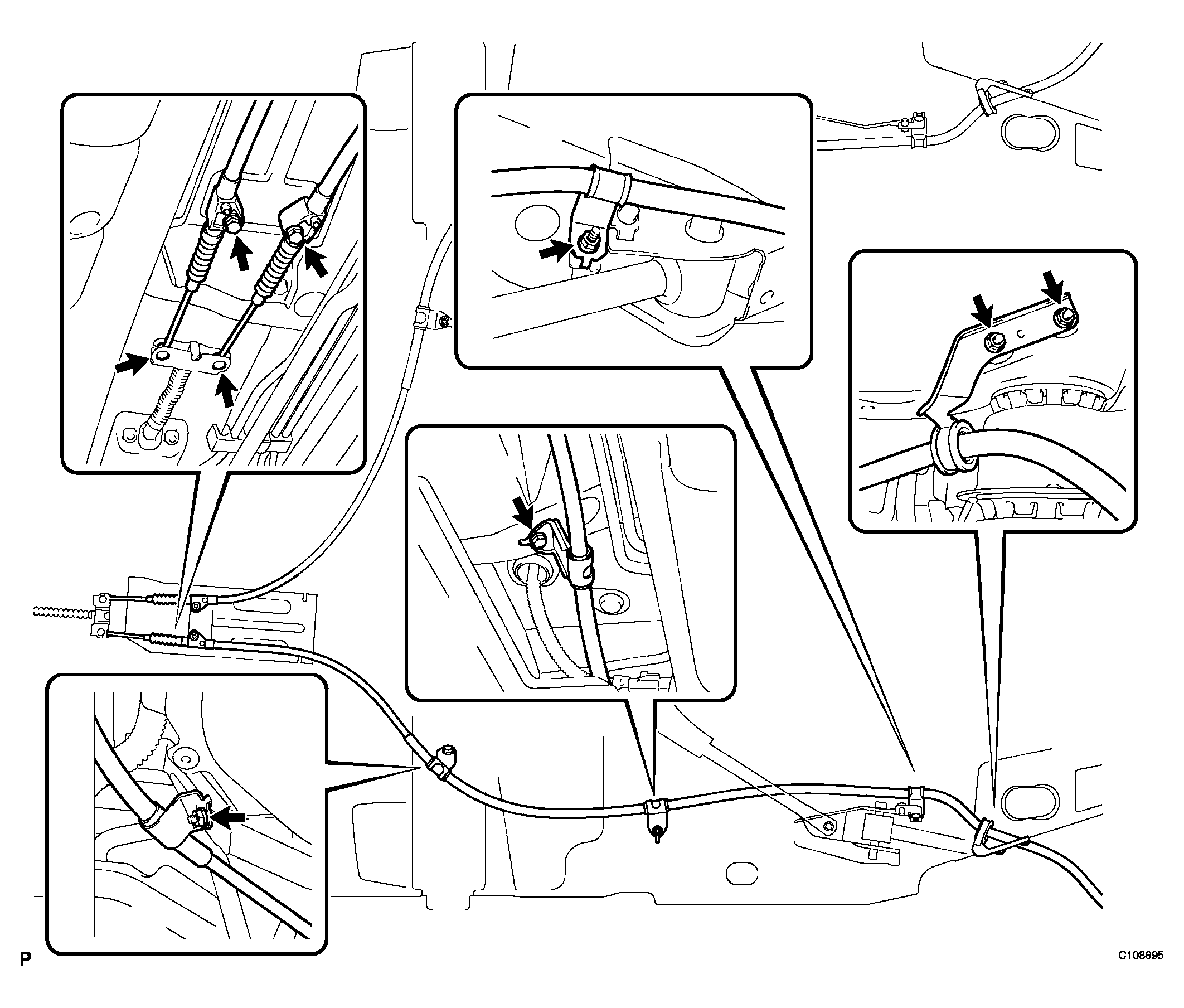

    Fig 2: Identifying Parking Brake No. 3 Cable Assembly
    G04113495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
