SKID CONTROL SENSOR (for 2WD): Installation

INSTALL SKID CONTROL SENSOR
1. Clean the contact surface of the axle hub and a new skid control sensor.
  NOTE: Prevent foreign matter from attaching to the sensor rotor.

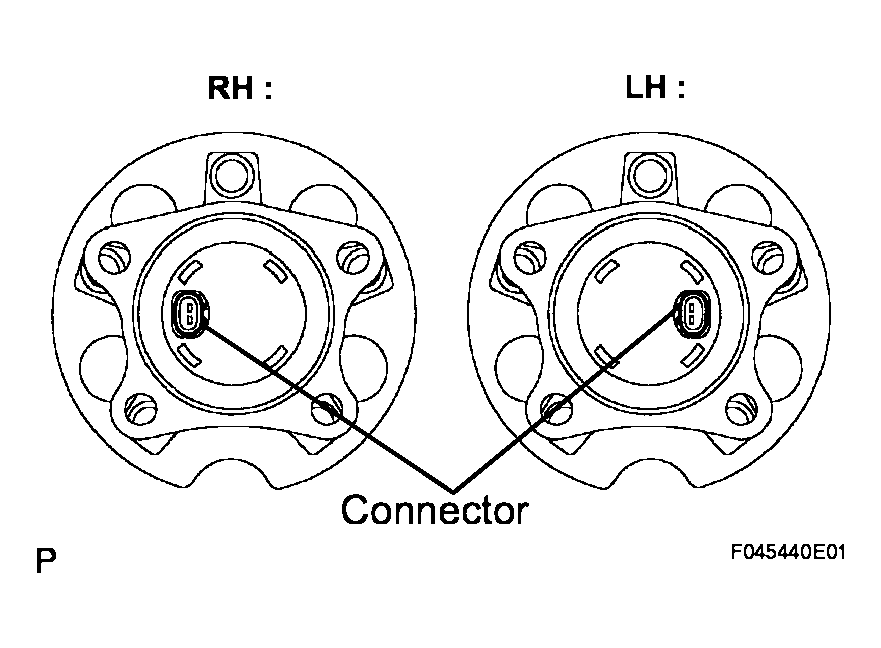

2. Place the skid control sensor on the axle hub so that the connector is positioned as shown in the illustration.

  Fig 1: Cleaning Contact Surface Of Axle Hub And Skid Control Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and press, install the skid control sensor to the axle hub.
  SST 09214-76011

  Fig 2: Installing Skid Control Sensor To Axle Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Keep the sensor away from magnets.
  - Do not use a hammer on the skid control sensor.
  - Check that there is no foreign matter such as iron chips on the detecting portion of the skid control sensor.
  - Slowly press the skid control sensor straight.
INSTALL REAR AXLE HUB AND BEARING ASSEMBLY (See REPLACEMENT )
INSTALL REAR DISC (See INSTALLATION )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (See INSTALLATION )
CONNECT SKID CONTROL SENSOR WIRE
1. Connect the connector to the skid control sensor.
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
(See REAR WHEEL ALIGNMENT )
CHECK SPEED SENSOR SIGNAL
(See DIAGNOSIS SYSTEM )

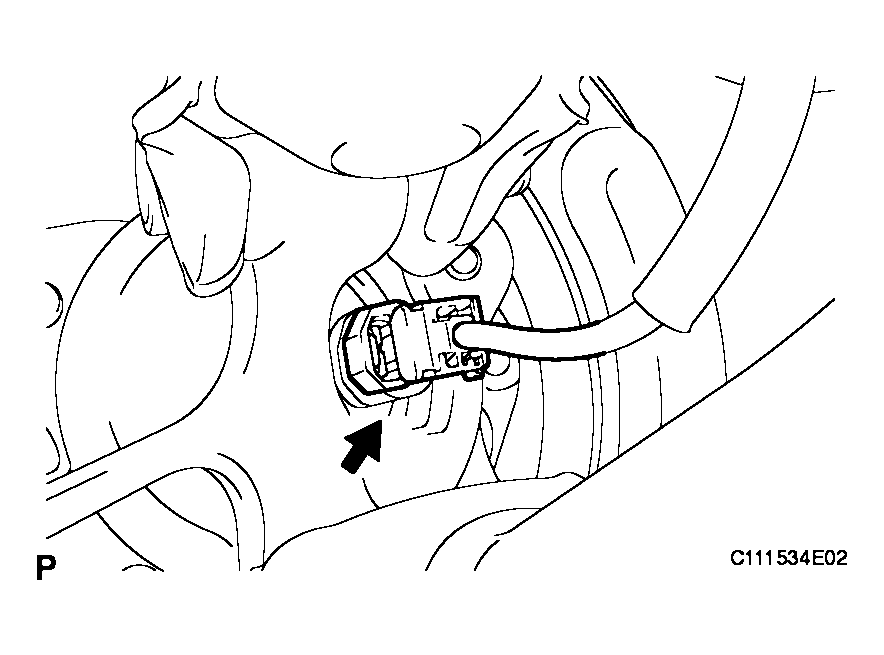

Fig 3: Connecting Connector To Skid Control Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
