Rear Brake Pad, Brake Caliper & Brake Rotor: Installation

INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY
1. Install the rear disc brake cylinder assembly.
  NOTE: Install the rear disc brake bush dust boot onto the groove of the rear disc brake cylinder.

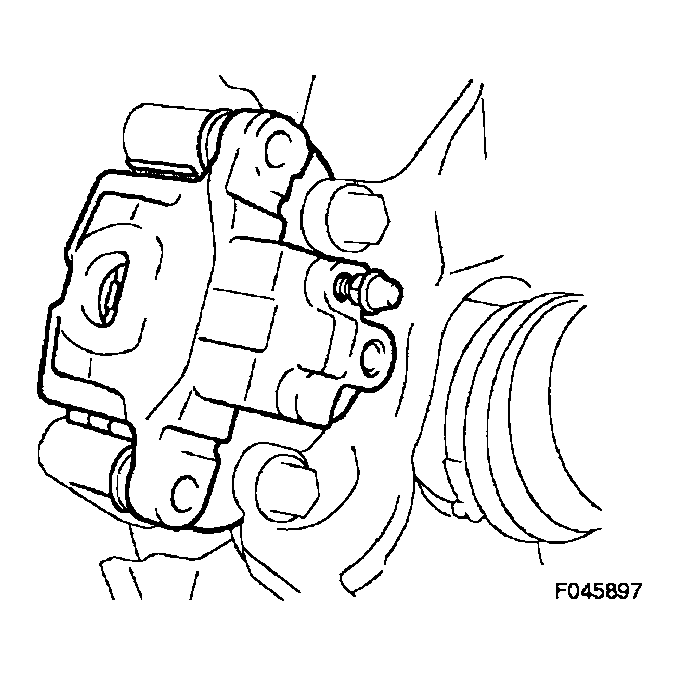

Fig 1: Identifying Rear Disc Brake Cylinder Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DISC BRAKE CYLINDER SLIDE PIN NO. 1
1. Apply the lithium soap base glycol grease to the sliding part and the seal surface of the slide pin.
2. Install the rear disc brake cylinder slide pin No. 1.
  Torque: 43 N*m (440 kgf*cm, 32 ft.*lbf)
INSTALL REAR DISC BRAKE CYLINDER SLIDE PIN NO. 2
1. Apply the lithium soap base glycol grease to the sliding part and the seal surface of the slide pin No. 2.
2. Install the rear disc brake cylinder slide pin No. 2.
  Torque: 43 N*m (440 kgf*cm, 32 ft.*lbf)

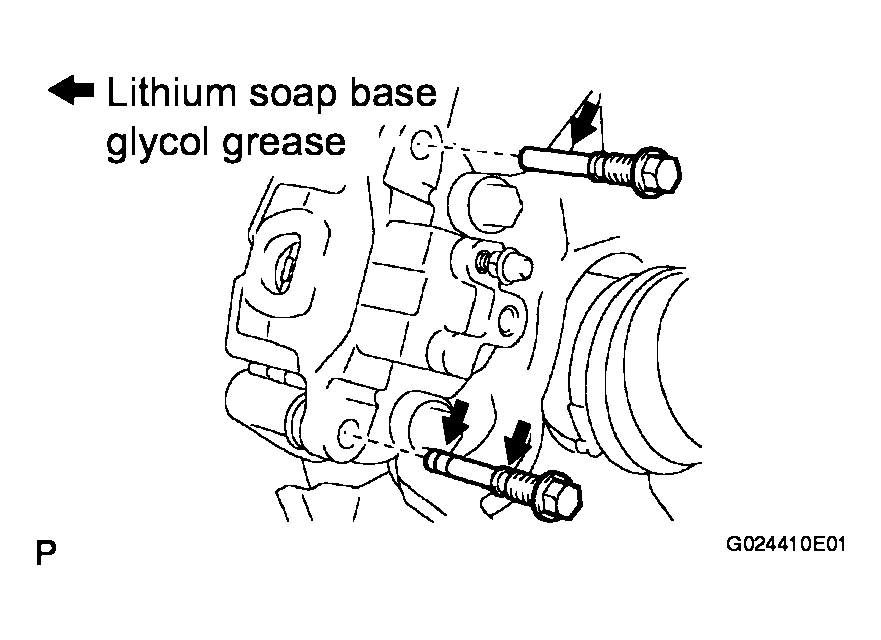

Fig 2: Identifying Rear Disc Brake Cylinder Slide Pin No. 1 And Slide Pin No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR FLEXIBLE HOSE
1. Connect the flexible hose with the union bolt and a new gasket.
  Torque: 29 N*m (300 kgf*cm, 21 ft.*lbf)
ADD RESERVOIR WITH BRAKE FLUID (See BLEEDING )
BLEED REAR BRAKE SYSTEM (See BLEEDING )
PERFORM ACCUMULATOR ZERO DOWN (See BLEEDING )
CHECK BRAKE FLUID LEVEL (See BLEEDING )
CHECK BRAKE FLUID LEAKAGE
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CLEAR DTC
(See DTC CHECK / CLEAR )
