Radio Antenna Cord: Removal

  1. REMOVE TABLE OF BOLT, SCREW AND NUT (See  REMOVAL  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working. (See AIRBAG SYSTEM )
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See  REMOVAL  )
  4. REMOVE CONSOLE PANEL UPPER FRONT (See  REMOVAL  )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REMOVAL  )
  6. REMOVE RADIO RECEIVER (See   5 )
  7. REMOVE CENTER CLUSTER INTEGRATION SWITCH (w/o Navigation System) (See  REMOVAL  )
  8. REMOVE MULTI-DISPLAY (w/ Navigation System) (See  REMOVAL  )
  9. REMOVE STEERING WHEEL NO.2 COVER LOWER (See  ON-VEHICLE INSPECTION  )
  10. REMOVE STEERING WHEEL NO.3 COVER LOWER (See  ON-VEHICLE INSPECTION  )
  11. REMOVE STEERING PAD (See  REMOVAL  )
  12. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  13. REMOVE STEERING COLUMN COVER (See  REMOVAL  )
  14. REMOVE TILT & TELESCOPIC SWITCH (w/ Power Tilt and Power Telescopic) (See  REMOVAL  )
  15. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See  REMOVAL  )
  16. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  17. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH (See  REMOVAL  )
  18. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  ON-VEHICLE INSPECTION  )
  19. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  20. REMOVE COMBINATION METER ASSEMBLY (See  REMOVAL  )
  21. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
  22. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (See  REMOVAL  )
  23. REMOVE INSTRUMENT PANEL NO.2 UNDER COVER SUB-ASSY (See  REMOVAL  )
  24. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  25. REMOVE FLOOR CARPET COVER CENTER LH (See  REMOVAL  )
  26. REMOVE FLOOR CARPET COVER CENTER RH (See  REMOVAL  )
  27. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See  REMOVAL  )
  28. REMOVE FRONT PILLAR GARNISH LH (See  REMOVAL  )
  29. REMOVE FRONT PILLAR GARNISH RH (See  REMOVAL  )
  30. REMOVE INSTRUMENT PANEL NO.1 REGISTER ASSEMBLY (See  REMOVAL  )
  31. REMOVE INSTRUMENT PANEL NO.1 REGISTER ASSEMBLY LOWER (See  REMOVAL  )
  32. REMOVE INSTRUMENT PANEL ASSEMBLY (See  REMOVAL  )
  33. REMOVE NO.2 RADIO ANTENNA CORD (w/o Navigation System)
    1. Disengage the 6 clamps and remove the No.2 radio antenna cord.

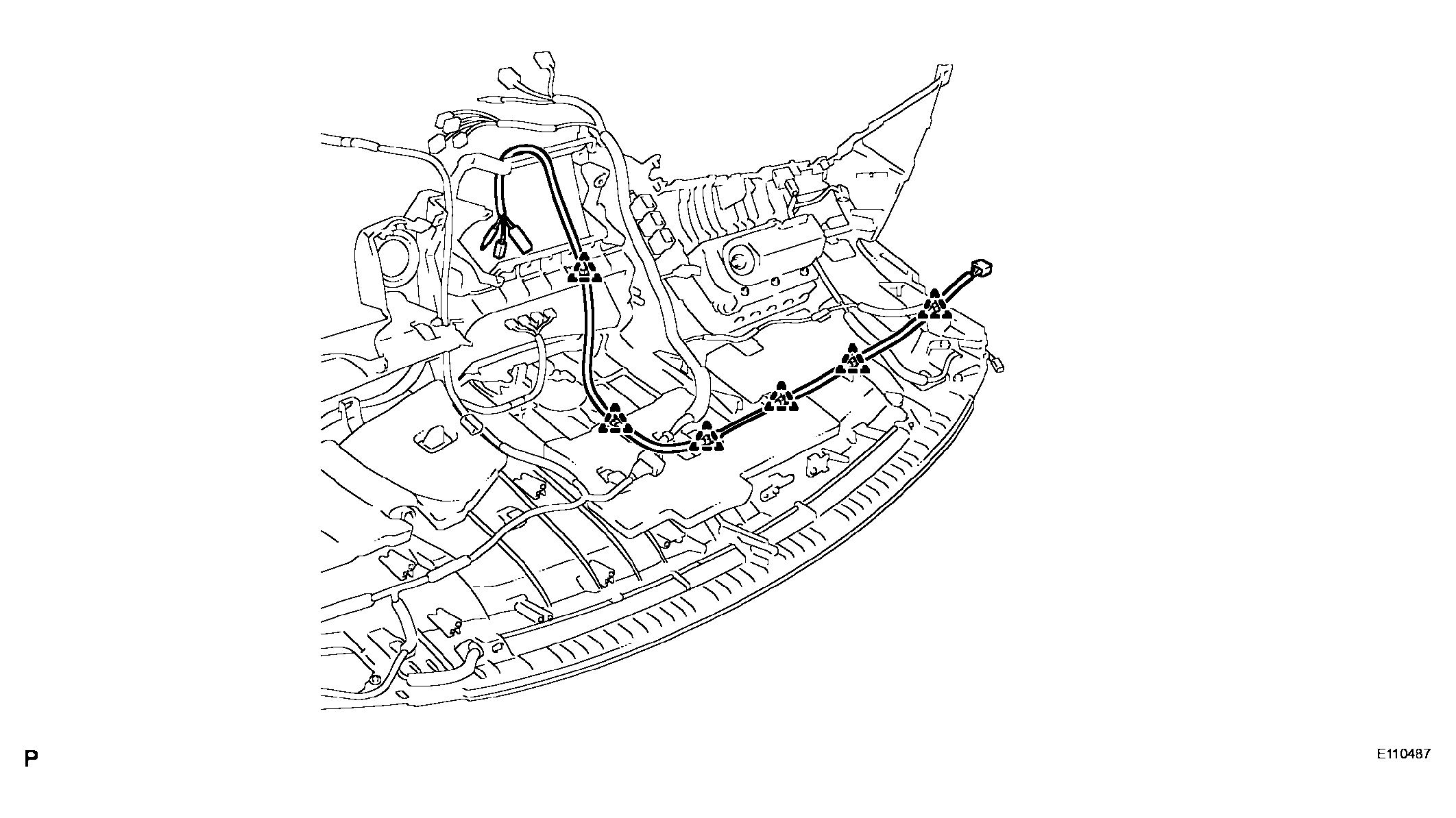

      Fig 1: Locating Clamps On No.2 Radio Antenna Cord (W/O Navigation System)
      G04115663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO.2 RADIO ANTENNA CORD (w/ Navigation System)
    1. Remove the 2 screws and the navigation antenna.
    2. Disengage the 6 clamps and remove the No.2 radio antenna cord.

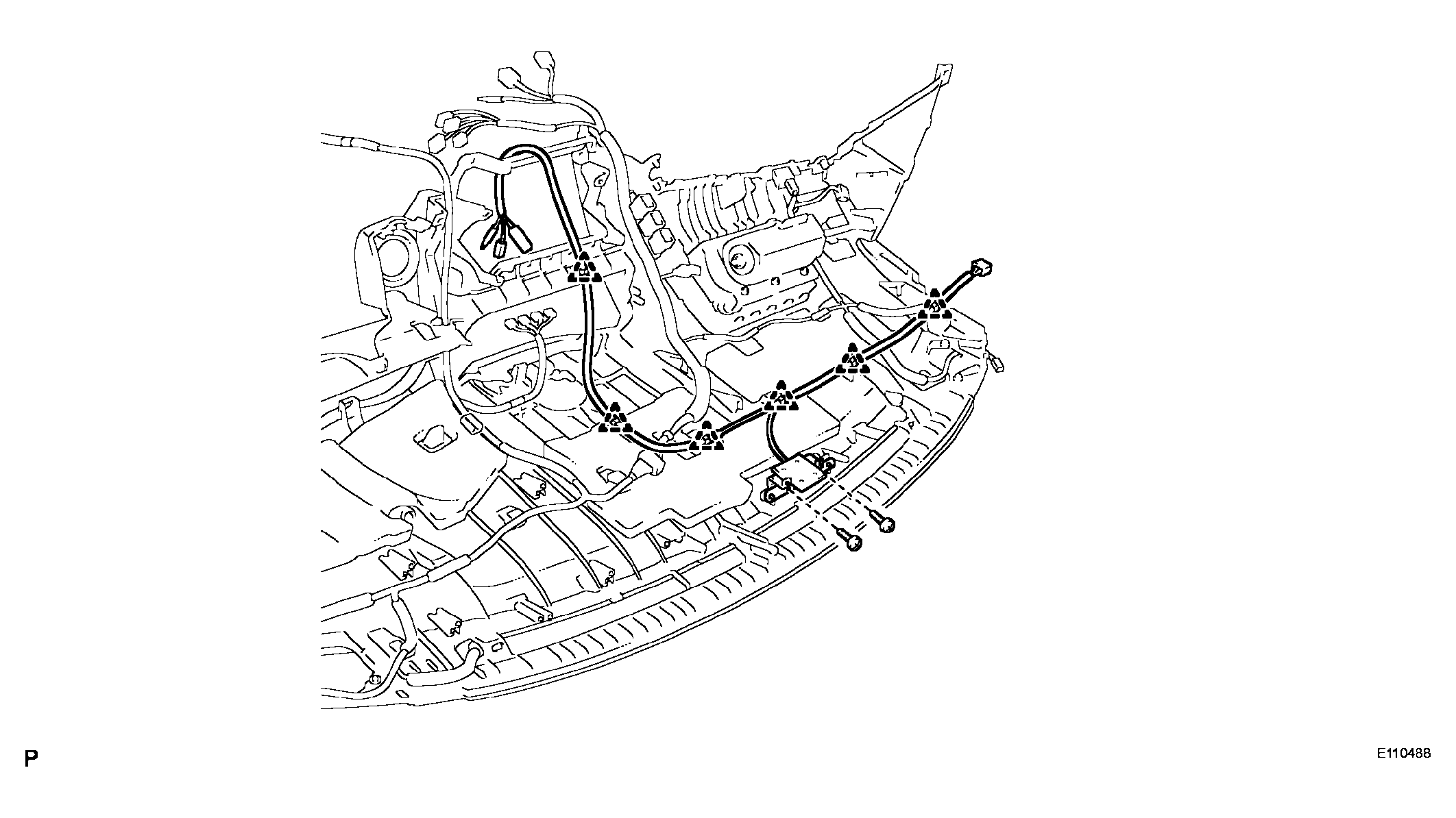

      Fig 2: Locating Clamps On No.2 Radio Antenna Cord (W/ Navigation System)
      G04115664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE TONNEAU COVER ASSEMBLY
  36. REMOVE DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  37. REMOVE JACK CARRIER SUPPORT
  38. REMOVE JACK ASSEMBLY
  39. REMOVE JACK CARRIER ASSEMBLY
  40. REMOVE DECK FLOOR BOX FRONT (See  REMOVAL  )
  41. REMOVE DECK FLOOR BOX REAR (See  REMOVAL  )
  42. REMOVE DECK NO.3 BOARD SUB-ASSEMBLY (See  REMOVAL  )
  43. REMOVE DECK NO.2 BOARD SUB-ASSEMBLY (See  REMOVAL  )
  44. REMOVE BACK DOOR WEATHERSTRIP
  45. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
  46. REMOVE DECK SIDE TRIM BOX LH (See  REMOVAL  )
  47. REMOVE DECK SIDE TRIM BOX RH
  48. REMOVE REAR SEAT TRACK BRACKET COVER (See  REMOVAL  )
  49. REMOVE REAR SEAT ASSEMBLY LH (See  REMOVAL  )
  50. REMOVE REAR SEAT TRACK BRACKET COVER (See  REMOVAL  )
  51. REMOVE REAR SEAT ASSEMBLY RH (See  REMOVAL  )
  52. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  53. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  54. REMOVE REAR DOOR SCUFF PLATE LH (See  REMOVAL  )
  55. REMOVE REAR DOOR SCUFF PLATE RH
  56. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  57. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  58. REMOVE LAP BELT OUTER ANCHOR COVER (See  REMOVAL  )
  59. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY LH (See  REMOVAL  )
  60. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY RH
  61. REMOVE CENTER PILLAR GARNISH LOWER LH (See  REMOVAL  )
  62. REMOVE CENTER PILLAR GARNISH LOWER RH
  63. REMOVE CENTER PILLAR GARNISH LH (See  REMOVAL  )
  64. REMOVE CENTER PILLAR GARNISH RH
  65. REMOVE DECK SIDE TRIM COVER LH (See  REMOVAL  )
  66. REMOVE DECK SIDE TRIM COVER RH
  67. SEPARATE REAR NO.1 SEAT BELT ASSEMBLY OUTER LH (See  REMOVAL  )
  68. SEPARATE REAR NO.1 SEAT BELT ASSEMBLY OUTER RH
  69. REMOVE REAR SEAT SIDE COVER LH (See  REMOVAL  )
  70. REMOVE REAR SEAT SIDE COVER RH
  71. REMOVE REAR FLOOR FINISH SIDE PLATE LH (See  REMOVAL  )
  72. REMOVE REAR FLOOR FINISH SIDE PLATE RH
  73. REMOVE ROPE HOOK (See  REMOVAL  )
  74. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (See  REMOVAL  )
  75. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
  76. REMOVE NO.2 ROOM LIGHT ASSEMBLY (See  REMOVAL  )
  77. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH (See  REMOVAL  )
  78. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH
  79. REMOVE TELEVISION BASE (w/ RSE) (See  TELEVISION DISPLAY  )
  80. REMOVE TELEVISION DISPLAY (w/ RSE) (See  REMOVAL  )
  81. REMOVE ASSIST GRIP SUB-ASSEMBLY (See  REMOVAL  )
  82. REMOVE RAIN SENSOR (w/ Rain Sensor) (See  RAIN SENSOR  )
  83. REMOVE NO.1 ROOM LIGHT ASSEMBLY (See  REMOVAL  )
  84. REMOVE MAP LIGHT ASSEMBLY (See  REMOVAL  )
  85. REMOVE LH VISOR ASSEMBLY (See  REMOVAL  )
  86. REMOVE RH VISOR ASSEMBLY
  87. REMOVE VISOR HOLDER (See  REMOVAL  )
  88. REMOVE ROOF HEADLINING ASSEMBLY (See  REMOVAL  )
  89. REMOVE RADIO ANTENNA CORD
    1. Remove the tape and radio antenna cord from the roof headlining assembly.

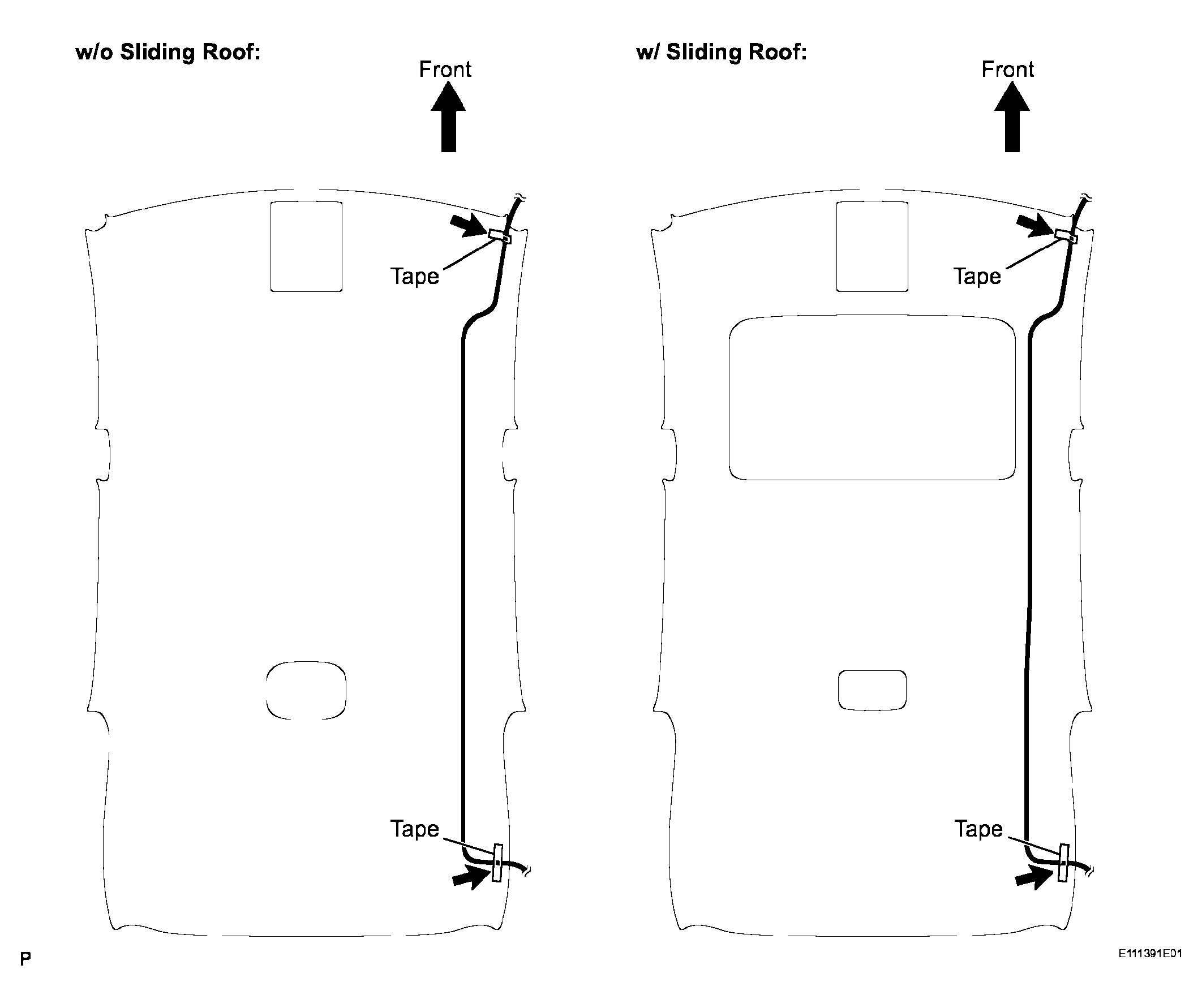

      Fig 3: Locating Tape On Radio Antenna Cord
      G04115665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  90. REMOVE BACK WINDOW PANEL TRIM UPPER (w/o Power Back Door) (See  DISASSEMBLY  )
  91. REMOVE BACK DOOR TRIM BOARD LH (w/ Power Back Door) (See  DISASSEMBLY  )
  92. REMOVE BACK WINDOW PANEL TRIM UPPER (w/ Power Back Door) (See  DISASSEMBLY  )
  93. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER (See  DISASSEMBLY  )
  94. REMOVE BACK DOOR TRIM PANEL ASSEMBLY (See  DISASSEMBLY  )
  95. REMOVE BACK DOOR TRIM COVER LH (See  DISASSEMBLY  )
  96. REMOVE BACK DOOR TRIM COVER RH (See  DISASSEMBLY  )
  97. REMOVE NO.3 RADIO ANTENNA CORD
    1. Disconnect the connector.

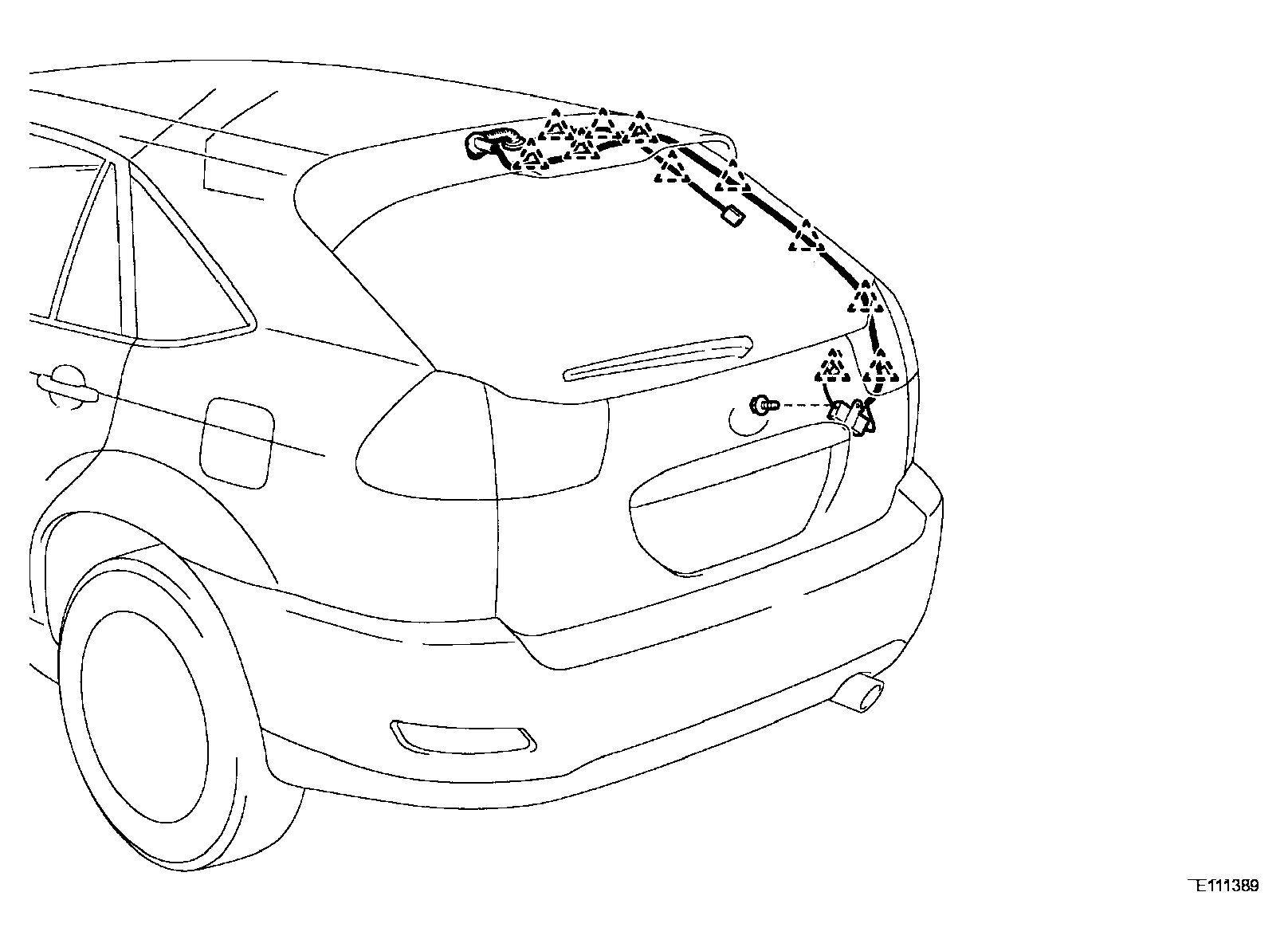

      Fig 4: Identifying No.3 Radio Antenna Cord
      G04115666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 11 clamps.
    3. Remove the bolt and the No.3 radio antenna cord.
