Instrument Panel Safety Pad: Disassembly

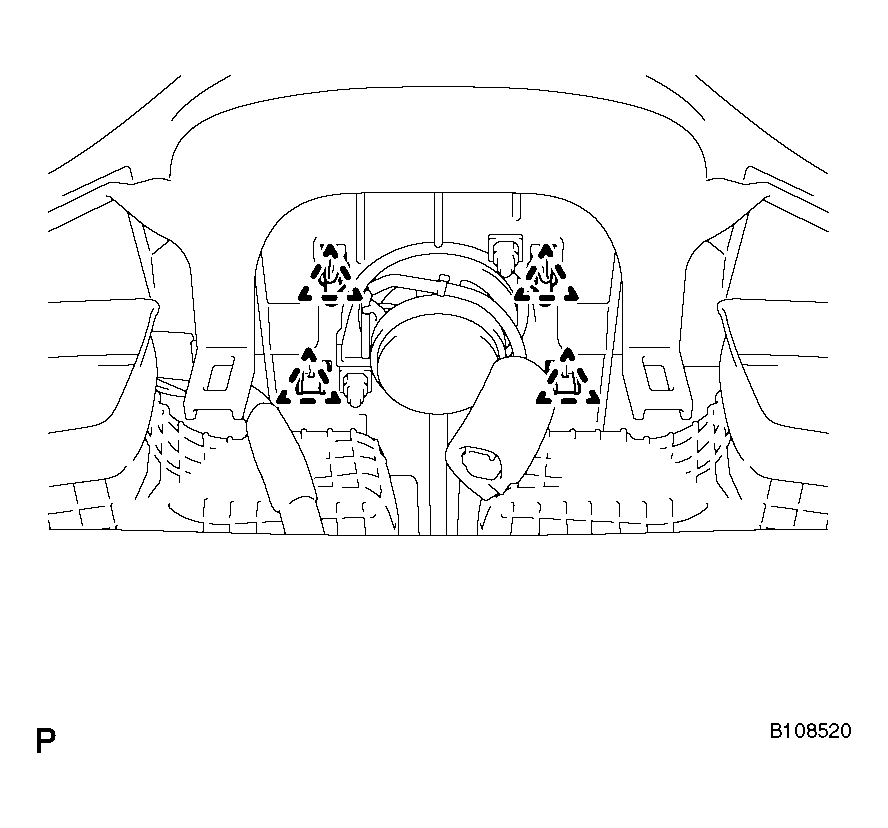

  1. REMOVE SPEAKER HOLE NO. 1 COVER (w/ Mark Levinson Speaker System)
    1. Disengage the 4 clips and remove the speaker hole No. 1 cover.
      Fig 1: Identifying Speaker Hole No. 1 Cover (W/ Mark Levinson Speaker System)
      G04116170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
    1. Disengage the 2 clips and remove the instrument panel No. 1 speaker panel sub-assembly.
    Fig 2: Identifying Instrument Panel No. 1 Speaker Panel Sub-Assembly
    G04116171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedures for the instrument panel No. 2 speaker panel sub-assembly and the instrument panel No. 1 speaker panel sub-assembly.

  4. REMOVE FRONT NO. 2 SPEAKER (w/ Mark Levinson Speaker System) (See  REMOVAL  )
  5. REMOVE FRONT NO. 2 SPEAKER (See  FRONT NO. 2 SPEAKER (FOR DRIVER SIDE)  )
  6. REMOVE FRONT NO. 2 SPEAKER (See  FRONT NO. 2 SPEAKER (FOR DRIVER SIDE)  )
  7. REMOVE LIGHT CONTROL RHEOSTAT
    1. Disengage the 2 claws and remove the light control rheostat.
      Fig 3: Identifying Light Control Rheostat
      G04116172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SIDE DEFROSTER NO. 3 NOZZLE DUCT
    1. Remove the screw < C > and the side defroster No. 3 nozzle duct.
  9. REMOVE SIDE DEFROSTER NO. 4 NOZZLE DUCT

    HINT:

    Use the same procedures for the side defroster No. 4 nozzle duct and the side defroster No. 3 nozzle duct.

    Fig 4: Identifying Side Defroster Nozzle Duct
    G04116173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE INSTRUMENT PANEL NO. 1 PIN
    1. Remove the screw < C > and the instrument panel No. 1 pin.
      Fig 5: Identifying Instrument Panel No. 1 Pin
      G04116174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 3 screws < C > and the defroster nozzle assembly.

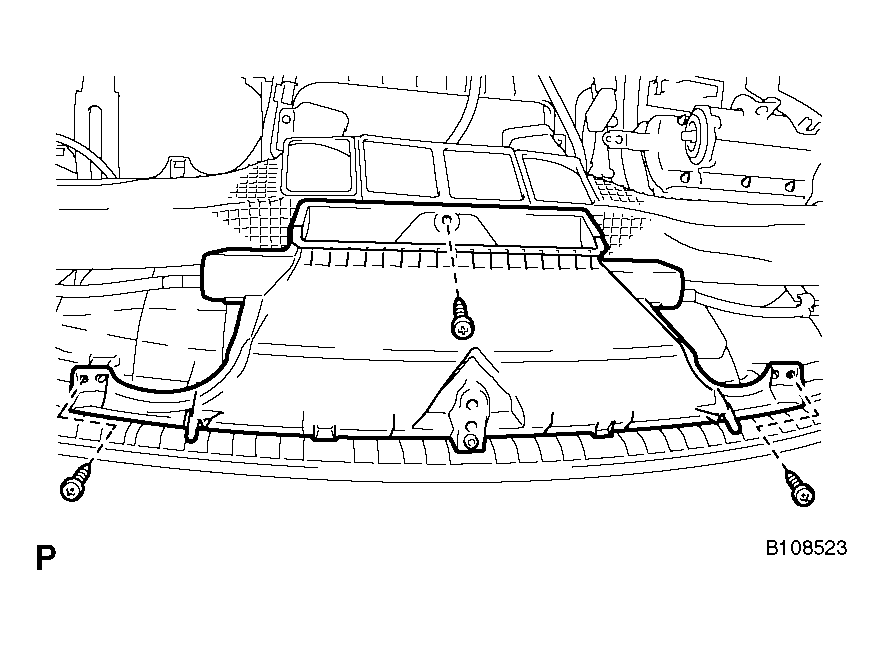

      Fig 6: Identifying Defroster Nozzle Assembly
      G04116175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

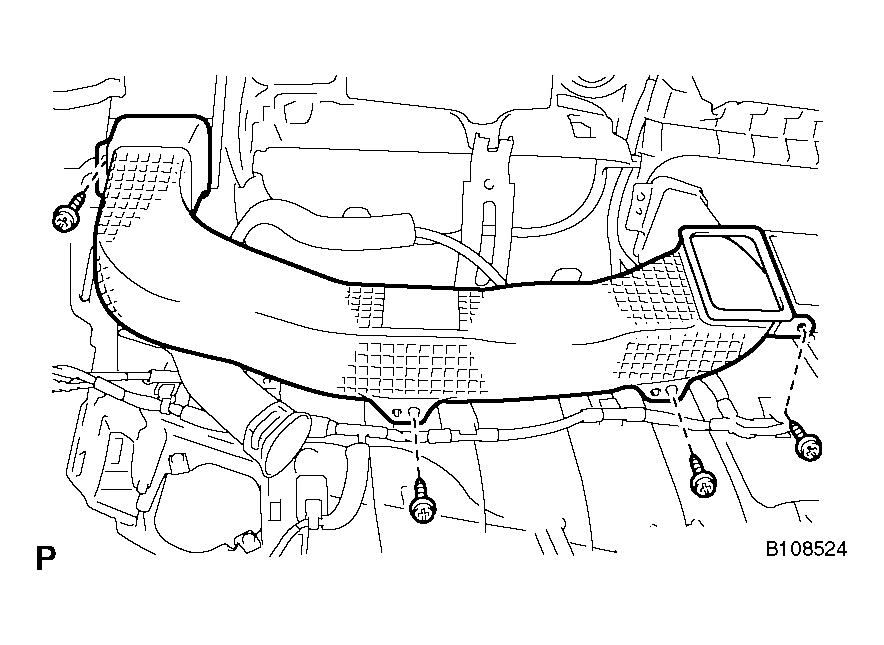

  12. REMOVE HEATER TO REGISTER NO. 1 DUCT
    1. Remove the 4 screws < C > and the heater to register No. 1 duct.
  13. REMOVE HEATER TO REGISTER NO. 4 DUCT

    HINT:

    Use the same procedures for the heater to register No. 4 duct and the heater to register No. 1 duct.

    Fig 7: Identifying Heater To Register Duct
    G04116176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE HEATER TO REGISTER CENTER SUB DUCT
    1. Remove the 2 screws < C > and the heater to register center sub duct.

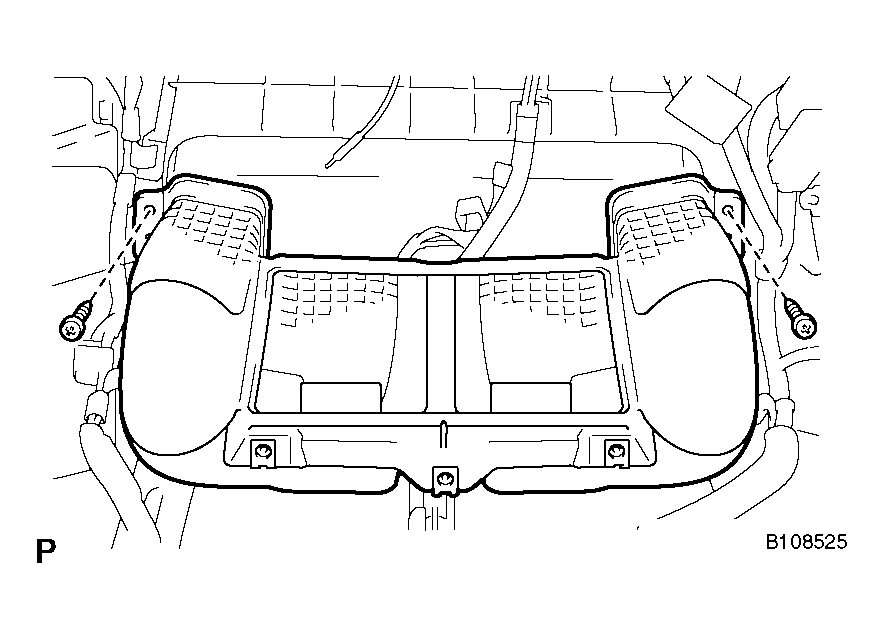

      Fig 8: Identifying Heater To Register Center Sub Duct
      G04116177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE SIDE DEFROSTER NO. 1 NOZZLE DUCT
    1. Remove the screw < C > and the side defroster No. 1 nozzle duct.
  16. REMOVE SIDE DEFROSTER NO. 2 NOZZLE DUCT

    HINT:

    Use the same procedures for the side defroster No. 2 nozzle duct and the side defroster No. 1 nozzle duct.

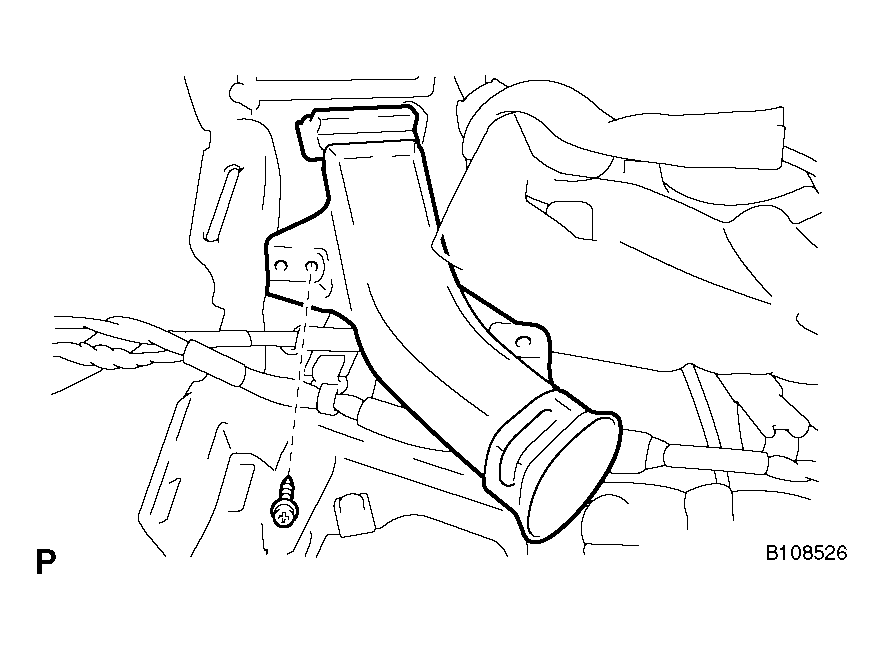

    Fig 9: Identifying Side Defroster Nozzle Duct
    G04116178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE SIDE DEFROSTER NO. 1 NOZZLE
    1. Disengage the 2 claws and remove the side defroster No. 1 nozzle.
  18. REMOVE SIDE DEFROSTER NO. 2 NOZZLE

    HINT:

    Use the same procedures for the side defroster No. 2 nozzle and the side defroster No. 1 nozzle.

    Fig 10: Identifying Side Defroster Nozzle
    G04116179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE WINDSHIELD WIPER RELAY ASSEMBLY (w/ Rain Sensor)
    1. Remove the screw < C > and the windshield wiper relay assembly.

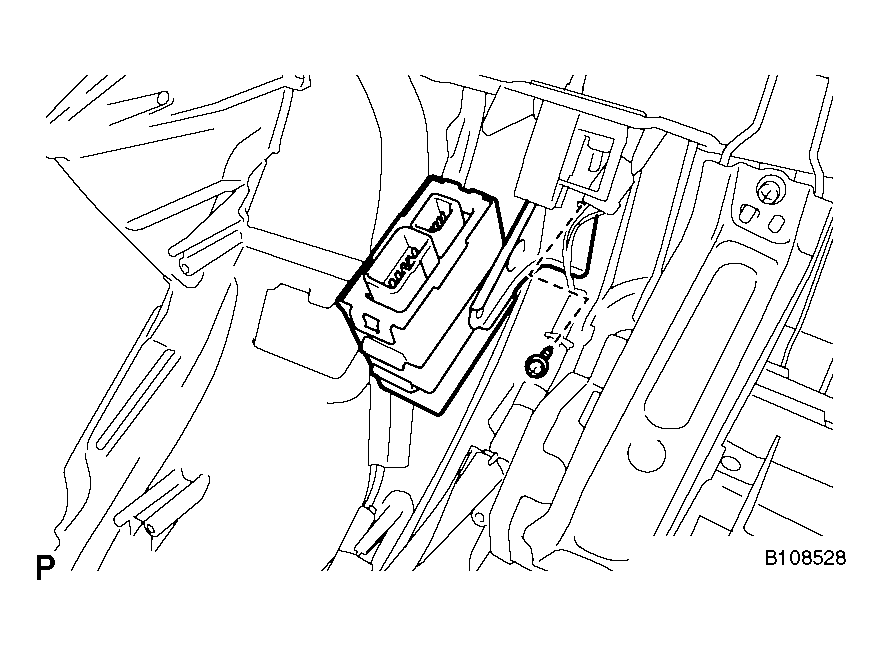

      Fig 11: Identifying Windshield Wiper Relay Assembly (W/ Rain Sensor)
      G04116180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NETWORK GATEWAY ECU
    1. Remove the screw < C > and the network gateway ECU.

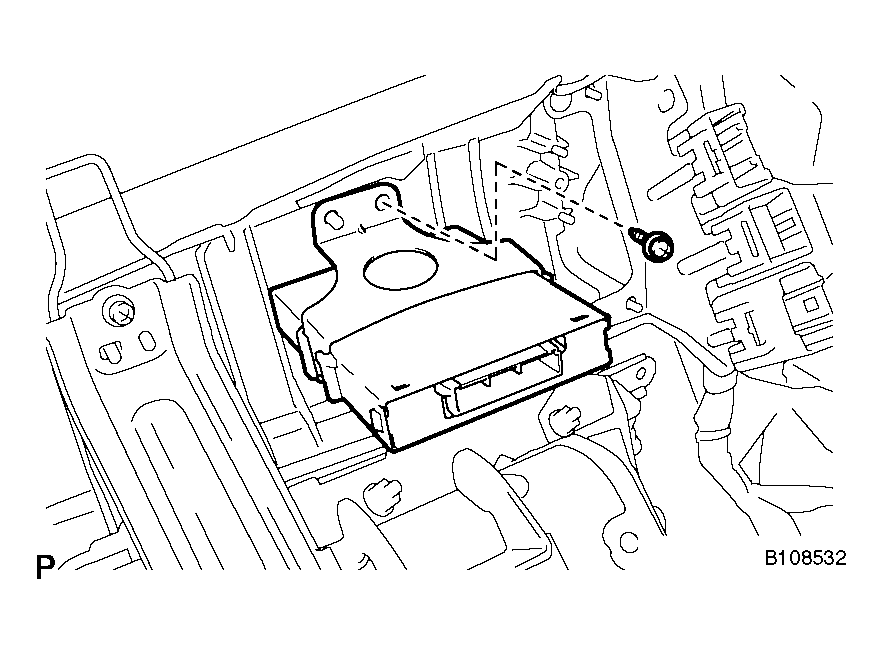

      Fig 12: Identifying Network Gateway ECU
      G04116181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

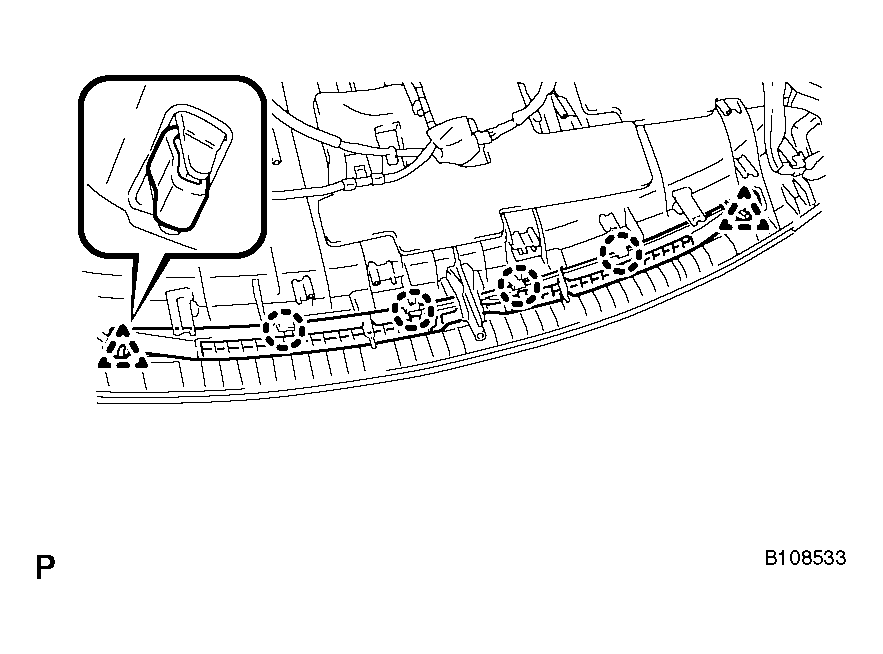

  21. REMOVE DEFROSTER NOZZLE NO. 1 GARNISH
    1. Disengage the 2 clips and 4 claws then remove the defroster nozzle No. 1 garnish.
      Fig 13: Identifying Defroster Nozzle No. 1 Garnish
      G04116182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE INSTRUMENT PANEL BRACKET SUB-ASSEMBLY CENTER
    1. Remove the screw < C > and the instrument panel bracket sub-assembly center.

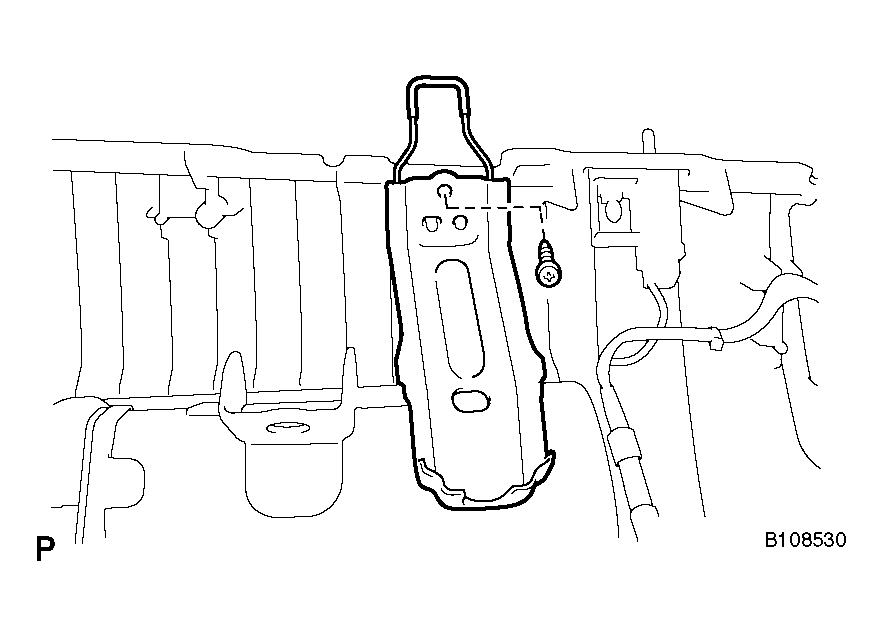

      Fig 14: Identifying Instrument Panel Bracket Sub-Assembly Center
      G04116183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE GLOVE BOX LIGHT ASSEMBLY
    1. Disconnect the connector.
    2. Disengage the 2 claws and remove the glove box light assembly.

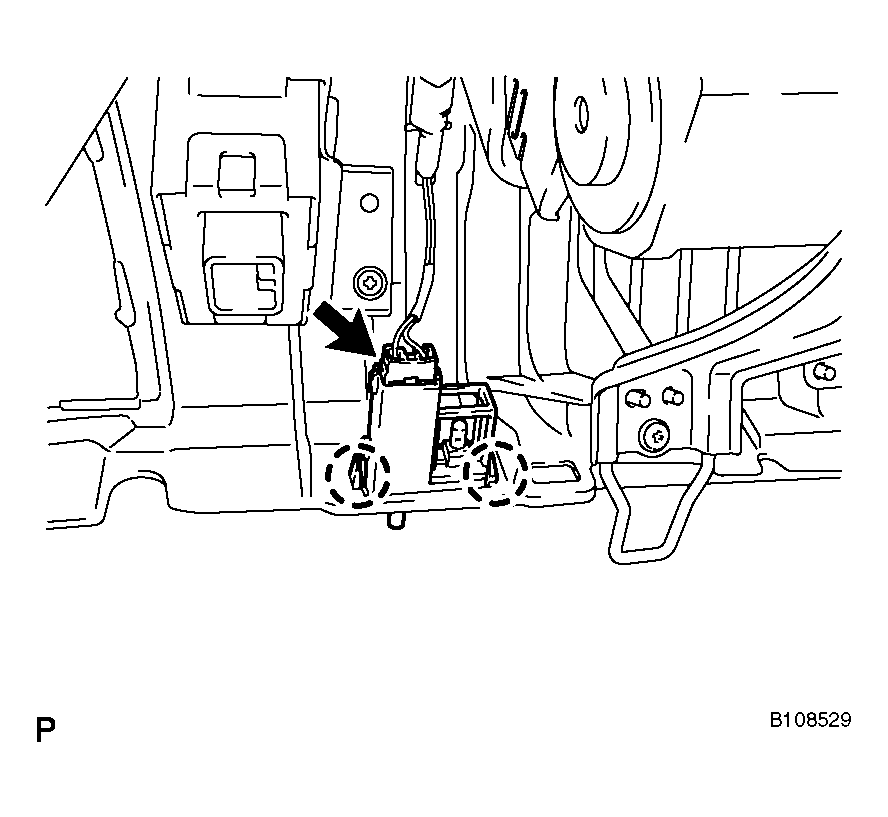

      Fig 15: Identifying Glove Box Light Assembly
      G04116184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE NO. 2 RADIO ANTENNA CORD (w/o Navigation System) (See step 33 in  REMOVAL  )
  25. REMOVE NO. 2 RADIO ANTENNA CORD (w/ Navigation System) (See step 34 in  REMOVAL  )
  26. REMOVE INSTRUMENT PANEL NO. 2 WIRE
    1. Remove the 2 screws.
    2. Disengage the 18 clamps and remove the instrument panel No. 2 wire.

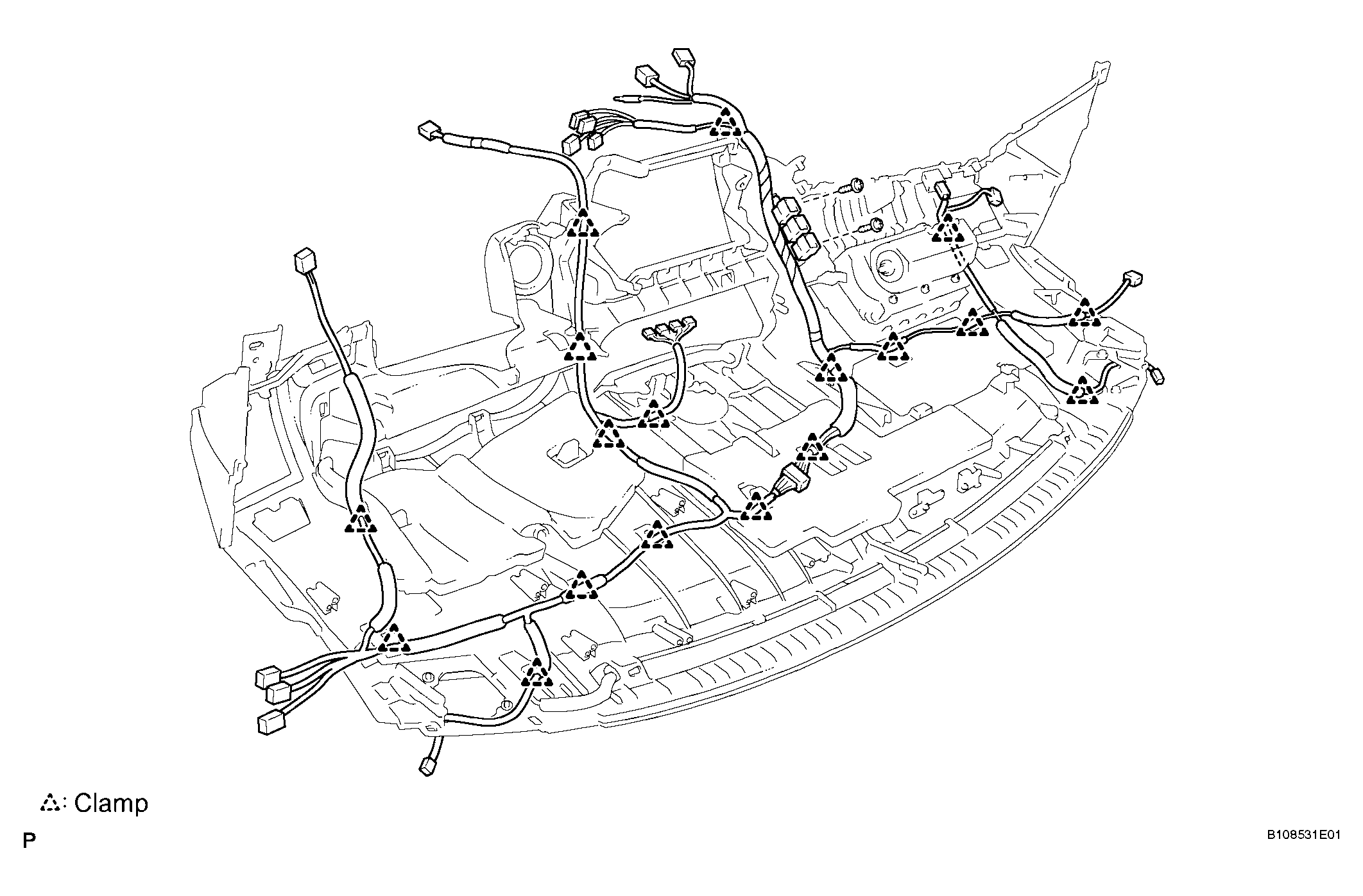

      Fig 16: Identifying Instrument Panel No. 2 Wire
      G04116185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
    1. Remove the automatic light control sensor.
      NOTE: Do not pry the automatic light control sensor off from the upper position.
    Fig 17: Identifying Automatic Light Control Sensor
    G04116186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See  REMOVAL  )
