License Plate Light Assembly: Installation

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY
   1. Install the license plate light assembly with the 2 claws.
   2. Connect the connector.
   Fig 1: Identifying License Plate Light Assembly With Claws

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. INSTALL LUGGAGE COMPARTMENT DOOR GARNISH ASSEMBLY
   1. Install the luggage compartment door garnish assembly with the 5 clips.
   2. Install the 3 nuts.
3. INSTALL REAR LIGHT ASSEMBLY LH (See  REASSEMBLY   )
4. INSTALL REAR LIGHT ASSEMBLY RH
5. INSTALL TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) (See  INSTALLATION  )
6. INSTALL LUGGAGE KEY ELECTRICAL SWITCH
7. INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT
8. INSTALL LUGGAGE COMPARTMENT DOOR COVER
9. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See  REASSEMBLY  )
10. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE (See  REASSEMBLY  )
11. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

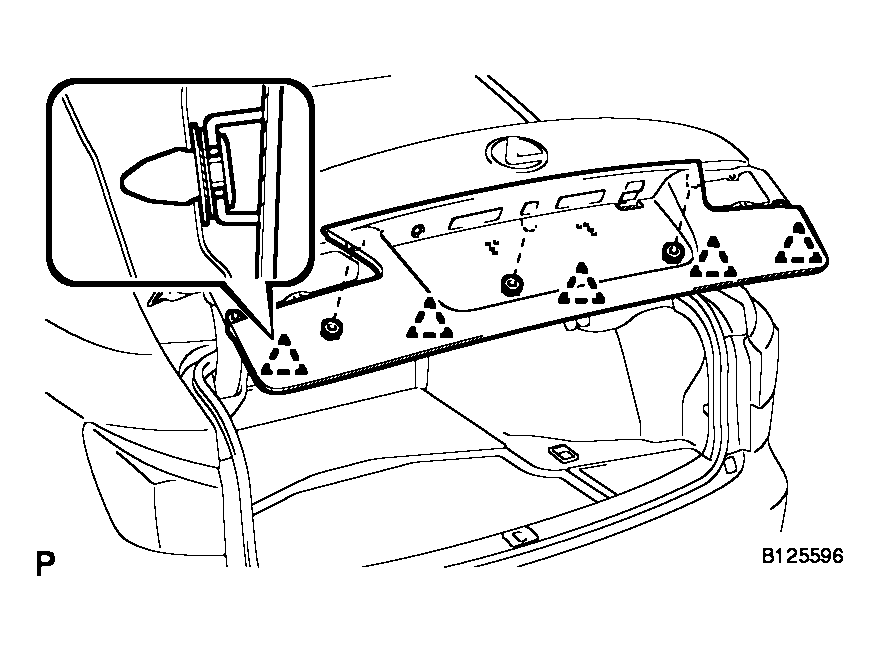

Fig 2: Identifying Luggage Compartment Door Garnish Assembly With Clips

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
