Rear Combination Light Assembly: Installation

  1. INSTALL REAR LIGHT ASSEMBLY
    1. Install the rear light assembly with the 3 nuts.
    2. Connect the connector.
    Fig 1: Identifying Rear Light Assembly With Nuts
    G04049561Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
  3. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See  REASSEMBLY  )
  4. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE (See  REASSEMBLY  )
  5. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
  6. INSTALL REAR COMBINATION LIGHT ASSEMBLY
    1. Install the rear combination light assembly with the clip and pin.
    2. Install the 3 nuts.

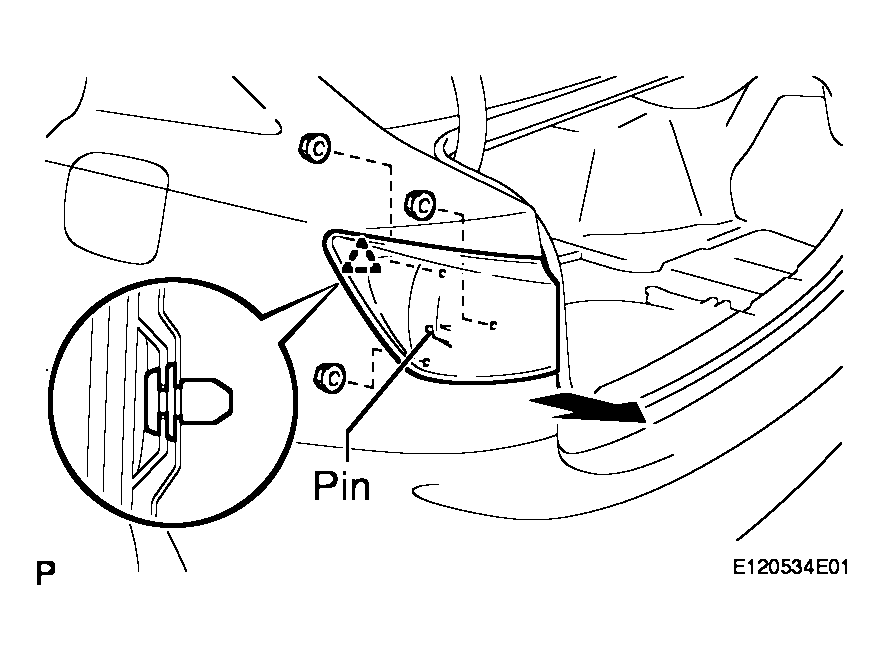

      Fig 2: Identifying Rear Combination Light Assembly With Clip And Pin
      G04049562Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    3. Connect the connector.
  7. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
  8. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
  9. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
  10. INSTALL ROPE HOOK
  11. INSTALL NO. 2 ROOM LIGHT ASSEMBLY
  12. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
  13. INSTALL ROPE HOOK ASSEMBLY
  14. INSTALL DECK SIDE TRIM BOX RH
  15. INSTALL DECK SIDE TRIM BOX LH
    Fig 3: Identifying Connector
    G04049563Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  16. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER
