Parking Brake Lever: Installation

1. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY
   1. Pass the No. 1 parking brake cable assembly through the parking brake lever and hold the cable with the clip.
   2. Pass the parking brake cable through the lever guide. Temporarily tighten the No. 1 wire adjusting nut and lock nut.
      Fig 1: Identifying No. 1 Wire Adjusting Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Fully tighten the No. 1 wire adjusting nut and lock nut when adjusting the parking brake lever free play.

   3. Fully bend the parking brake lever claw.
   4. Install the No. 1 parking brake cable assembly through the floor hole.
   5. Install the No. 1 parking brake cable assembly with the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

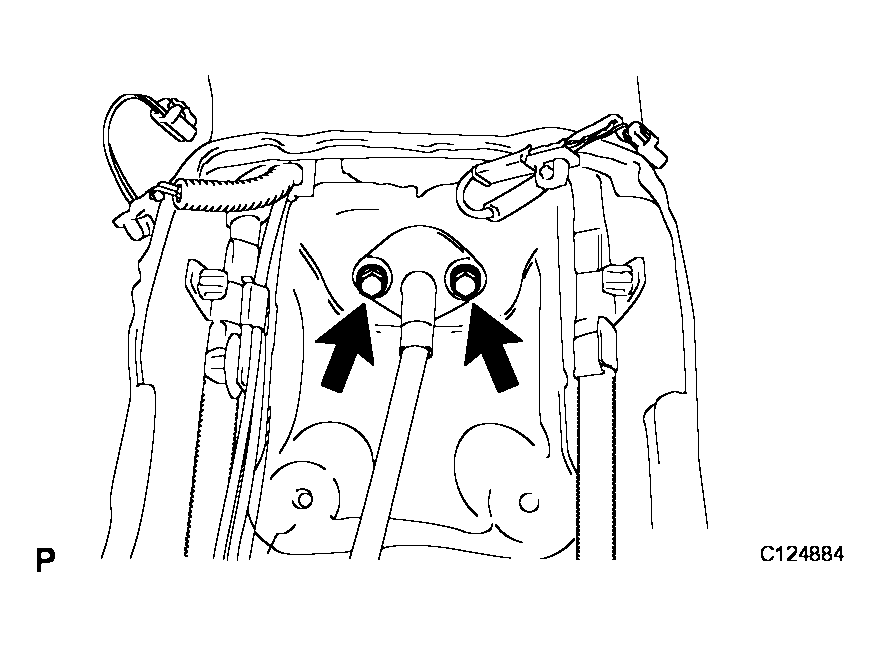

      Fig 2: Installing No. 1 Parking Brake Cable Assembly With Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. Install the parking brake lever with the 2 bolts.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      Fig 3: Installing Parking Brake Lever With Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Connect the parking brake switch connector.

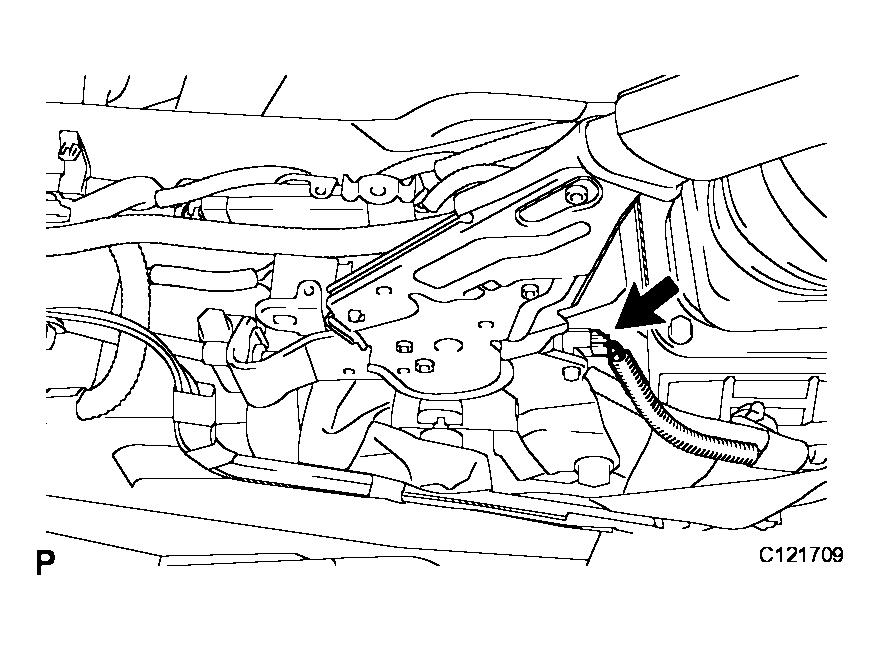

      Fig 4: Connecting Parking Brake Switch Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   8. Install the parking brake equalizer to the No. 1 parking brake cable assembly.
      Fig 5: Installing Parking Brake Equalizer To No. 1 Parking Brake Cable Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   9. Slide the rubber boot back as shown in Fig 6 .
      Fig 6: Sliding Rubber Boot Back

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   10. Connect the 2 No. 2 parking brake cable assemblies to the parking brake equalizer.
   11. Install the parking brake No. 2 and No. 3 cable assemblies with the 2 bolts.

       Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

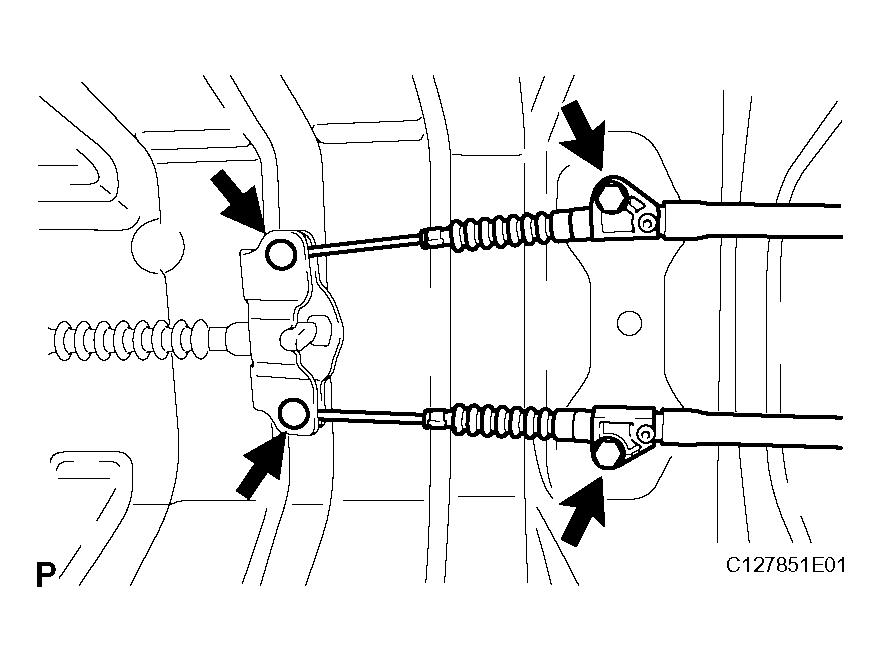

       Fig 7: Installing Parking Brake Cable Assemblies

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   12. Using needle-nose pliers, install the parking brake return with damper spring.
2. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (See  INSTALLATION  )
3. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE (See  INSTALLATION  )
4. INSTALL OUTSIDE AIR GUIDE PLATE (See Step 4 in  INSTALLATION  )
5. INSTALL NO. 1 FRONT FLOOR HEAT INSULATOR (See Step 3 in  INSTALLATION  )
   Fig 8: Identifying Parking Brake Return With Damper Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL FRONT EXHAUST PIPE ASSEMBLY (See  INSTALLATION  )
7. INSTALL OXYGEN SENSOR (See  INSTALLATION  )
8. INSTALL FRONT CENTER FLOOR BRACE (See  INSTALLATION  )
9. INSTALL NO. 1 REAR FLOOR PANEL BRACE (See  INSTALLATION  )
10. INSTALL FRONT FLOOR REAR UPPER SUB PANEL SUB-ASSEMBLY
    1. Install the front floor rear upper sub panel with the 4 bolts.

       Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

    2. Engage the 6 clamps.
11. INSTALL CENTER AIRBAG SENSOR ASSEMBLY (See  REMOVAL  )
12. INSTALL CONSOLE BOX (See Step 42 in  INSTALLATION  )
    Fig 9: Locating Clamps & Retaining Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See Step 43 in  INSTALLATION  )
14. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See Step 44 in  INSTALLATION  )
15. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (See Step 45 in  INSTALLATION  )
16. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (See Step 46 in  INSTALLATION  )
17. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
18. INSTALL FRONT DOOR OPENING TRIM COVER LH (See Step 86 in  INSTALLATION  )
19. INSTALL CENTER PILLAR GARNISH LOWER LH (See Step 32 in  INSTALLATION  )
20. INSTALL REAR DOOR SCUFF PLATE LH (See Step 37 in  INSTALLATION  )
21. INSTALL FRONT DOOR SCUFF PLATE LH (See Step 88 or 90 in  INSTALLATION  )
22. INSTALL FRONT SEAT OUTER BELT ASSEMBLY

    HINT:

    (See INSTALLATION ).

23. INSTALL REAR SEAT CUSHION ASSEMBLY (See Step 4 in  INSTALLATION  )
24. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)

    HINT:

    (See INSTALLATION )

25. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)

    HINT:

    (See INSTALLATION )

26. INSPECT PARKING BRAKE LEVER TRAVEL (See  ADJUSTMENT   )
27. ADJUST PARKING BRAKE LEVER TRAVEL (See  ADJUSTMENT   )
28. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See Step 93 in  INSTALLATION  )
29. PERFORM INITIALIZATION

    HINT:

    (See INITIALIZATION )

30. INSPECT SRS WARNING LIGHT

HINT:

(See PROBLEM SYMPTOMS TABLE ).
