REAR PROPELLER SHAFT ASSEMBLY (for 4GR-FSE): Installation

1. Remove the SST from the transmission.

   SST 09325-40010

2. Insert the yoke of the intermediate shaft into the transmission.

   HINT:

   Be careful not to damage the oil seal.

   Fig 1: Removing SST From Transmission

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 center support bearing washers and center support bearing. (for automatic transmission)
4. Install the 2 center support bearing washers, center support bearing and 2 center support bearing dampers. (for manual transmission)
5. Temporarily tighten the 2 bolts.
   Fig 2: Installing Center Support Bearing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Align the matchmarks on the propeller shaft flange and differential companion flange, and connect the shaft with the 4 bolts, washers and nuts.

   Torque: 74 N*m (750 kgf*cm, 54 ft.*lbf)

   Fig 3: Connecting Shaft With Bolts, Washers And Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Adjust the dimension between the edge surface of the center support bearing and the edge surface of the cushion to 11.5 to 13.5 mm (0.4528 to 0.5315 in.) as shown in Fig 4.
   Fig 4: Adjusting Dimension Between Edge Surface Of Center Support Bearing & Edge Surface Of Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Check that the center line of the bracket is perpendicular to the shaft axial direction.
   Fig 5: Checking Center Line Of Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Tighten the 2 bolts.

Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

1. Stabilize the propeller shaft and differential.
   1. Turn the propeller shaft several times by hand to stabilize the center support bearing.
2. Check both the No. 2 and No. 3 joint angles.
   1. Using SST, measure the installation angle of the intermediate shaft and propeller shaft.

      SST 09370-50010

      HINT:

      The SST should be set directly on the bottom of the shaft.

      Fig 6: Installing Center Support Bearing Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST , measure the installation angle of the differential.
      Fig 7: Measuring Installation Angle Of Differential Using SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09370-50010

      HINT:

      Measure the installation angle by placing the SST in the positions shown in Fig 7.

   3. Calculate the No. 2 joint angle.

      No. 2 joint angle:

      A - B = -1°13' to -0°13' (2WD)

      A - B = -0°53' to 0°07' (4WD)

      A:

      Intermediate shaft installation angle

      B:

      Propeller shaft installation angle

   4. Calculate the No. 3 joint angle.

      No. 3 joint angle:

      B - C = 1°30' to 2°30' (2WD)

      B - C = 1°26' to 2°26' (4WD)

      B:

      Propeller shaft installation angle

      C:

      Differential installation angle

      HINT:

      If the measured angle is not within the specified range, adjust it with the center support bearing washers.

3. Adjust the No. 2 joint angle.
   1. Select the center support bearing washers for adjustment.

      Adjustment washer (for manual transmission)

      ADJUSTMENT WASHER (FOR MANUAL TRANSMISSION) THICKNESS SPECIFICATION



      Thickness mm (in)
      2 (0.078)
      4.5 (0.1772)
      6.5 (0.2559)
      9.0 (0.3543)
      11 (0.4331)

      Adjustment washer (for automatic transmission)

      ADJUSTMENT WASHER (FOR AUTOMATIC TRANSMISSION) THICKNESS SPECIFICATION



      Thickness mm (in)
      2 (0.078)
      4.5 (0.1772)
      6.5 (0.2559)
      9.0 (0.3543)
      11 (0.4331)
      13.5 (0.5315)

      NOTE: The 2 washers should be the same thickness.

1. Install the front No. 1 floor heat insulator with the 4 nuts.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

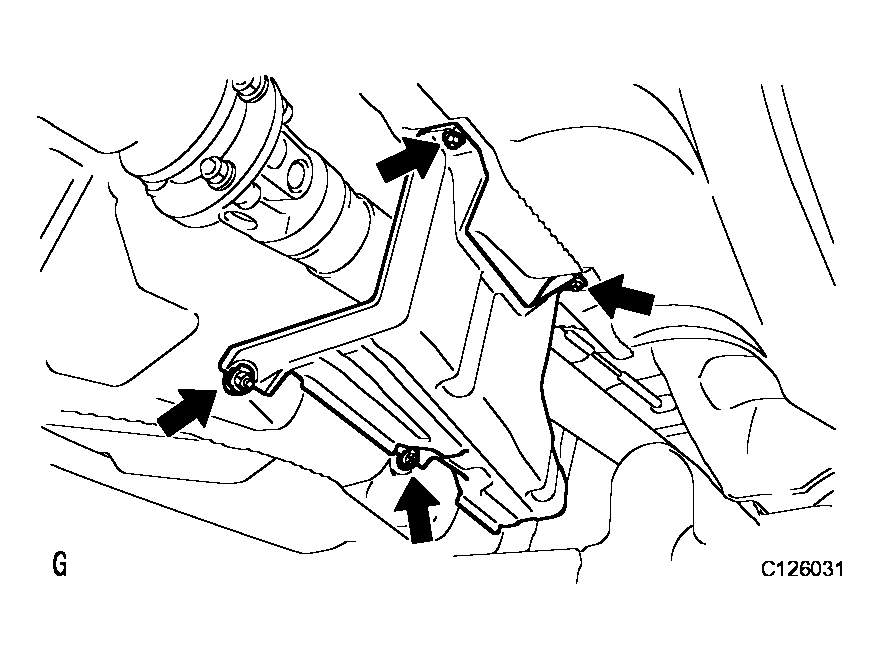

Fig 8: Installing Front No. 1 Floor Heat Insulator With Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the outside air guide plate RH with the 4 nuts.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

(See INSTALLATION )
