Luggage Compartment Door Opener Inner Switch: Removal
- REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See Step 50 in REMOVAL
)
- REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See Step 52 in REMOVAL
)
- REMOVE FRONT DOOR OPENING TRIM COVER LH (See Step 27 in REMOVAL
)
- REMOVE SIDE INSTRUMENT PANEL LH (See Step 28 in REMOVAL
)
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See Step 30 in REMOVAL
)
- REMOVE LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

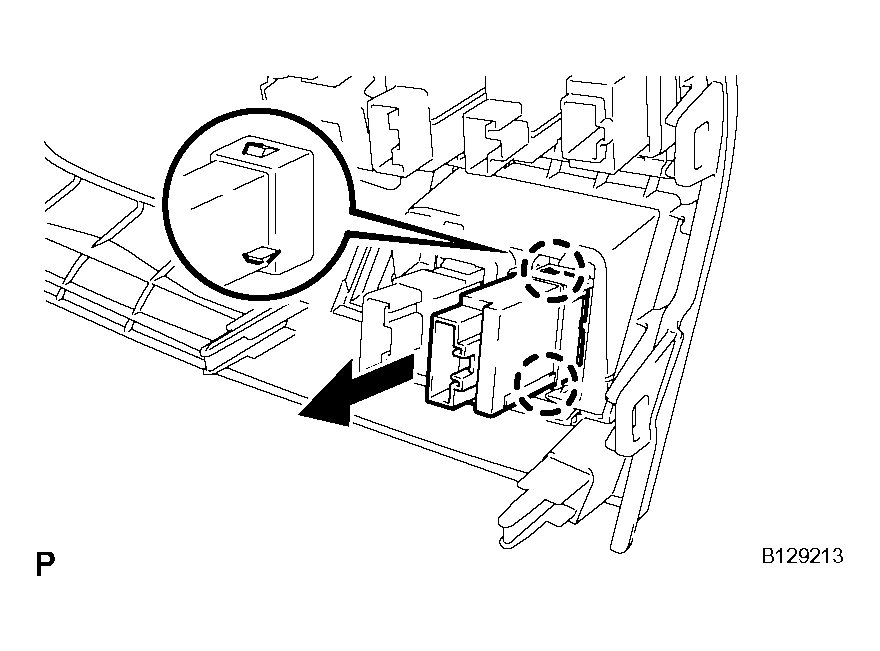

- Disengage the 2 claws and remove the luggage compartment door opener inner switch.
