Rear Sunshade Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE REAR SEAT CUSHION ASSEMBLY

    Remove the rear seat cushion assembly. (See REMOVAL )

  3. REMOVE REAR SEAT HEADREST ASSEMBLY LH

    Remove rear seat headrest assembly. (See REMOVAL )

  4. REMOVE REAR SEAT HEADREST ASSEMBLY RH

    Remove the rear seat headrest assembly. (See REMOVAL )

  5. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER

    Remove rear seat headrest assembly. (See REMOVAL )

  6. REMOVE REAR SEATBACK ASSEMBLY

    Remove the rear seatback assembly. (See REMOVAL )

  7. REMOVE REAR DOOR SCUFF PLATE LH

    Remove the rear door scuff plate LH. (See REMOVAL  )

  8. REMOVE REAR DOOR SCUFF PLATE RH

    Remove the rear door scuff plate RH. (See REMOVAL  )

  9. REMOVE REAR SEAT SIDE GARNISH LH

    Remove rear seat side garnish LH. (See REMOVAL  )

  10. REMOVE REAR SEAT SIDE GARNISH RH

    Remove the rear seat side garnish. (See REMOVAL  )

  11. REMOVE ROOF SIDE GARNISH INNER LH

    Remove roof side garnish inner LH. (See REMOVAL  )

  12. REMOVE ROOF SIDE GARNISH INNER RH

    Remove the roof side garnish inner RH. (See REMOVAL  )

  13. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY
    1. Remove the high mounted stop light.
  14. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
    1. Disconnect the connector, and remove the sensor.
  15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Remove the bolt and anchor of the rear seat outer belt.
      Fig 1: Identifying Bolt And Anchor Of Rear Seat Outer Belt
      G04023913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector labeled A.
    3. Remove the bolt and seat belt labeled B.

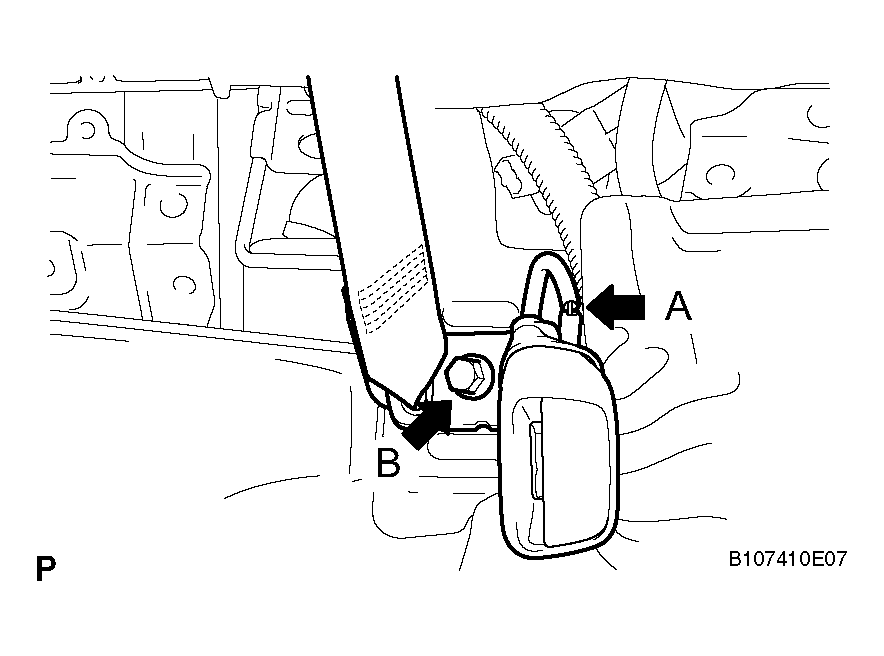

      Fig 2: Identifying Bolt And Seat Belt Labeled B
      G04023914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a moulding remover, detach the 4 claws and remove belt guide LH.

      HINT:

      Use the same procedure described for the LH side.

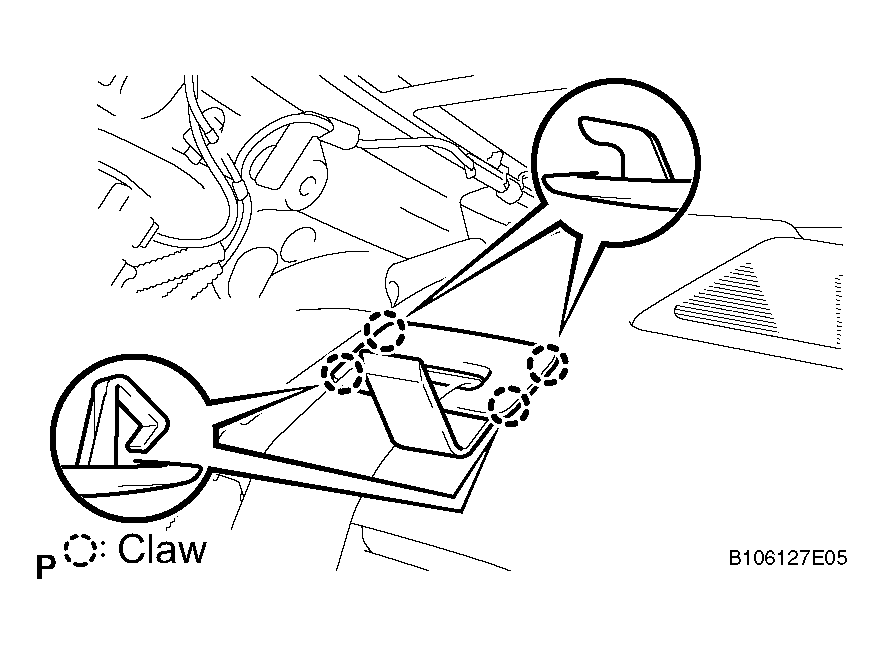

      Fig 3: Identifying Claws And Belt Guide LH
      G04023915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a moulding remover, detach the 4 claws and remove the belt guide center.
      Fig 4: Identifying Claws And Belt Guide Center
      G04023916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Detach the clip and remove the panel.

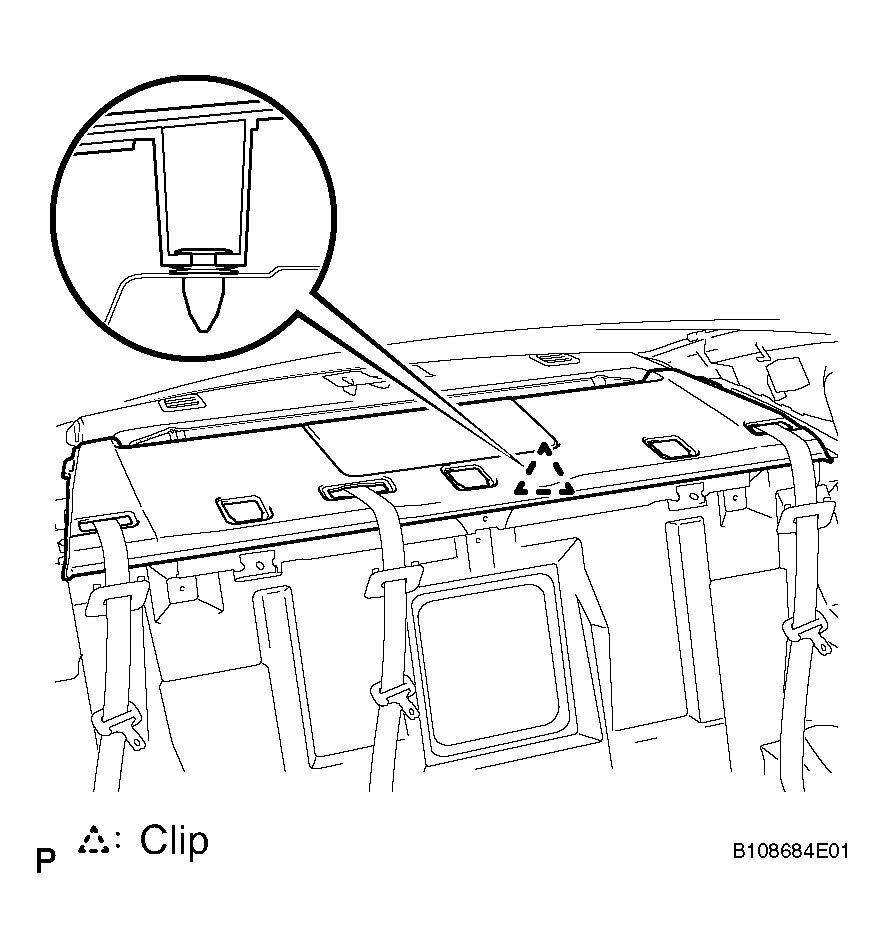

      Fig 5: Identifying Clip And Panel
      G04023917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO.2 PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Detach the 5 claws and 3 clips.
    2. Disconnect the connector and remove the panel.

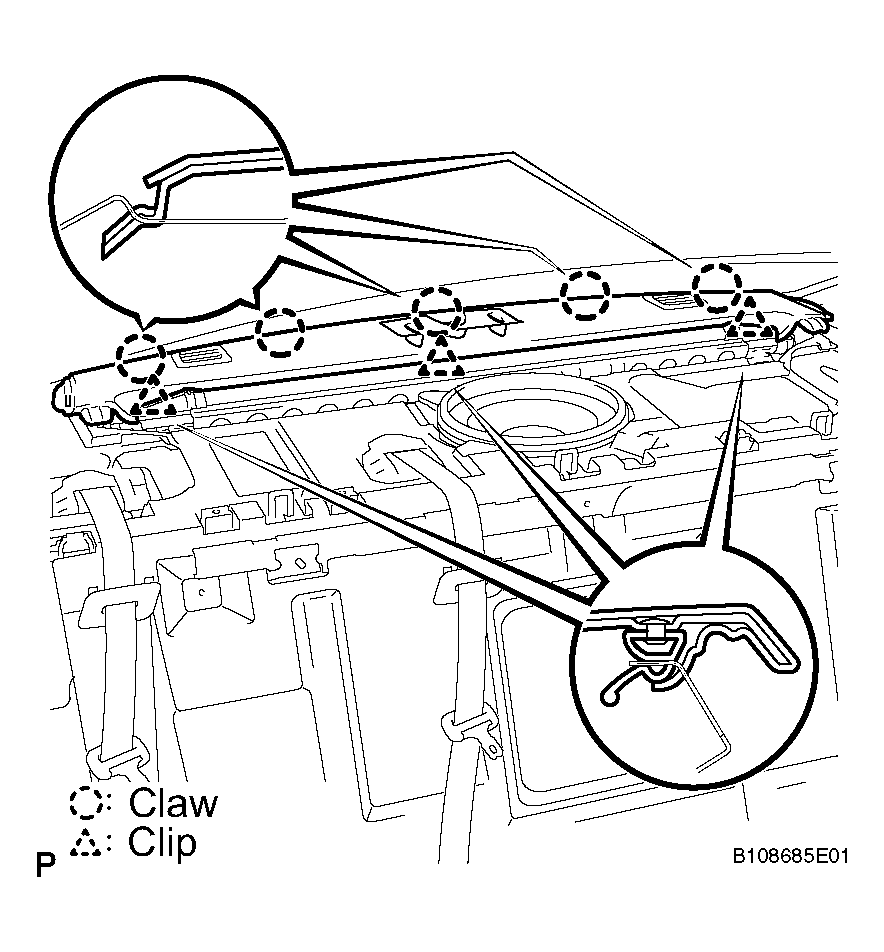

      Fig 6: Identifying Connector And Remove Panel
      G04023918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR WINDOW SHADE ASSEMBLY
    1. Remove the 5 bolts.
    2. Loosen the bolt labeled A, and remove the window shade.
      NOTE: Do not remove the bolt A.

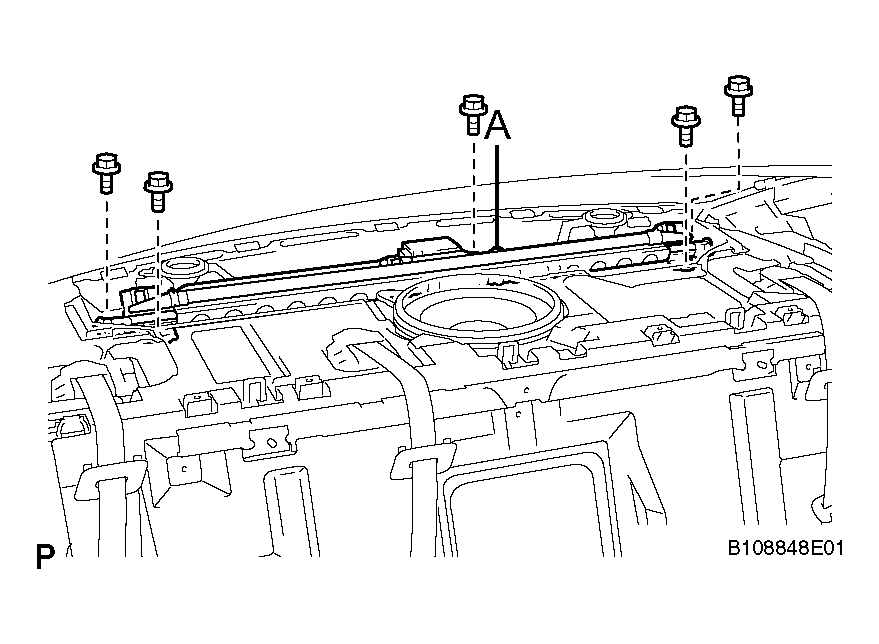

      Fig 7: Loosening Bolt Labeled A And Remove Window Shade
      G04023919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR SUNSHADE RELAY
    1. Using a screwdriver, detach the claw and remove the relay cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws.
    3. Disconnect the connector and remove the relay.
