On-Vehicle Inspection

REMOVE FRONT WHEEL
REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (See REMOVAL )
REMOVE FRONT DISC (See REMOVAL )
INSPECT FRONT AXLE HUB BEARING LOOSENESS
1. Using a dial indicator, check for looseness near the center of the axle hub.
  Maximum: 0.05 mm (0.0020 in.)

  NOTE: Ensure that the dial indicator is set at right angles to the measurement surface.

  If looseness exceeds the maximum, replace the bearing.

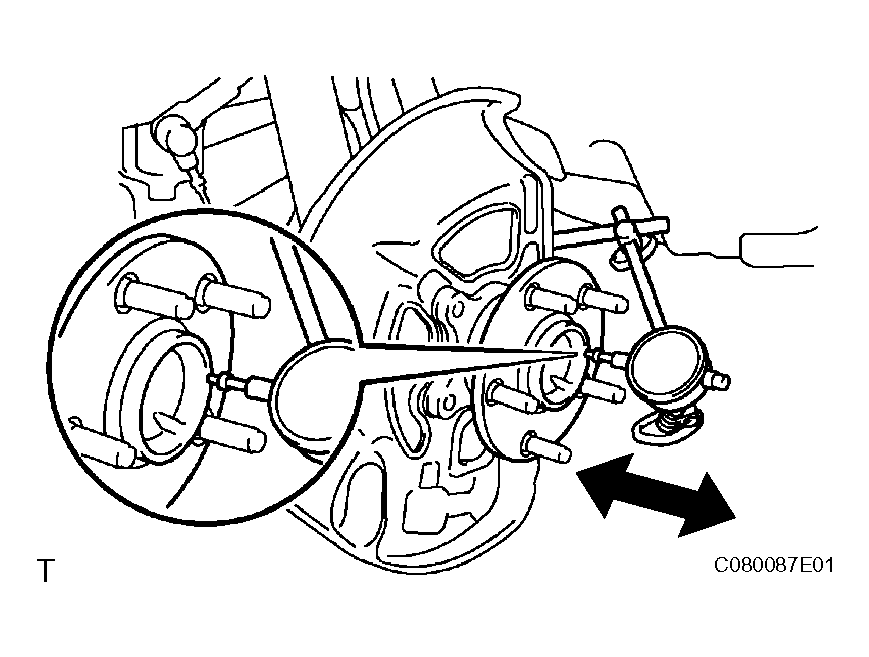

  Fig 1: Identifying Looseness Near Center Of Axle Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FRONT AXLE HUB RUNOUT
1. Using a dial indicator, check for runout on the surface of the axle hub outside the hub bolt.
  Maximum: 0.05 mm (0.0020 in.)

  NOTE: Ensure that the dial indicator is set at right angles to the measurement surface.

  If runout exceeds the maximum, replace the axle hub.

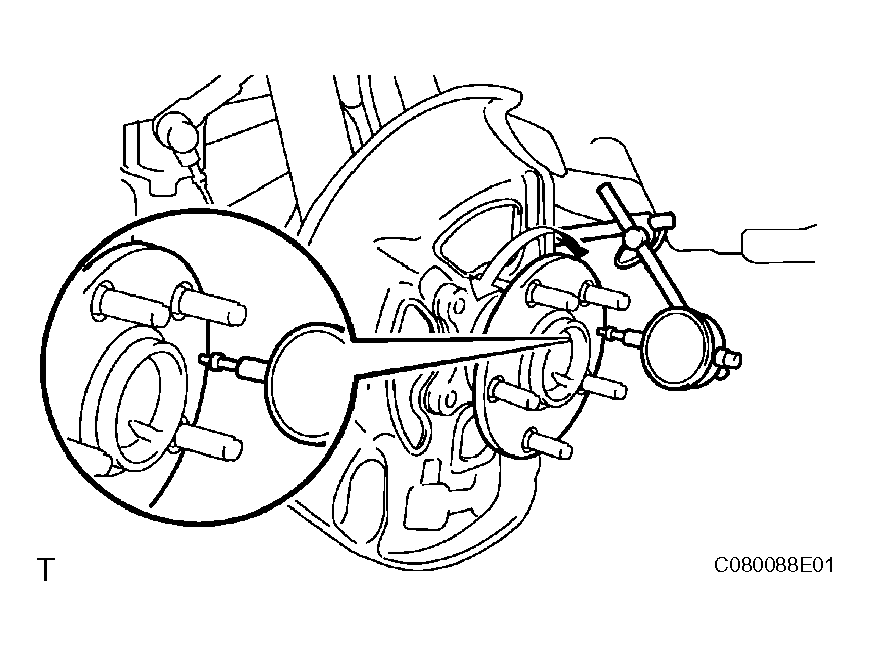

  Fig 2: Identifying Runout On Surface Of Axle Hub Outside Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC (See INSTALLATION )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (See STEERING KNUCKLE )
INSTALL FRONT WHEEL
