FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 3GR-FSE): Installation

INSTALL DISC BRAKE CYLINDER ASSEMBLY LH
1. Install the disc brake cylinder assembly with the 2 bolts.
  Torque: 34 N*m (350 kgf*cm, 25 ft.*lbf)

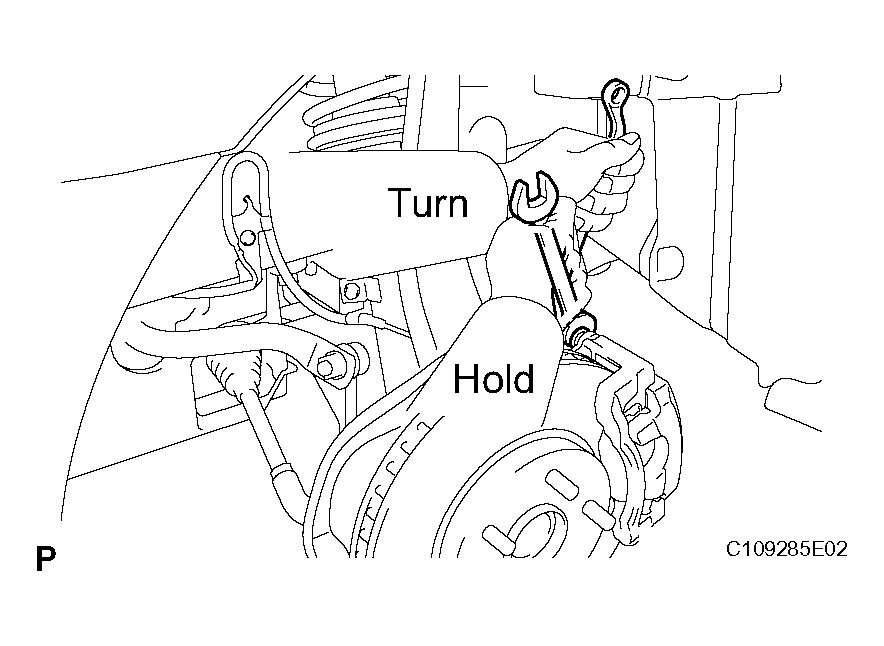

  Fig 1: Installing Disc Brake Cylinder Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the flexible hose with the union bolt and a new gasket.
  Torque: 30 N*m (310 kgf*cm, 22 ft.*lbf)

  NOTE: Install the flexible hose lock securely in the lock hole in the disc brake cylinder.

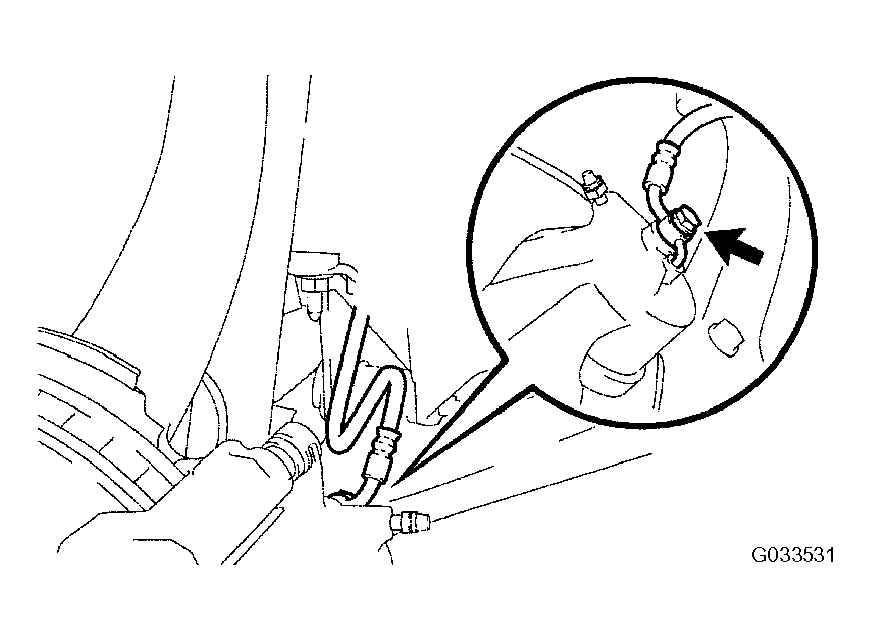

  Fig 2: Installing Flexible Hose Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD RESERVOIR WITH BRAKE FLUID (See BRAKE FLUID (W/ VSC) )
BLEED BRAKE LINE (See BLEEDING )
INSPECT FLUID BRAKE FLUID LEVEL IN RESERVOIR (See BRAKE FLUID (W/ ECB) )
INSPECT BRAKE FLUID LEAKAGE
CHECK AND CLEAR DTC
(See DTC CHECK / CLEAR )
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
